Product Description

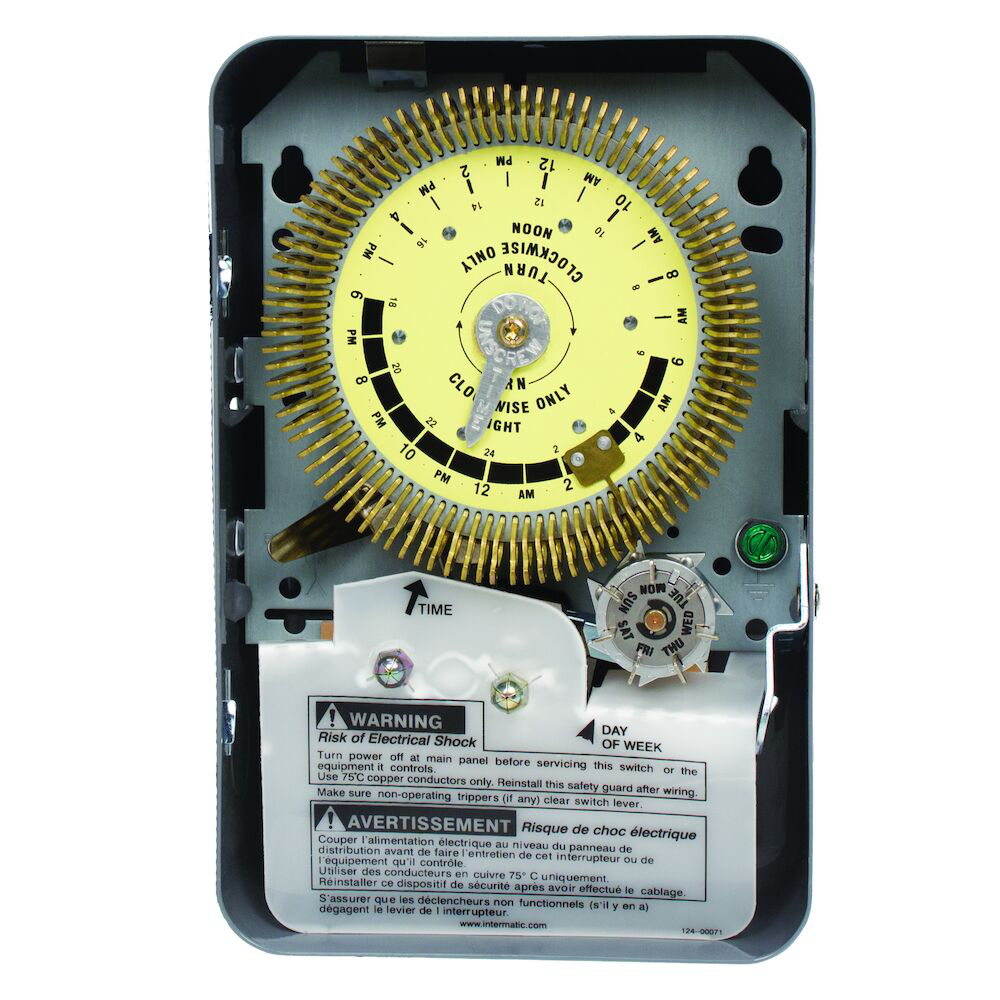

The Intermatic T1975EHD is a heavy-duty timer switch designed for reliable performance in demanding environments. This mechanical timer operates at four hundred eighty volts and features a robust design with a metal enclosure to withstand harsh conditions. It includes permanent ON/OFF trippers attached to the metal dial to prevent loss. The timer allows for up to ninety-six operations daily with fifteen-minute interval settings.
- Encapsulated motor for protection against dust and debris
- Capable of handling up to twenty amps with a single pole SPDT contact form
- Wall mountable design for convenient installation
Product Highlights
This timer is ideal for indoor lighting control and can also be used for pool and spa applications. Its durable construction ensures longevity, making it suitable for various electrical control needs.
Product Information
Standard Information
-
Brand: Intermatic
-
MPN: T1975EHD
Technical Specifications
-
Voltage: 480 VAC
-
Amperage: 20 A
-
Time Setting Range: 15 min to 24 hr
-
Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
-
Horsepower: 1 hp
-
Enclosure Type: NEMA 1
-
Mounting Type: Wall Mount
-
Operating Temperature Range: -40 to 165 degrees F
-
Frequency: 60 Hz
-
Applications: Pool and Spa Control, Indoor Lighting Control
