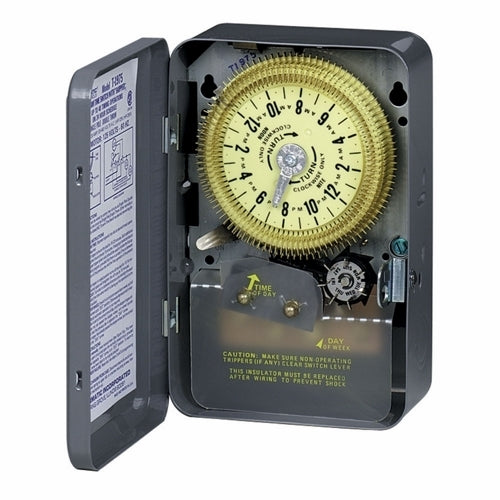

Intermatic T1975 24-Hour Mechanical Time Switch with Skip-A-Day, 125 VAC, SPDT, NEMA 1

Product Description

The Intermatic T1975 is a robust electromechanical time switch designed for precision and reliability. It is engineered to offer flexible scheduling capabilities, accommodating 15-minute intervals and allowing up to 96 operations (48 ON/48 OFF) every 24 hours. This timer is well-suited for a variety of applications including control of lighting, pumps, fans, and other machinery.

• Offers detailed schedule management with 15-minute intervals.
• Includes a skipper wheel feature to omit operations on selected days.
• Captive trippers slide in and out easily for quick adjustments.

Product Highlights

Product Information

Standard Information

• Mounting Type: Wall
• Enclosure Type: NEMA 1

Technical Specifications

• Operating Voltage: 125 VAC
• Current Rating: 20 Amp
• Frequency: 60 Hz
• Power Consumption: 3 Watts
• Operating Temperature Range: -40 to +130 degrees F
• Contact Configuration: SPDT (1 NO/1 NC)
• Dimensions: 7-7/8 in Height x 5-1/8 in Width x 3-7/16 in Depth
• Country of Origin: Mexico
• Warranty: 1 year
