Intermatic T1906 NEMA 1 208 to 277 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch

Intermatic T1906 NEMA 1 208 to 277 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch

Brand: INTERMATIC
SKU: T1906
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days
$328.08
$328.08
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

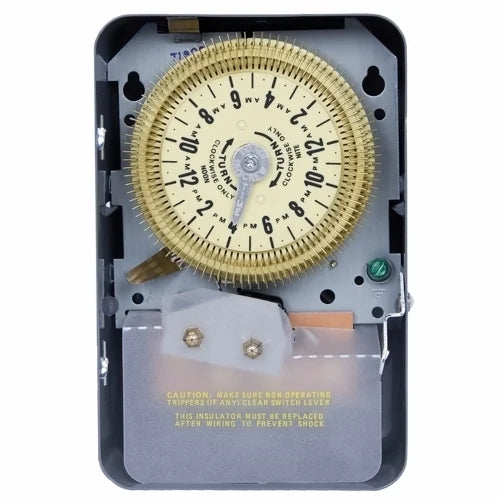

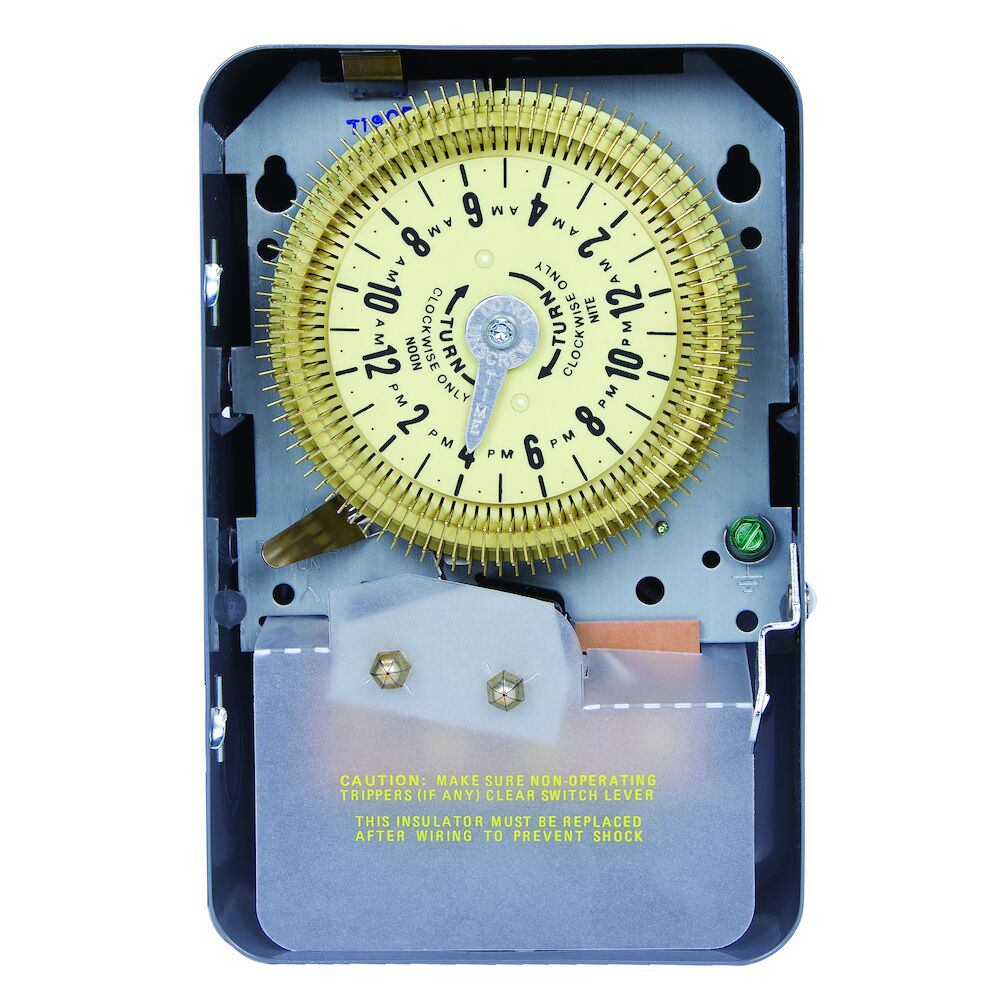

The Intermatic T1906 is an electromechanical time switch designed for 208 to 277 VAC, accommodating loads up to 20 Amps. This timer provides scheduling capabilities with 15-minute intervals, making it suitable for various applications.

  • Controls up to 20 Amps electrical load
  • Features captive trippers for easy and accurate setting
  • Wall mountable with NEMA 1 enclosure

Product Highlights

Ideal for general indoor purposes, the T1906 allows for multiple ON/OFF cycles within a day.

Product Information

Standard Information

  • Brand: Intermatic
  • MPN: T1906

Technical Specifications

  • Voltage: 208-277 VAC
  • Amperage: 20 A
  • Frequency: 60 Hz
  • Wattage: 3 W
  • Dimensions: 7-7/8 inches height x 5-1/8 inches width x 3-7/16 inches depth
  • Contact Type: SPDT
  • Enclosure Type: NEMA 1
  • Operation Temperature: -40 to 130 degrees F
