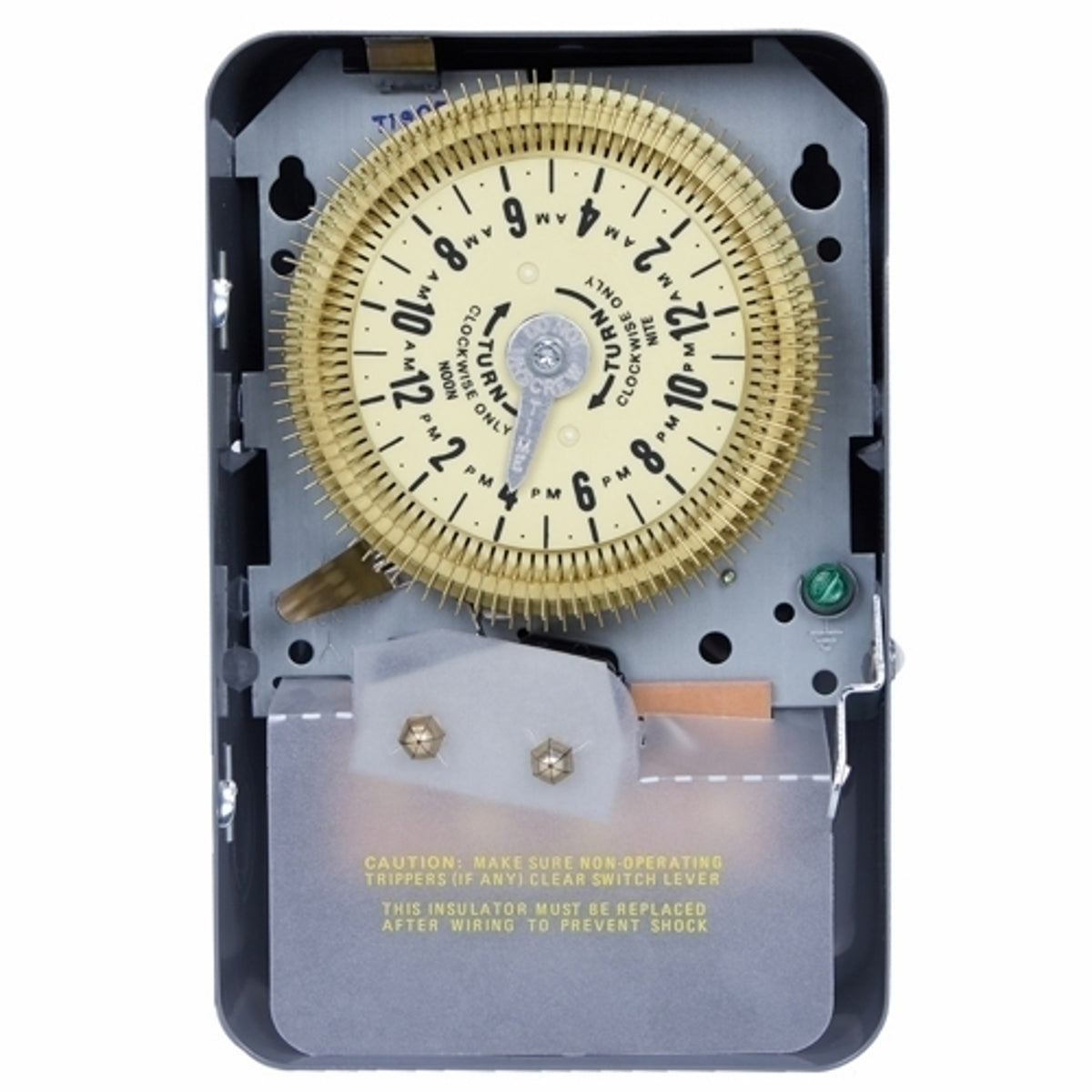

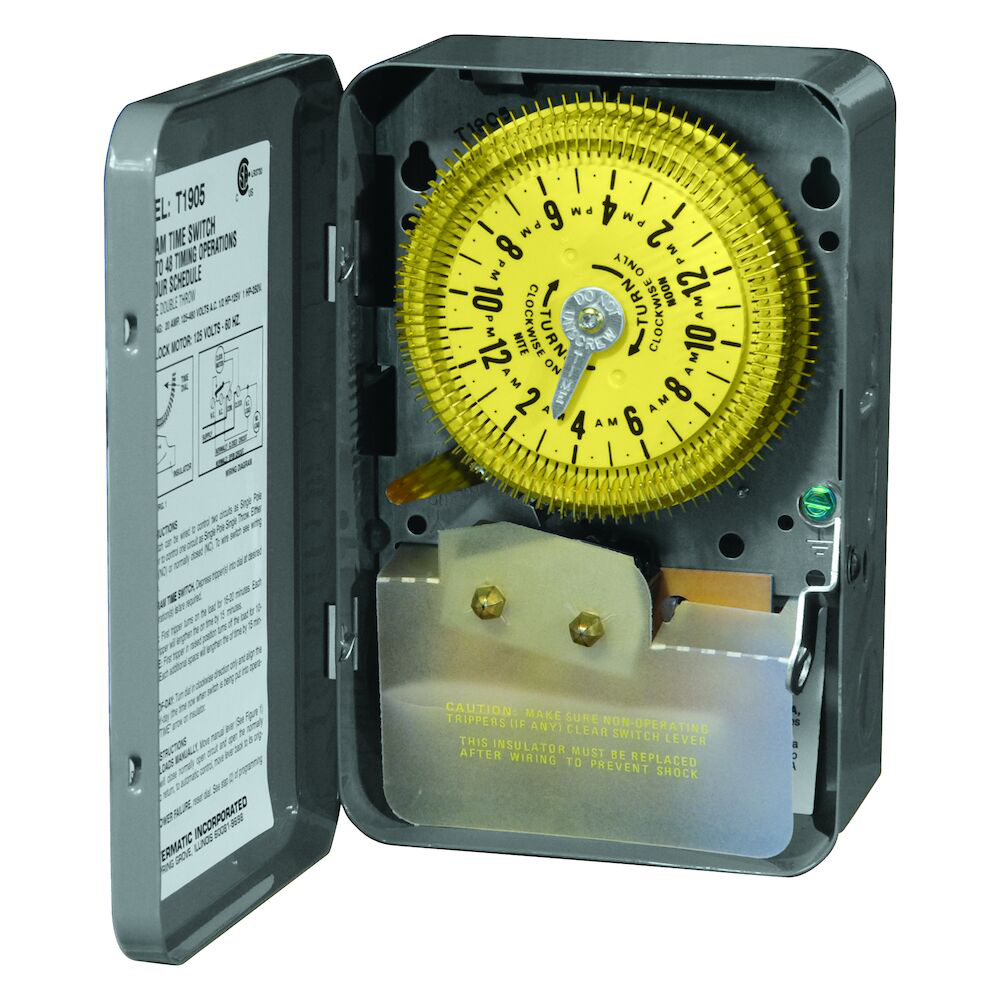

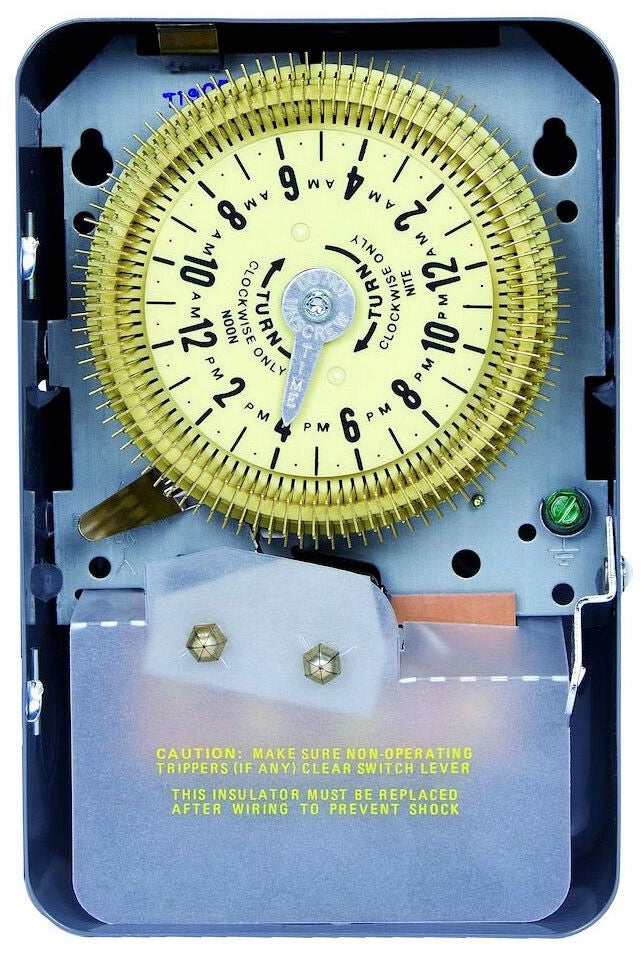

Intermatic T1905E NEMA 1 480 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch

Product Description

The Intermatic T1905E is a NEMA 1, electromechanical time switch designed for controlling electrical loads at 480 volts. This device allows for flexible scheduling with 15-minute intervals and comes with easily adjustable trippers for precise timing settings. It is ideal for indoor applications, capable of managing up to 20 amps of electrical load through its single pole, double throw switching configuration.

• 15-minute interval scheduling
• Equipped with trippers for fast setting adjustments
• Handles up to 20 amp loads

Product Highlights

This timer switch is built for efficiency, providing up to ninety-six operations (forty-eight on/fourty-eight off) within a twenty-four hour span. The device features a durable NEMA 1 enclosure, suitable for indoor lighting control and other timing applications.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: T1905E

Technical Specifications

• Type: Electromechanical
• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Wattage: 3 W
• Operating Temperature: -40 to 130 degrees F
• Number of Poles: 1
• Enclosure Type: NEMA 1
• Wall Mounting: Yes
