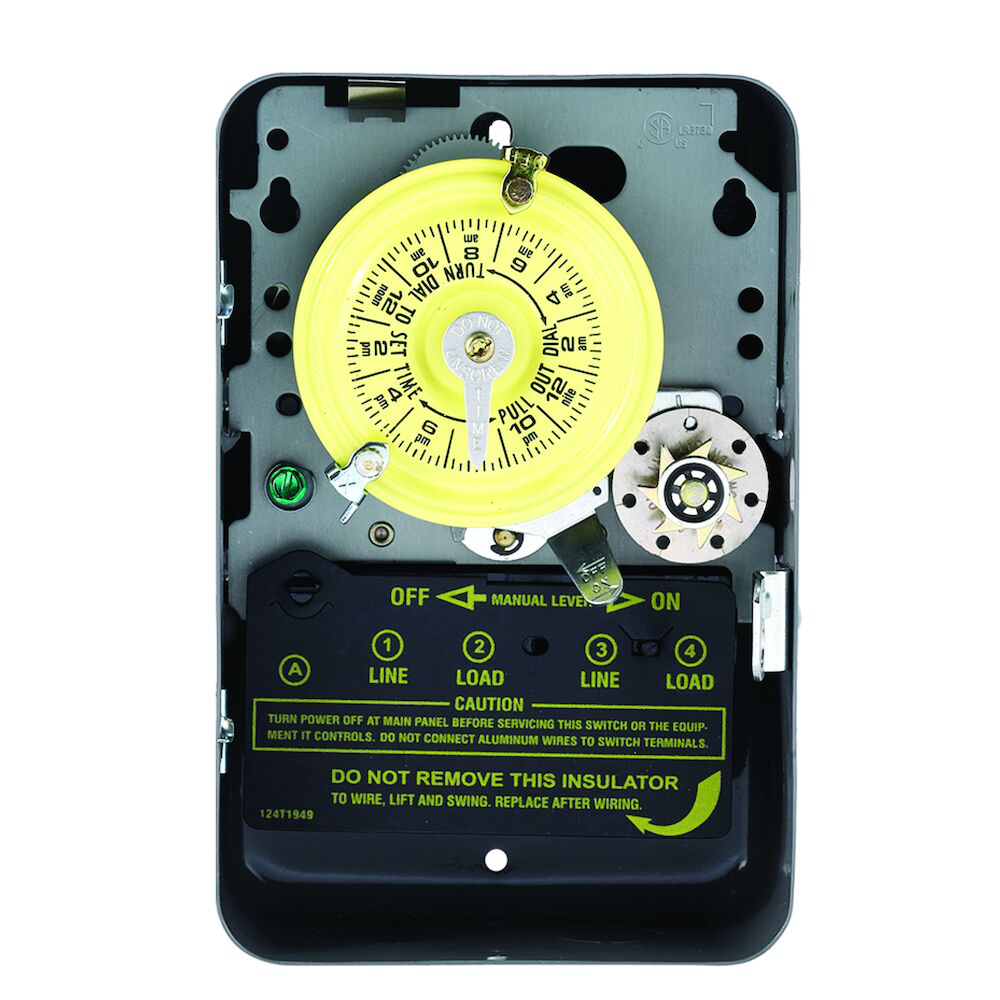

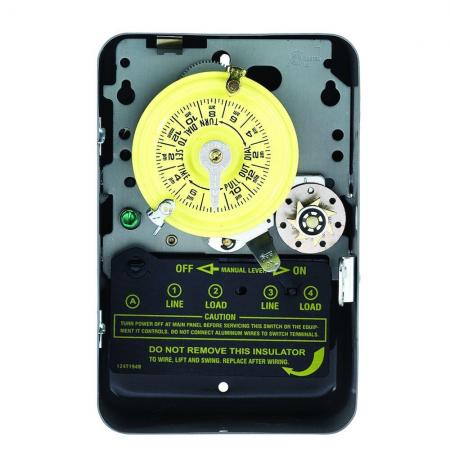

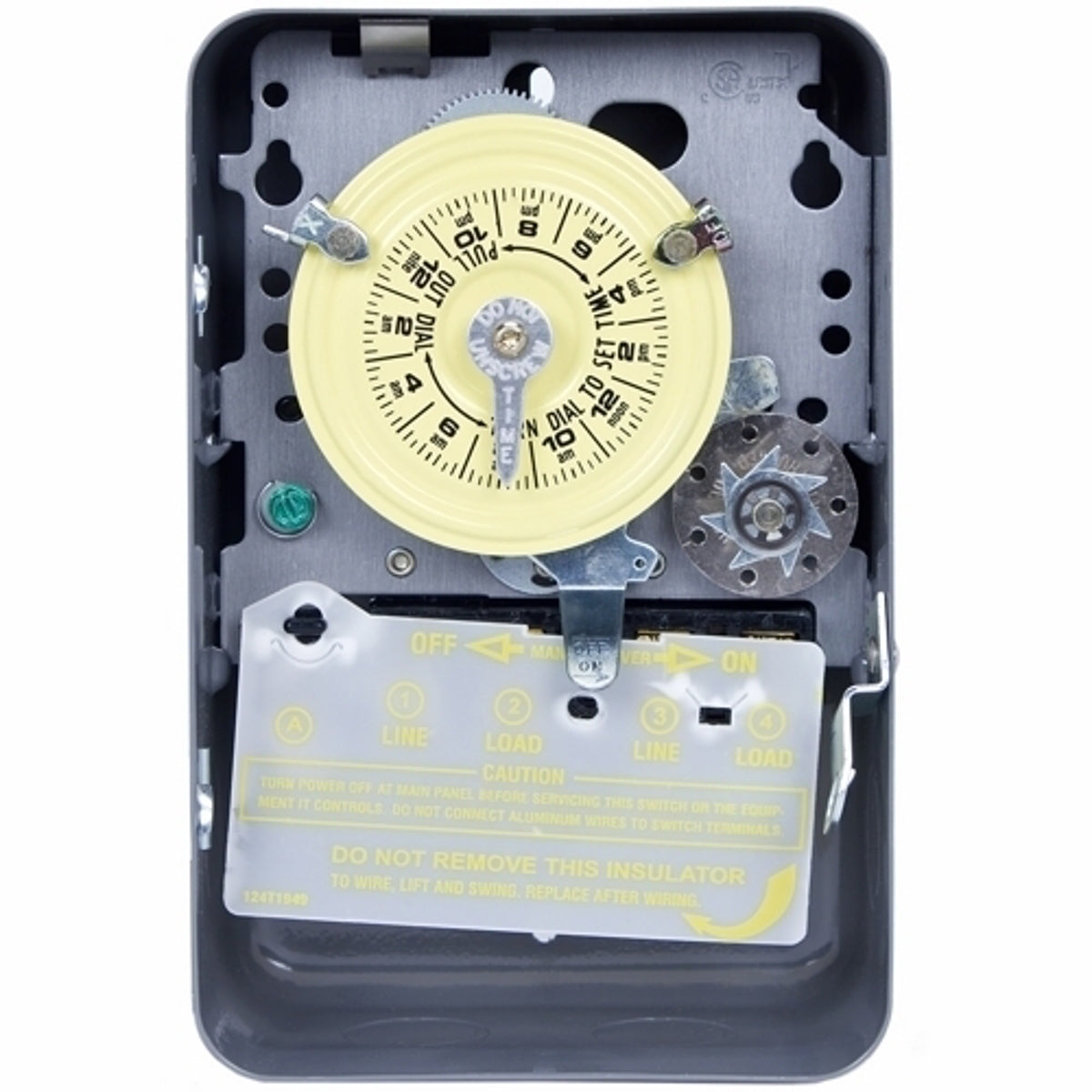

Intermatic T175 NEMA 1 125 VAC 60 Hz 40 Amp SPDT Electromechanical Time Switch

Product Description

The Intermatic T175 is an electromechanical time switch designed to control electrical loads up to forty amps per pole. This time switch can manage up to ten ON/OFF settings daily, allowing for efficient scheduling. It enables users to skip specific days when loads are unnecessary, minimizing energy consumption. Each unit includes one set of ON/OFF trippers and three skipping screws, facilitating easy scheduling adjustments.

• Controls loads up to 40 A per pole
• Direct twelve-hour control for most electrical applications
• Includes one ON and one OFF tripper with three day-skipper screws

Product Highlights

The Intermatic T175 is suitable for various applications, including residential, commercial, and industrial settings. It provides a manual override functionality and accommodates a robust temperature range, ensuring reliability across different environments.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: T175
• Voltage: 125 Volt
• Amperage: 40 Amp @ 120 - 480 VAC
• Action Type: SPDT
• Mounting Type: Wall Mount
• Enclosure Type: NEMA 1
• Operating Temperature: -40 To 130 Degrees F
• Wattage: 3 Watt
