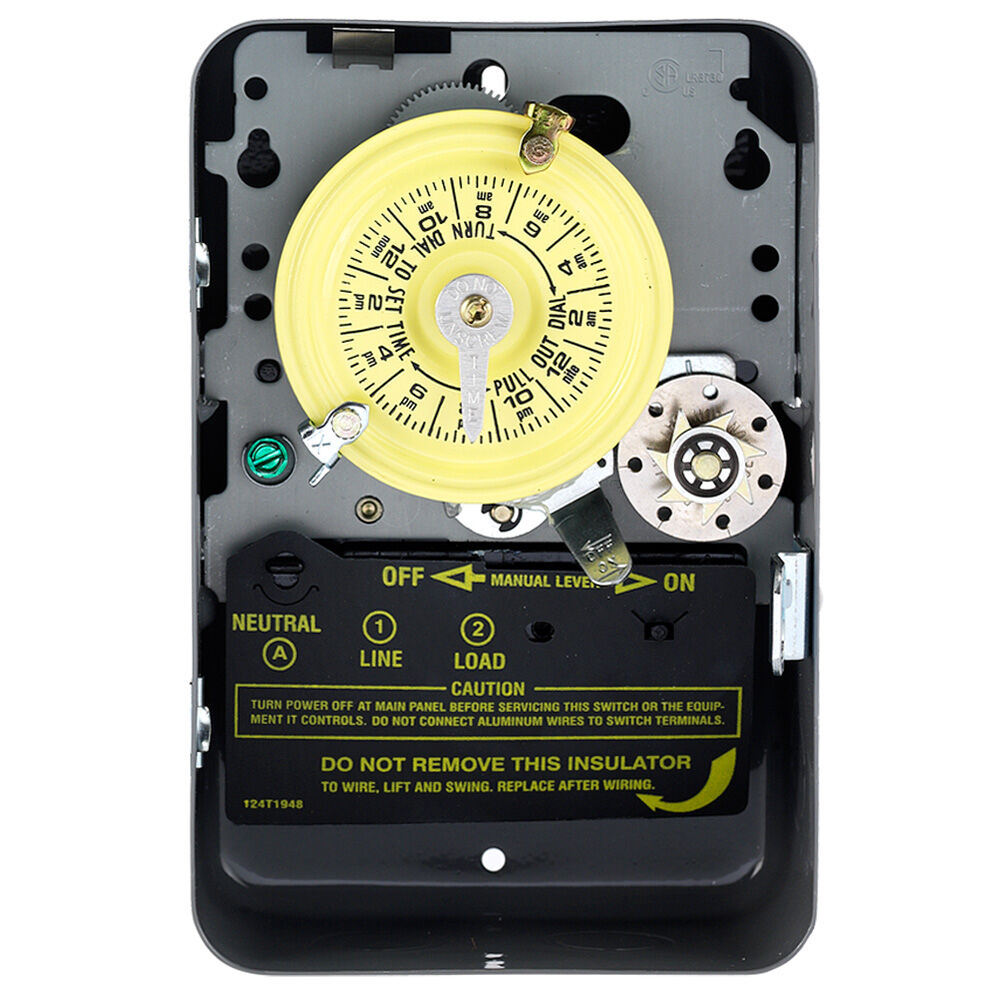

Intermatic T172 SPST 24 Hour 208-277 VAC Mechanical Time Switch

Product Description

The Intermatic T172 Mechanical Time Switch, encased in a durable NEMA 1 enclosure, ensures robust schedule management by controlling electrical loads up to 40 amps per pole. It is especially crafted for a diverse scope of applications including residential, commercial, and HVAC systems, providing both indoor and outdoor solutions.

• Facilitates up to 10 ON/OFF operations daily.
• Includes day-skipping capability for energy-saving and tailored scheduling.
• Features manual override for instant control without altering pre-set timings.

Product Highlights

This device offers a trusty 24-hour control with minimal setup times of one hour per operation. Each unit comes equipped with one ON and one OFF tripper, plus three day-skipping screws for optimal operational flexibility.

Product Information

Standard Information

• Brand: Intermatic
• Model: T172

Technical Specifications

• Type: Mechanical
• Enclosure: NEMA 1
• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 130 degrees F
• Country of Origin: Mexico
• UPC: 078275172210
