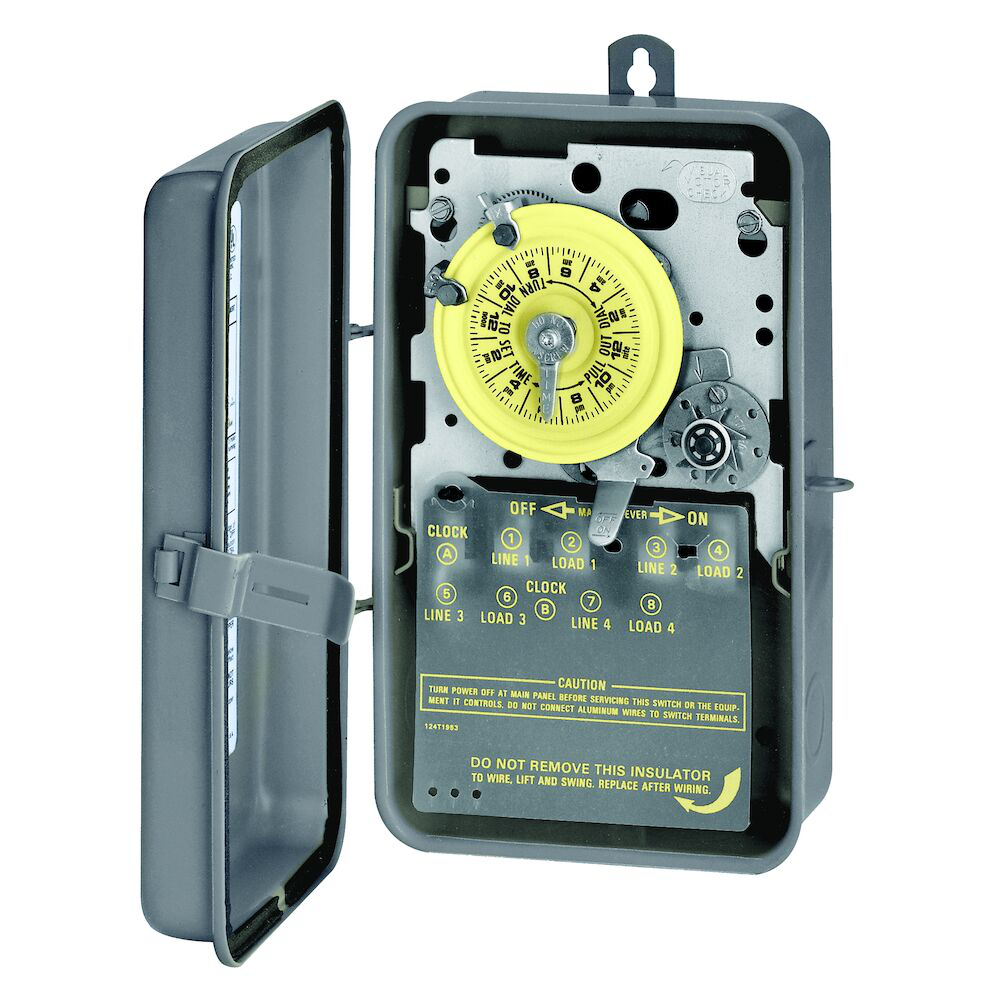

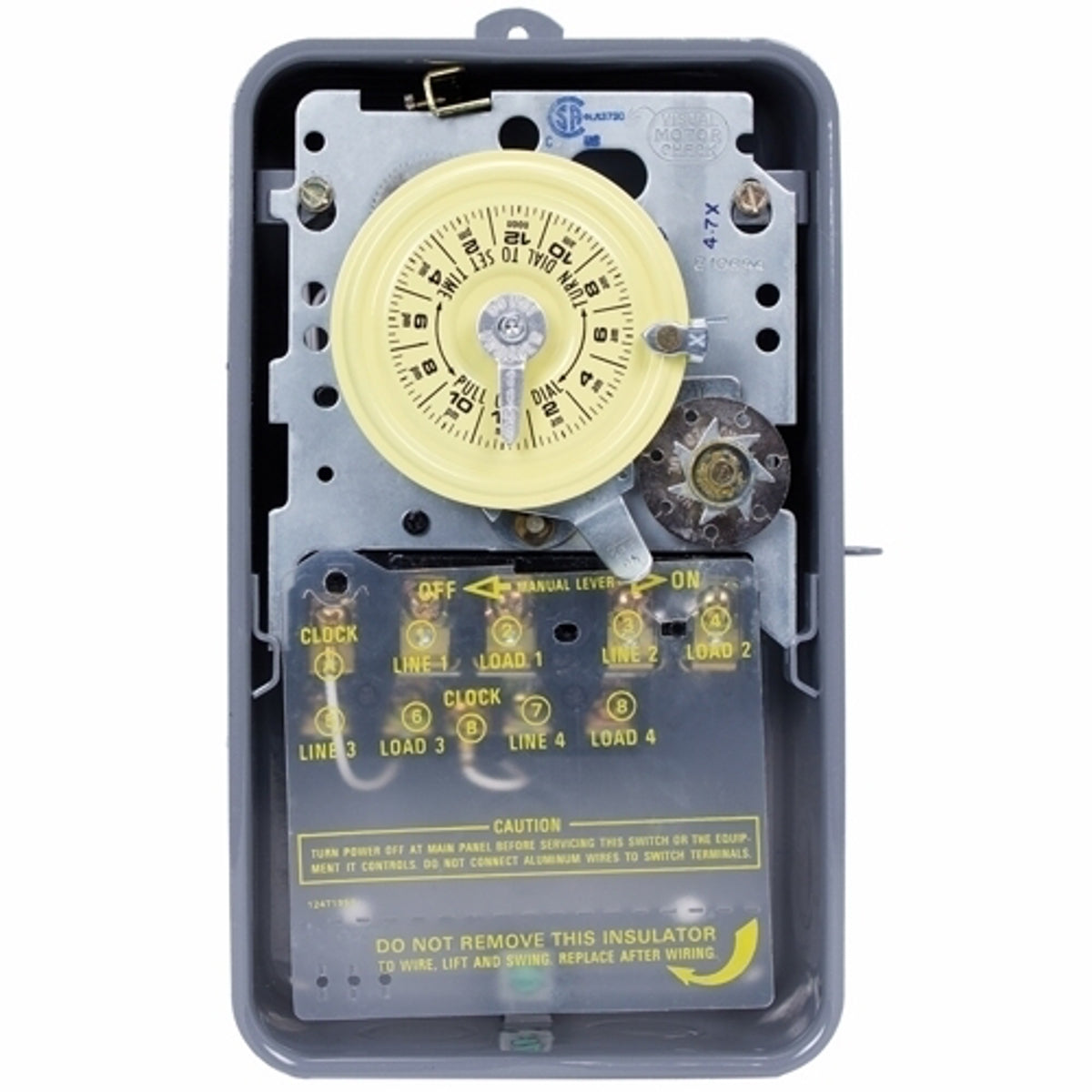

Intermatic T1472BR NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp 4PST Electromechanical Time Switch with Clock Motor Terminal

Product Description

Intermatic T1472BR is a NEMA 3R time switch suitable for controlling electrical loads up to 40 amps per pole at voltages from two hundred eight to two hundred seventy-seven volts AC. This mechanical timer allows for up to ten ON/OFF cycles each day and includes three skips for days when loads are not required. The unit features a wall mounting design for easy installation.

• Handles electrical loads up to 40 A per pole
• Includes ON/OFF tripper and day-skipper screws
• Temperature rating from -40 to 130 degrees Fahrenheit

Product Highlights

Designed for commercial and industrial applications with user-friendly features.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Voltage: 208-277 VAC
• Wattage: 3 W
• Frequency: 60 Hz
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive)
• Max Wire Size: 8 AWG
• Min Wire Size: 14 AWG
• Number of Poles: 4
• Dimensions: 10-1/8 in H x 6-1/2 in W x 3-5/8 in D
