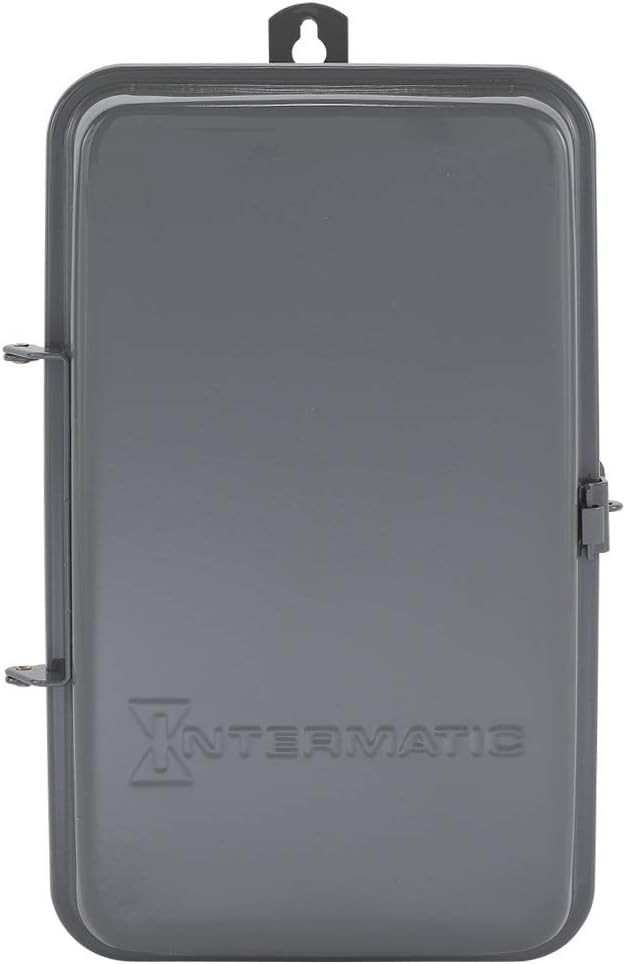

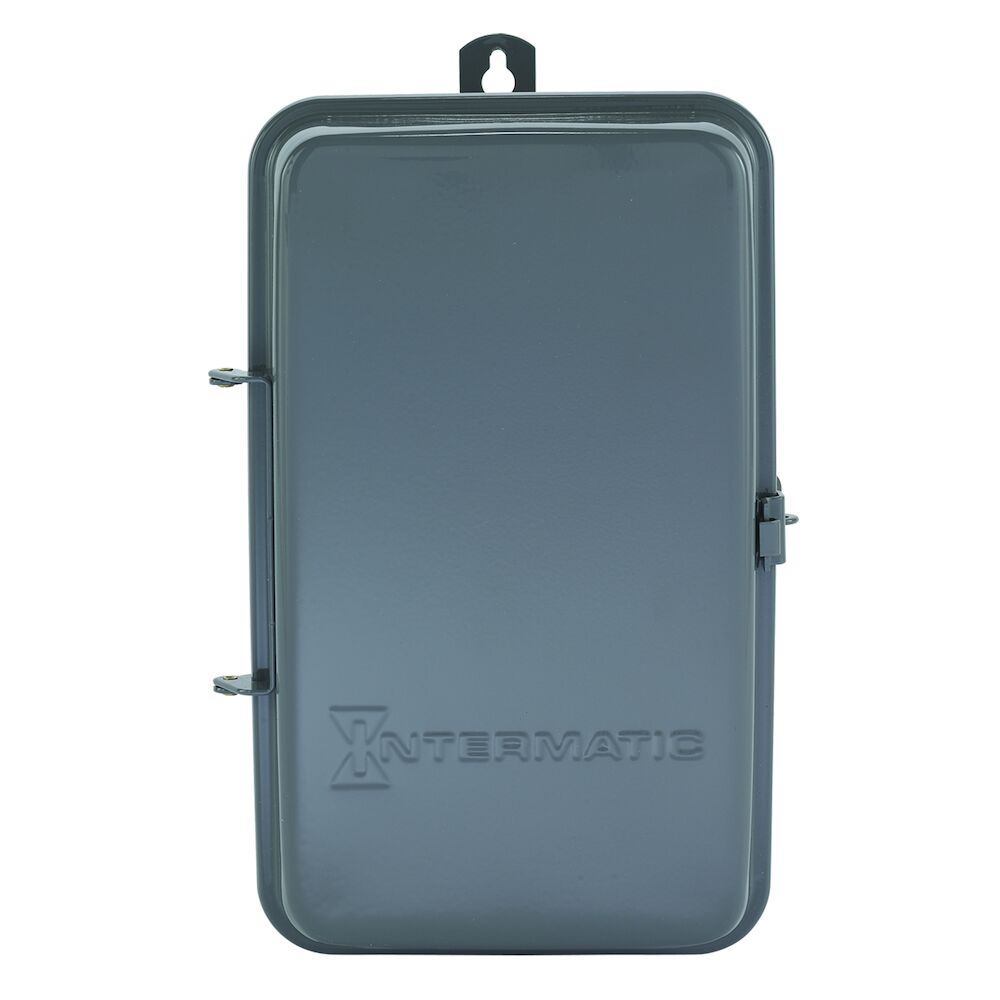

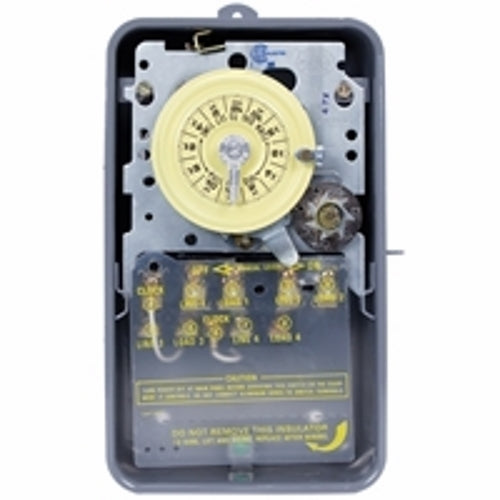

Intermatic T1471BR 4PST 24 Hour 125-Volt Time Switch with 3R Steel Case

Product Description

The Intermatic T1471BR is a four-pole, 24-hour mechanical time switch designed for various applications. This model operates at one hundred twenty volts and is built with a NEMA three R steel case for durability in outdoor settings. The time switch allows for direct control over electrically powered devices and can handle loads up to forty amps per pole. This versatility makes it ideal for lighting, pumps, and HVAC systems.

• Controls loads up to forty amps per pole.
• Includes one set of ON/OFF trippers and three day-skipper screws.
• Features a manual override option for additional control.

Product Highlights

This time switch is perfect for outdoor use with its sturdy steel enclosure. It enables up to ten ON/OFF settings each day and supports a minimum ON/OFF time of one hour, making it ideal for a range of electrical loads.

Product Information

Standard Information

• Manufacturer: Intermatic
• MPN: T1471BR

Technical Specifications

• Voltage: 120 Volts
• Amperage Rating: 40 A
• Contact Configuration: 4 NO
• Dimensions: 10-1/8 inches H x 6-1/2 inches W x 3-5/8 inches D
• Enclosure: NEMA 3R Steel
• Operating Temperature: -40 to 130 degrees F
• Power Consumption: 3 W
• Application: Commercial, Industrial, Residential, Outdoor
