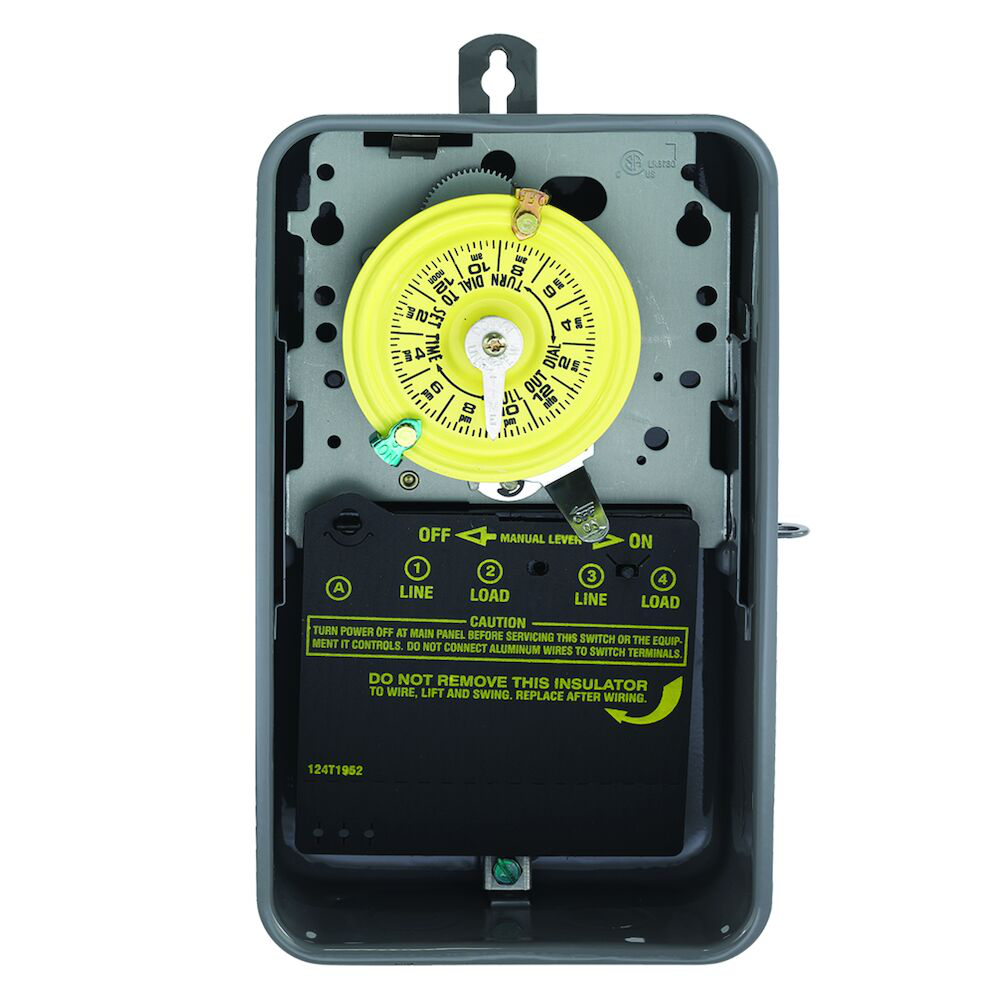

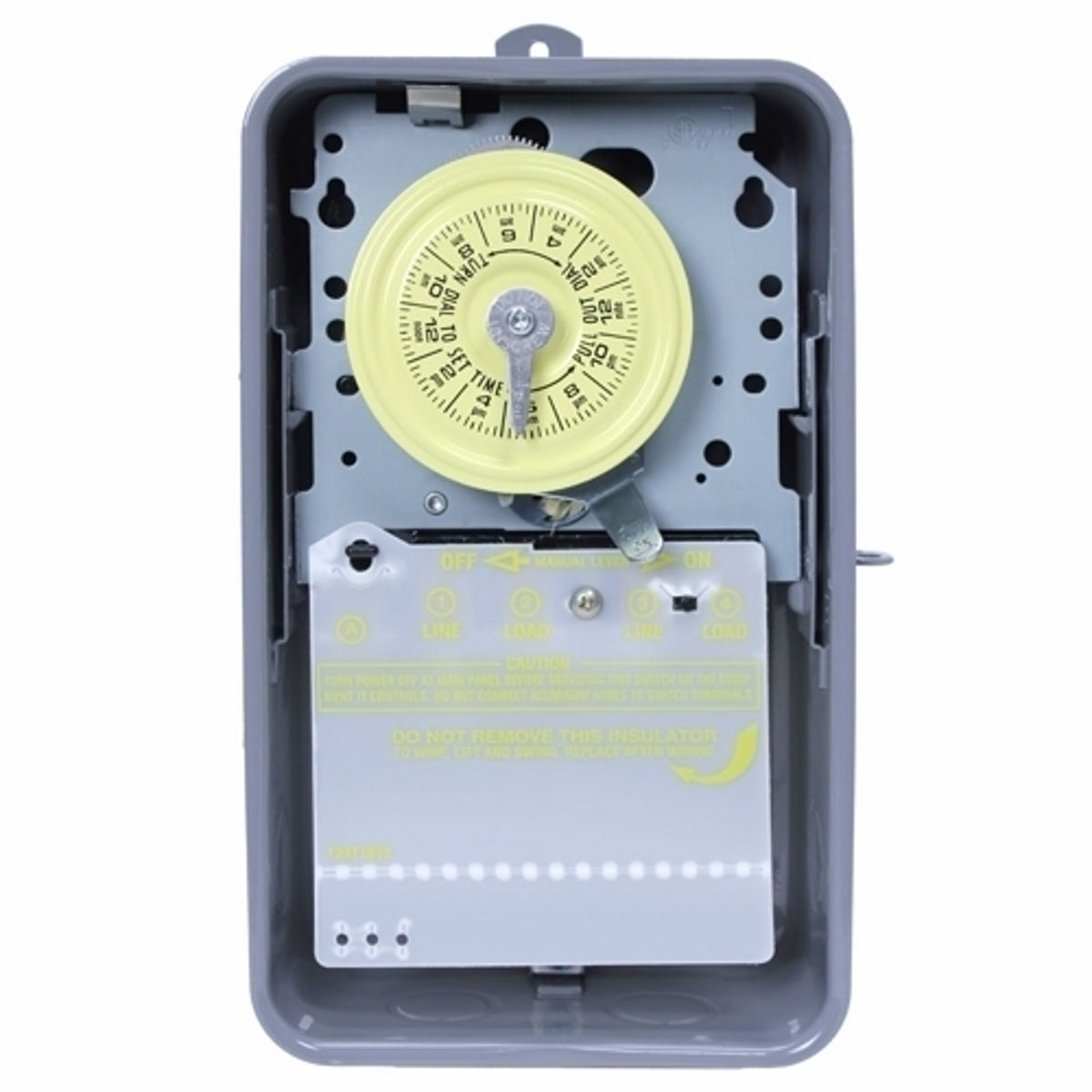

Intermatic T106R NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp SPDT Electromechanical Time Switch

Product Description

The Intermatic T106R Mechanical Time Switch is designed for various applications. It operates at a voltage of 208 to 277 VAC and is capable of handling loads up to 40 Amps per pole. This electromechanical timer allows for up to 12 ON/OFF cycles every day and includes a manual override function.

• Direct control for most electrical loads
• Accommodates multiple ON/OFF operations each day
• Simple installation in most Intermatic enclosures

Product Highlights

This timer provides reliable control for indoor and outdoor applications. It is suitable for use in commercial, industrial, and residential settings, including HVACR systems. The NEMA 3R steel enclosure protects it from environmental factors.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T106R

Technical Specifications

• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Amperage: 40 Amp
• Wattage: 3 W
• Action: SPDT
• Enclosure: NEMA 3R Steel
• Width: 4 inches
• Height: 10 1/8 inches
• Depth: 3 5/8 inches
• Operating Temperature: -40 to +130 degrees F
• Number of Poles: 1 Pole
• Warranty Length: 1 year
