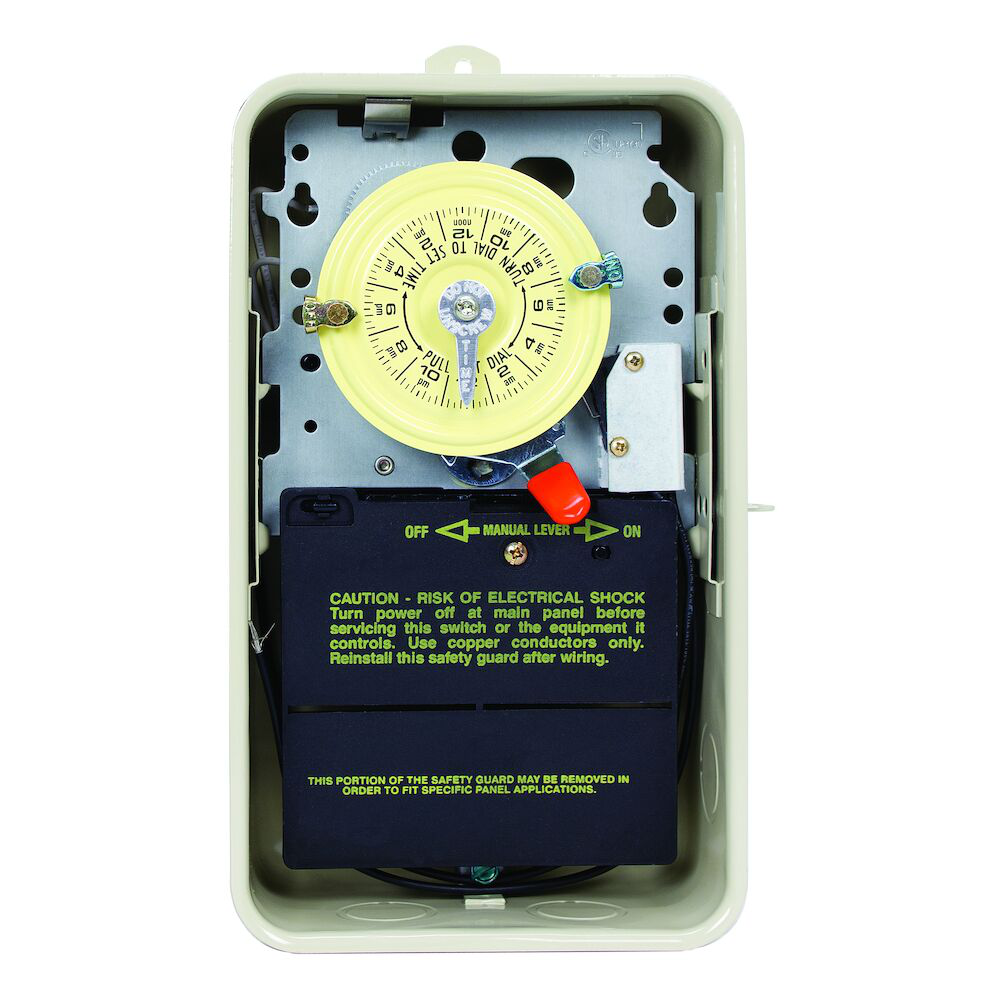

Intermatic T104R201 NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater

Product Description

The Intermatic T104R201 is a mechanical time switch designed for controlling electrical devices including pool heaters. This time switch operates on voltages from two hundred eight to two hundred seventy-seven volts alternating current and supports a maximum load of forty amps.

• Mechanical design for reliable operation.
• Includes pool heater protection feature.
• NEMA 3R steel enclosure for outdoor use.

Product Highlights

Ideal for residential, commercial, and industrial applications. Offers precise scheduling with multiple ON/OFF operations per day.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T104R201

Technical Specifications

• Type: Mechanical
• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive)
• Enclosure: NEMA 3R Steel
• Height: 10-1/8 inches
• Width: 6.5 inches
• Depth: 3-5/8 inches
• Number of Poles: 2
• Operating Temperature: -40 to 130 degrees F
• Applications: Heater Thermostat Control, Motor Control, Pump Control, Water Circulation
• Warranty Length: 1 year
