Intermatic T104P3 208-277 Volt DPST 24 Hour Mechanical Time Switch

Product Description

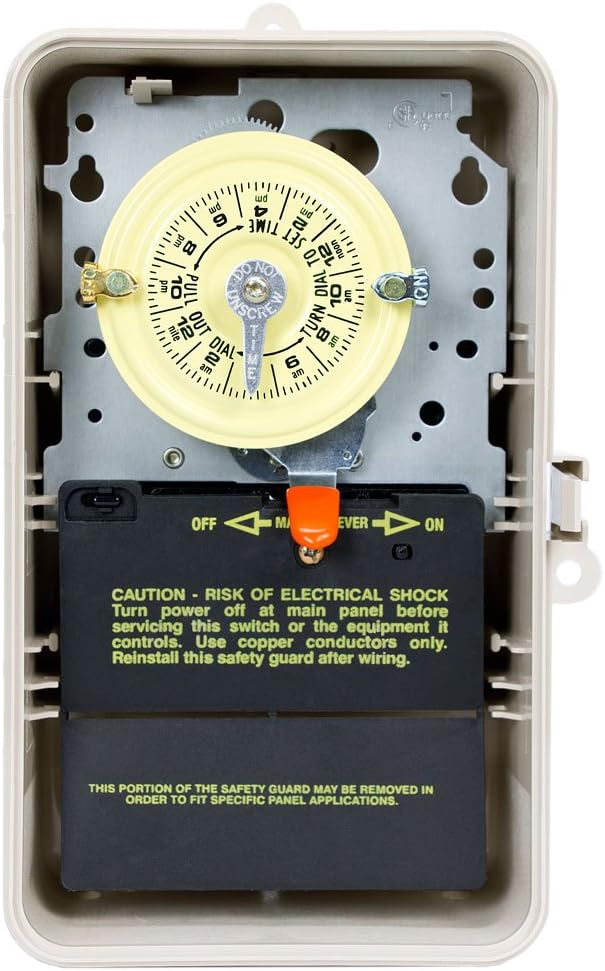

The Intermatic T104P3 mechanical time switch is designed for industrial, commercial, and residential applications. It offers the highest motor load ratings in the industry and provides direct 24-hour control of most loads. The switch operates with a double pole, single throw mechanism. The enclosure is a beige NEMA 3R plastic case.

• Direct 24-hour control
• 12 on/off operations per day
• Manual override switch

Product Highlights

This time switch is ideal for applications such as indoor and outdoor lighting, signs, pumps, filters, fans, pool heaters, electric fences, and other electrical loads. It can handle loads up to 40 amps per pole and includes a manual override switch for convenience.

Product Information

Standard Information

• MPN: T104P3
• Brand: Intermatic

Technical Specifications

• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Action: DPST
• Mounting Type: Wall Mount
• Contact Rating: 40 AMP @ 120-480 VAC (Resistive), 40 AMP @ 120-277 VAC (Tungsten, Inductive)
• Dimensions: 10 inches H x 6.5 inches W x 4 inches D
• Operating Temperature: -40 to 130 degrees F
• Number of Poles: 2

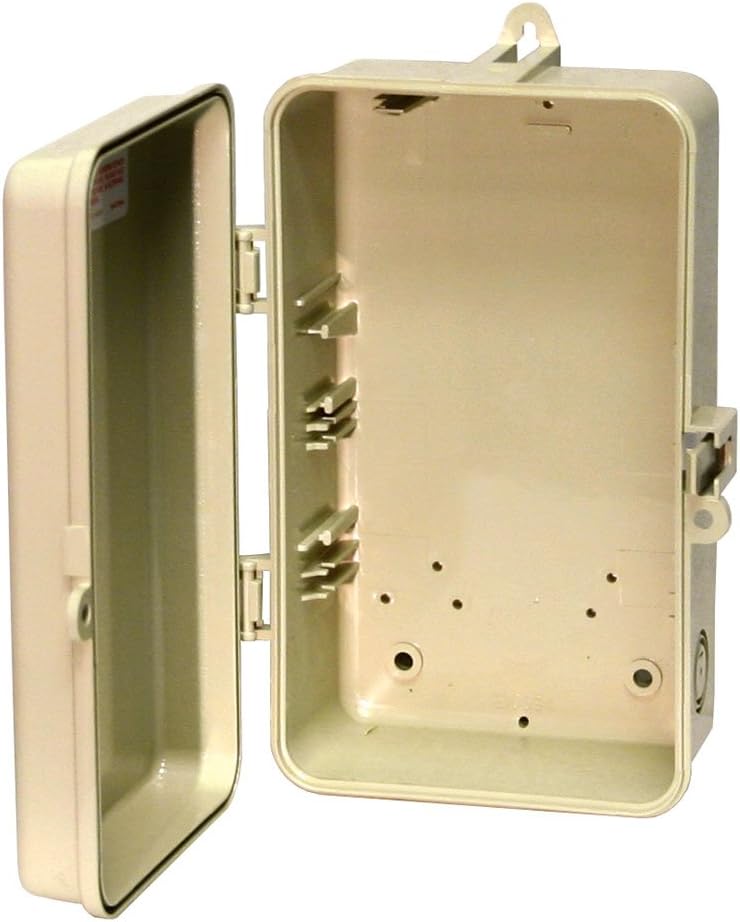

• Enclosure: NEMA 3R Plastic
• Standards/Approvals: cCSAus Certified
