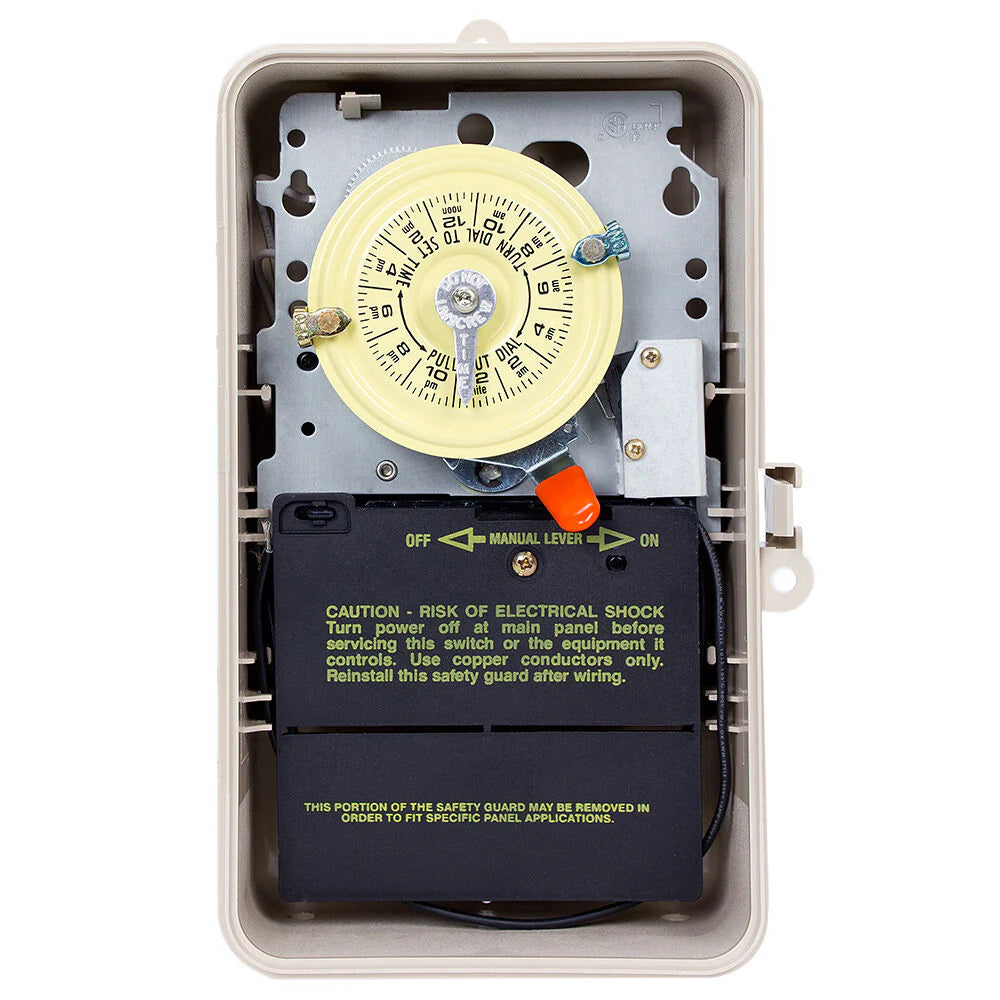

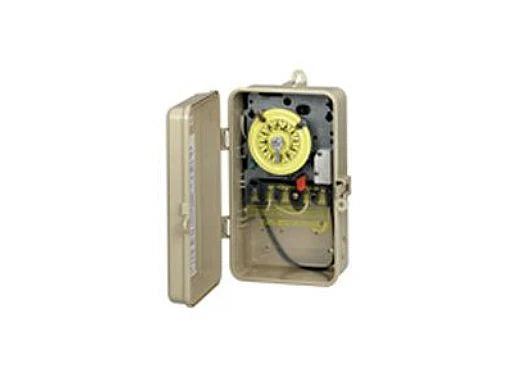

Intermatic T104P201 NEMA 3R Plastic Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater

Product Description

The Intermatic T104P201 is a mechanical timer switch that operates on 208 to 277 VAC. This heavy-duty timer is designed to control a single load effectively. Its rugged design makes it suitable for various applications, including pool heaters and other electrical loads.

• Operates on 208 to 277 VAC, perfect for industrial and residential use.
• Features 12 ON/OFF operations per day with one ON and one OFF tripper included.
• Complies with cCSAus certification standards for quality assurance.

Product Highlights

This timer switch is ideal for commercial, industrial, and residential applications.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: T104P201

Technical Specifications

• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive)
• Dimensions: 10 inches height x 6.5 inches width x 4 inches depth
• Enclosure: NEMA 3R Plastic
• Operating Temperature: -40 to +130 degrees F
• Number of Poles: 2
• Wattage: 3 Watt
• Applications: For lighting, heating controls, and pool systems
