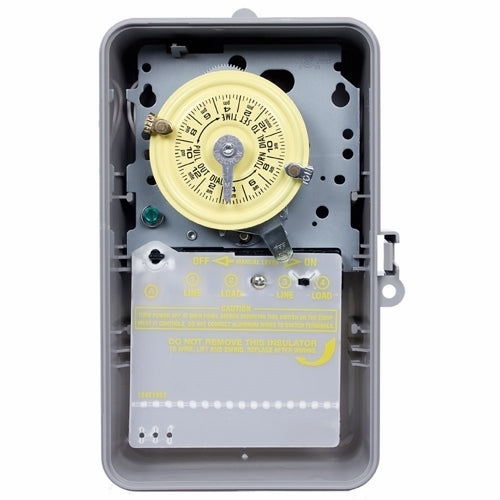

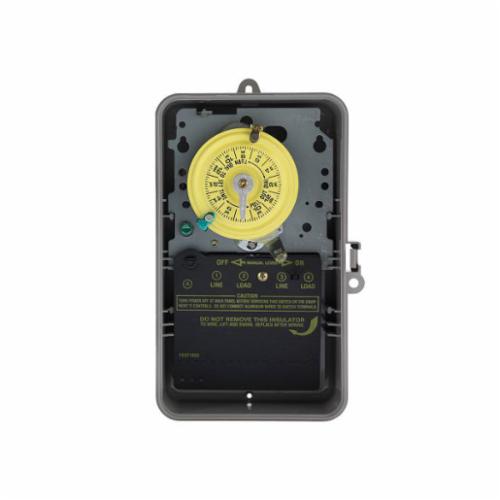

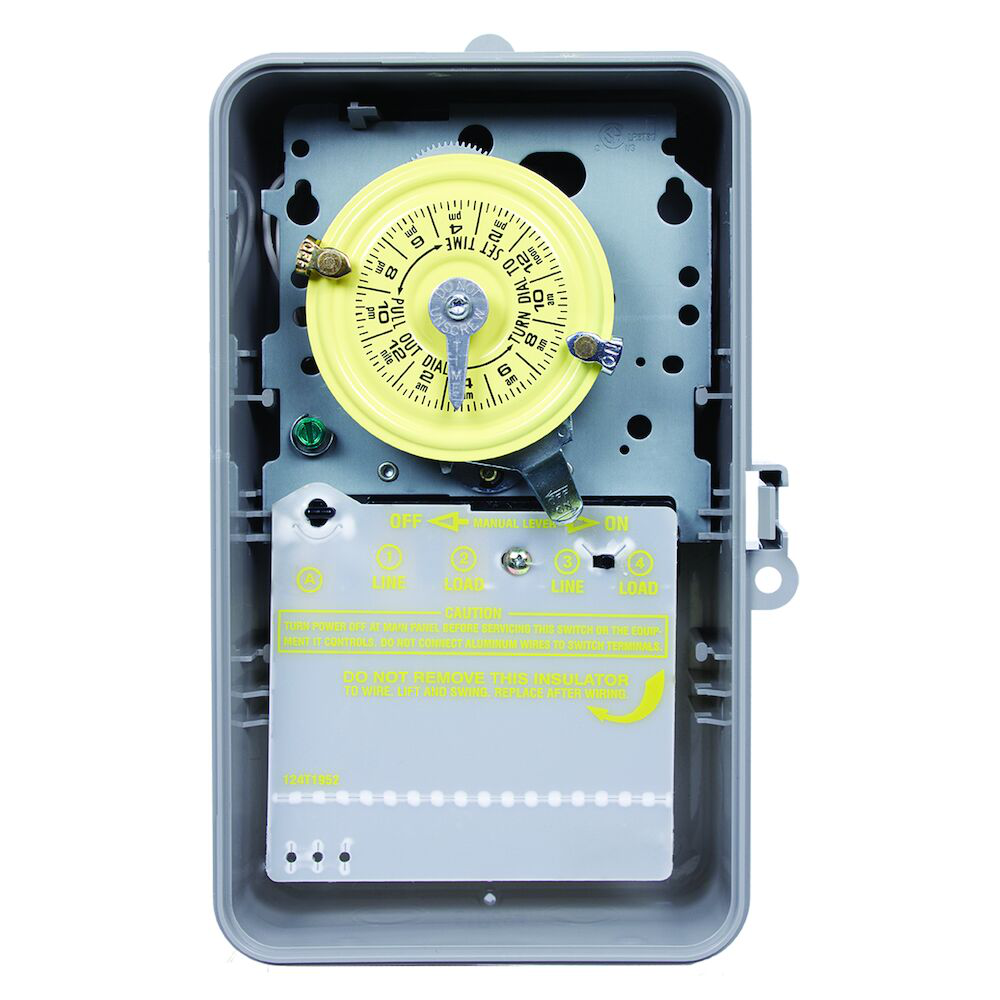

Intermatic T104P NEMA 3R Plastic Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch

Product Description

The Intermatic T104P is a reliable electromechanical time switch designed for controlling loads up to 40 Amperes per pole. This time switch operates on voltages from 208 to 277 VAC at 60 Hertz. It offers the capability for twelve ON/OFF operations within a single day. A manual override function provides additional convenience for immediate control.

• Handles electrical loads up to 40 A per pole.
• Allows up to 12 ON/OFF operations daily.
• Includes a manual override switch for added convenience.

Product Highlights

This model is suitable for both indoor and outdoor applications, with a NEMA 3R plastic enclosure that ensures durability against external elements.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T104P

Technical Specifications

• Voltage Rating: 208 - 277 VAC
• Amperage Rating: 40 A
• Frequency: 60 Hz
• Dimensions: 5-1/2 inches Length x 3-3/8 inches Width x 9-3/8 inches Height
• Wattage: 3 W
• Number of Poles: 2
• Mounting Type: Wall
• Operating Temperature: -40 to +130 degrees F
