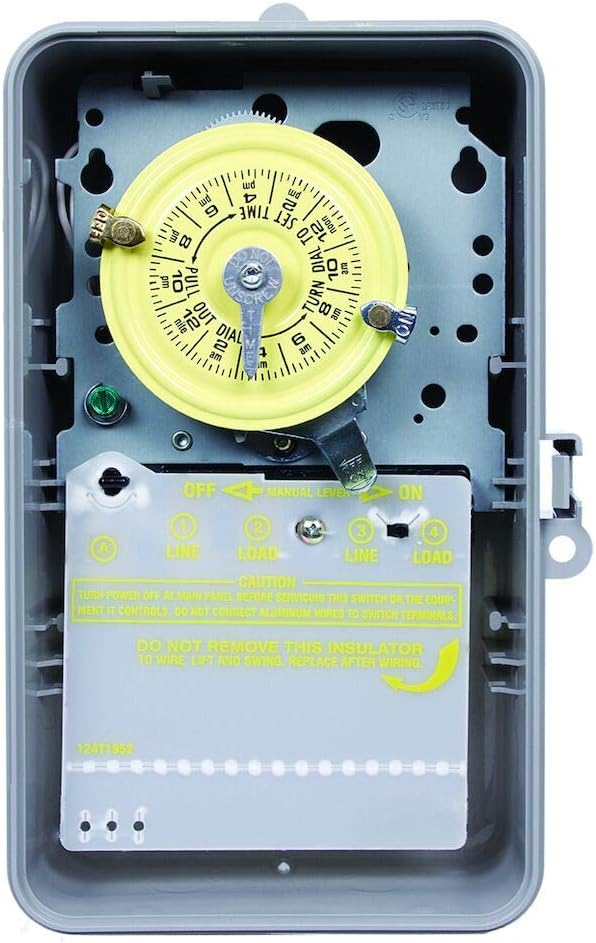

Intermatic T104P DPST Time Clock 24 Hour 208V to 277V

Product Description

The Intermatic T104P is a DPST time clock that operates on 208 to 277 volts, making it suitable for various applications. This electromechanical time switch allows for 24-hour control and up to twelve ON/OFF cycles each day, offering convenient scheduling capabilities.

• Rated for 40 amps per pole
• Constructed with a NEMA 3R plastic enclosure
• Manual override feature included

Product Highlights

The T104P time clock is designed for reliable operations in commercial, industrial, and residential settings. Its robust construction and flexible scheduling make it ideal for lighting control, HVAC systems, and other timed applications.

Product Information

Standard Information

• Brand: Intermatic
• Voltage: 208 to 277 VAC

Technical Specifications

• Amperage Rating: 40 A
• Dimensions: 5.5 inches (Length) x 3.375 inches (Width) x 9.375 inches (Height)
• Temperature Rating: -40 to +130 degrees Fahrenheit
• Wattage: 3 W
• Contact Configuration: DPST, 2 NO
• Mounting Type: Wall
• Enclosure: NEMA 3R Plastic
