Intermatic T10404R Control Panel with 240 VAC (1 Count) T10604R

Product Description

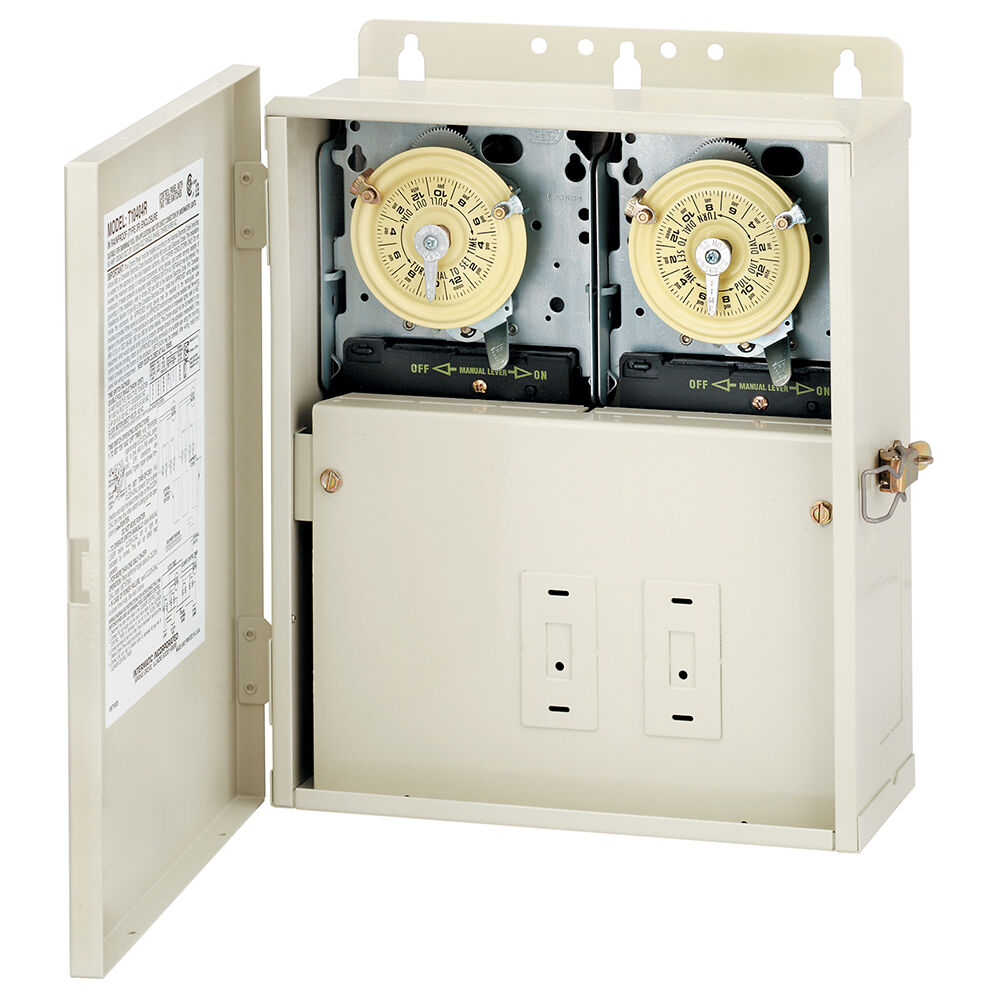

The Intermatic T10404R control panel is designed as a power center. This unit allows for the addition of mechanisms or wiring devices to create complete control systems.

• Available with one or two heavy-duty timer mechanisms.
• Accepts various PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M, or RC2000M Series mechanisms.
• Type 3R enclosure for outdoor use supports weather protection.

Product Highlights

This control panel supports multiple configurations for motor and pump control applications. It is suitable for use in pool and spa environments, allowing for precise timing control.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: T10404R

Technical Specifications

• Amperage Rating: 30 A
• Voltage: 240 VAC
• Dimensions: 12 inches Height x 12 inches Length x 4-1/4 inches Depth
• Enclosure Type: NEMA 3R
• Operating Temperature: -40 to 130 degrees F
• Weight: 10 lbs
• Country of Origin: Mexico
