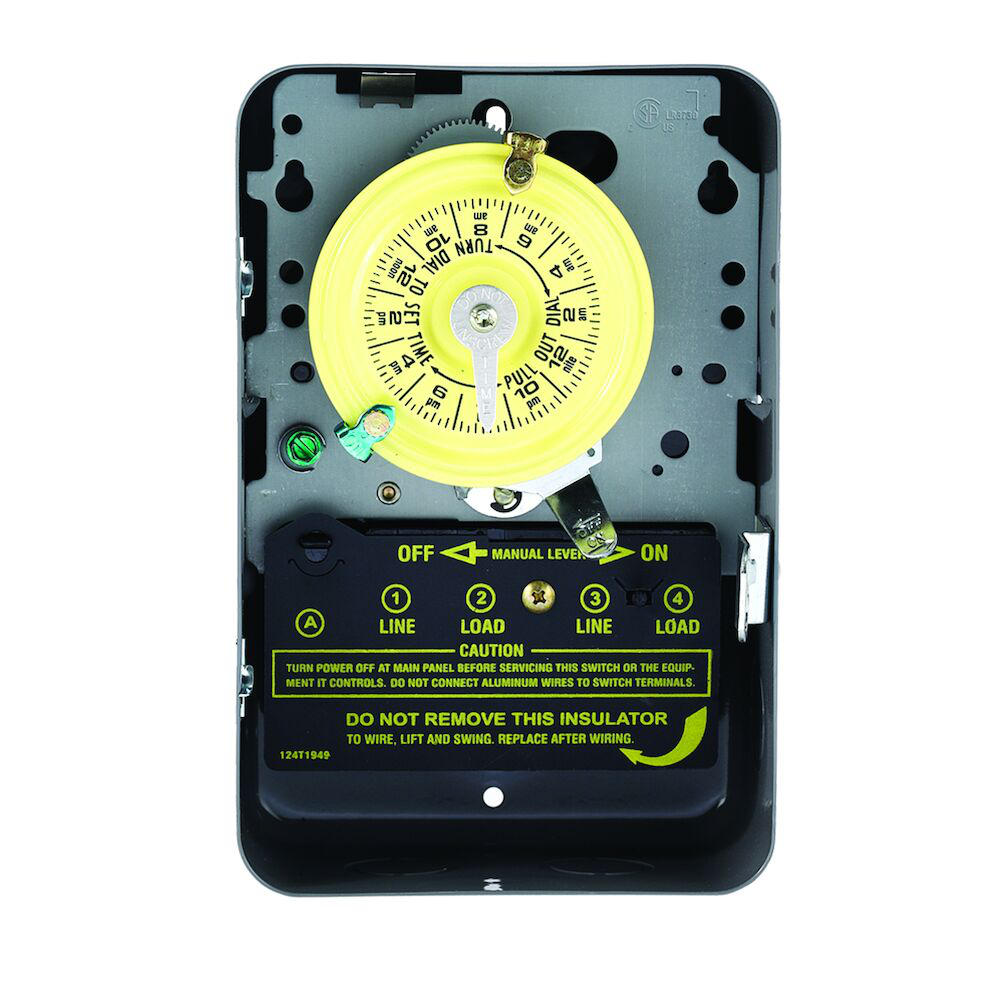

Intermatic T104-20 Mechanical Water Heater Time Switch 40 Amp 208 to 277 VAC

Product Description

The Intermatic T104-20 is a mechanical timer switch designed for electric water heaters. It operates with voltages ranging from 208 to 277 VAC and provides a contact rating of 40 Amp. This timer is suitable for various applications including commercial and residential use.

• Easy-to-set yellow dial
• 1 to 23 hour time setting
• DPST contact configuration

Product Highlights

The Intermatic T104-20 ensures efficient control of electric water heaters by allowing pre-set intervals for operation, thereby helping to manage energy consumption effectively.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: T104-20
• Voltage: 208 - 277 VAC
• Amperage: 40 Amp
• Horsepower: 5 hp
• Contact Configuration: DPST, 2 NO
• Dimensions: 5 inches length x 3 inches width x 7-3/4 inches height
• Enclosure Type: NEMA 1
• Mounting Type: Wall
• Operating Temperature: -40 to +130 degrees F
• Time Setting Range: 1 to 23 hours
