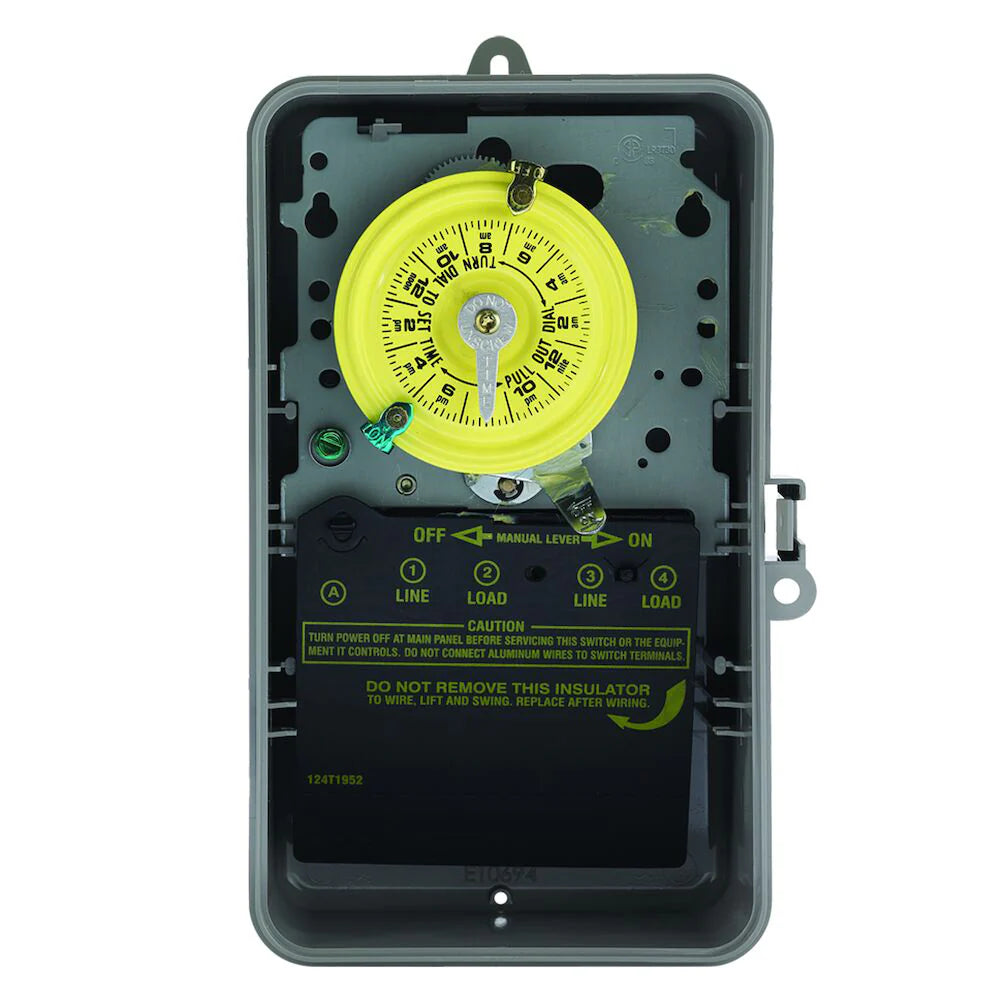

Intermatic T103P INT-MAT T103P DPST 40A 125V TIME SW

Product Description

The Intermatic T103P is a DPST electromechanical time switch with a voltage rating of 125 VAC. This time switch can handle electrical loads up to 40 Amperes per pole and allows for a maximum of twelve ON/OFF operations each day. A manual override feature enhances user flexibility, making it suitable for various applications including outdoor lighting and HVAC control.

• Direct 24-hour control of various loads
• 12 ON/OFF cycles per day with minimum ON/OFF times of one hour
• NEMA 3R plastic enclosure for indoor and outdoor applications

Product Highlights

The T103P is built for reliability and performance. Its electromechanical design ensures longevity, and its robust features make it a practical choice for residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: T103P
• Amperage Rating: 40 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Contact Configuration: DPST
• Temperature Rating: -40 to 130 degrees F
• Enclosure Type: NEMA 3R Plastic
• Dimensions: 5.5 inches length x 3.375 inches width x 9.375 inches height
• Special Features: Manual override, 1 Year Warranty
• Made in: Mexico
