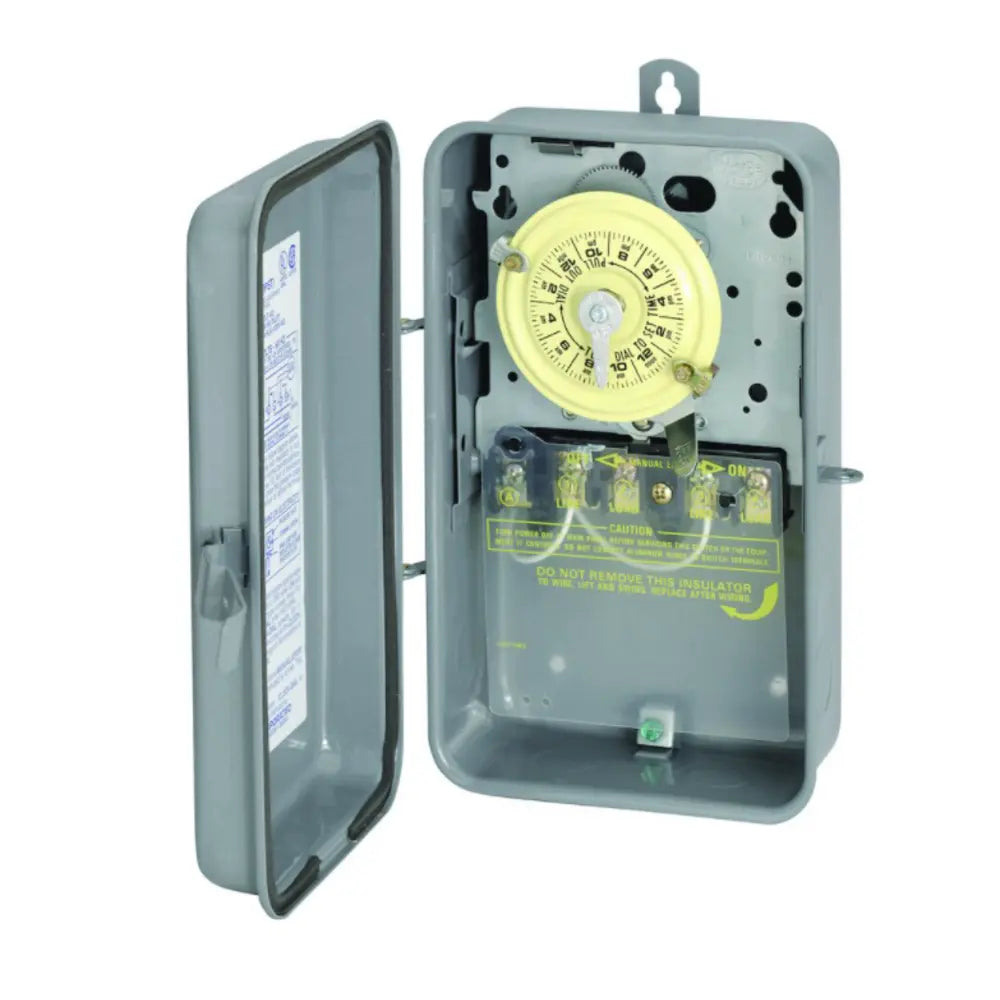

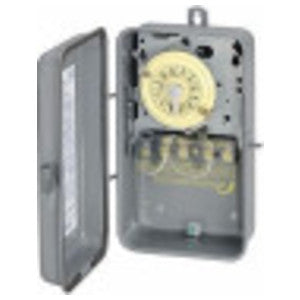

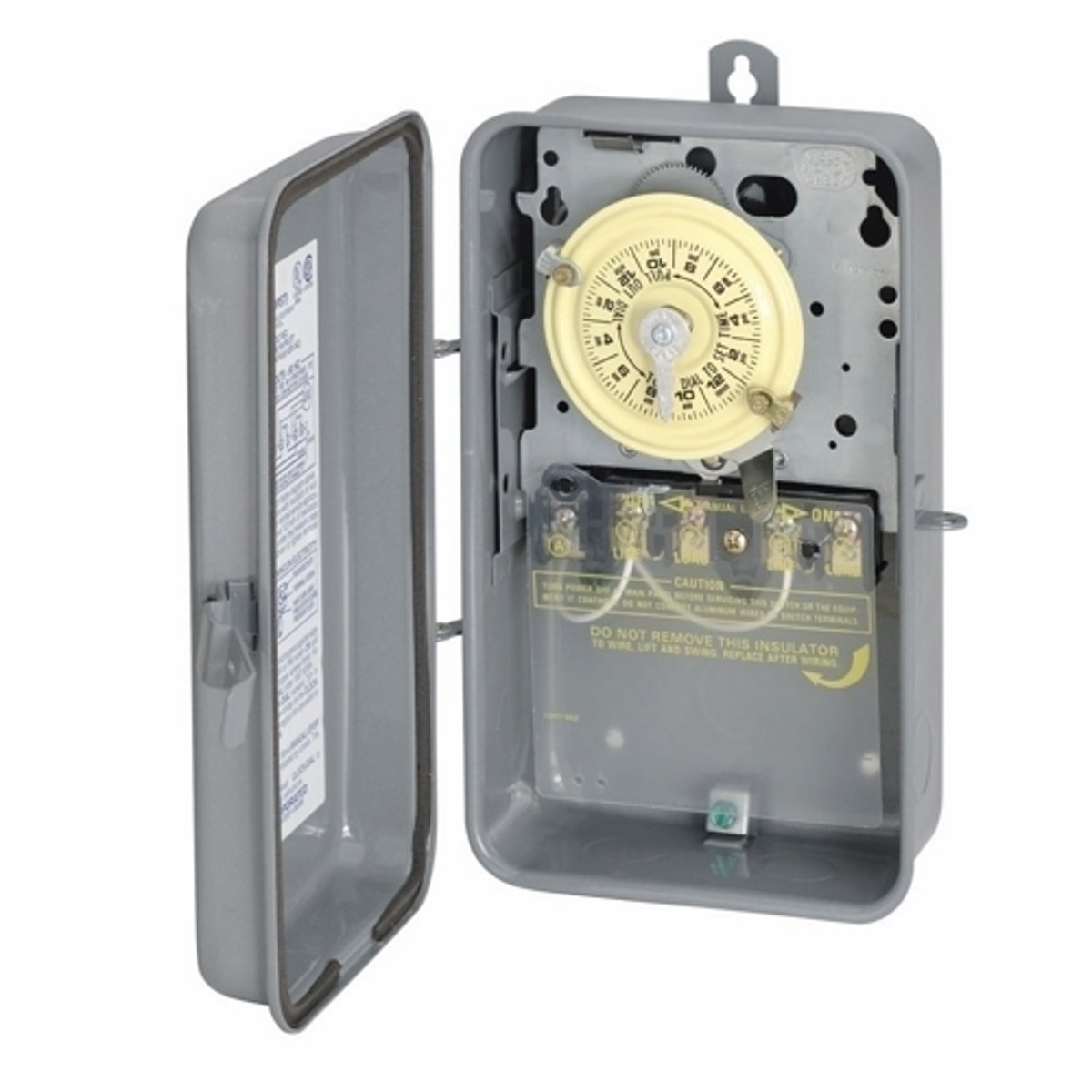

Intermatic T102R 24-Hour Mechanical Time Switch 208/277VAC 60Hz SPST 1 Hour Interval

Product Description

The Intermatic T102R is a 24-hour mechanical time switch designed for various applications. This device is capable of handling loads of up to forty amps and operates at voltages of 208 to 277 volts. Ideal for commercial, industrial, and residential use, this electromechanical timer provides reliable control for lighting and other equipment.

• Operates at 208 to 277 volts
• Handles electrical loads up to 40 amps
• Direct control for up to 12 ON/OFF operations per day

Product Highlights

Ideal for users needing precise time-based control of electrical systems, the T102R offers direct control for most loads.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T102R

Technical Specifications

• Voltage Rating: 208 - 277 VAC
• Amperage Rating: 40 Amps
• Wattage: 3 Watts
• Dimensions: 5.5 inches x 4 inches x 9.375 inches
• Operating Temperature: -40 to +130 degrees F
• Enclosure: NEMA 3R Steel
• Contact Configuration: 1 NO
• Application: Commercial, Industrial, Residential
