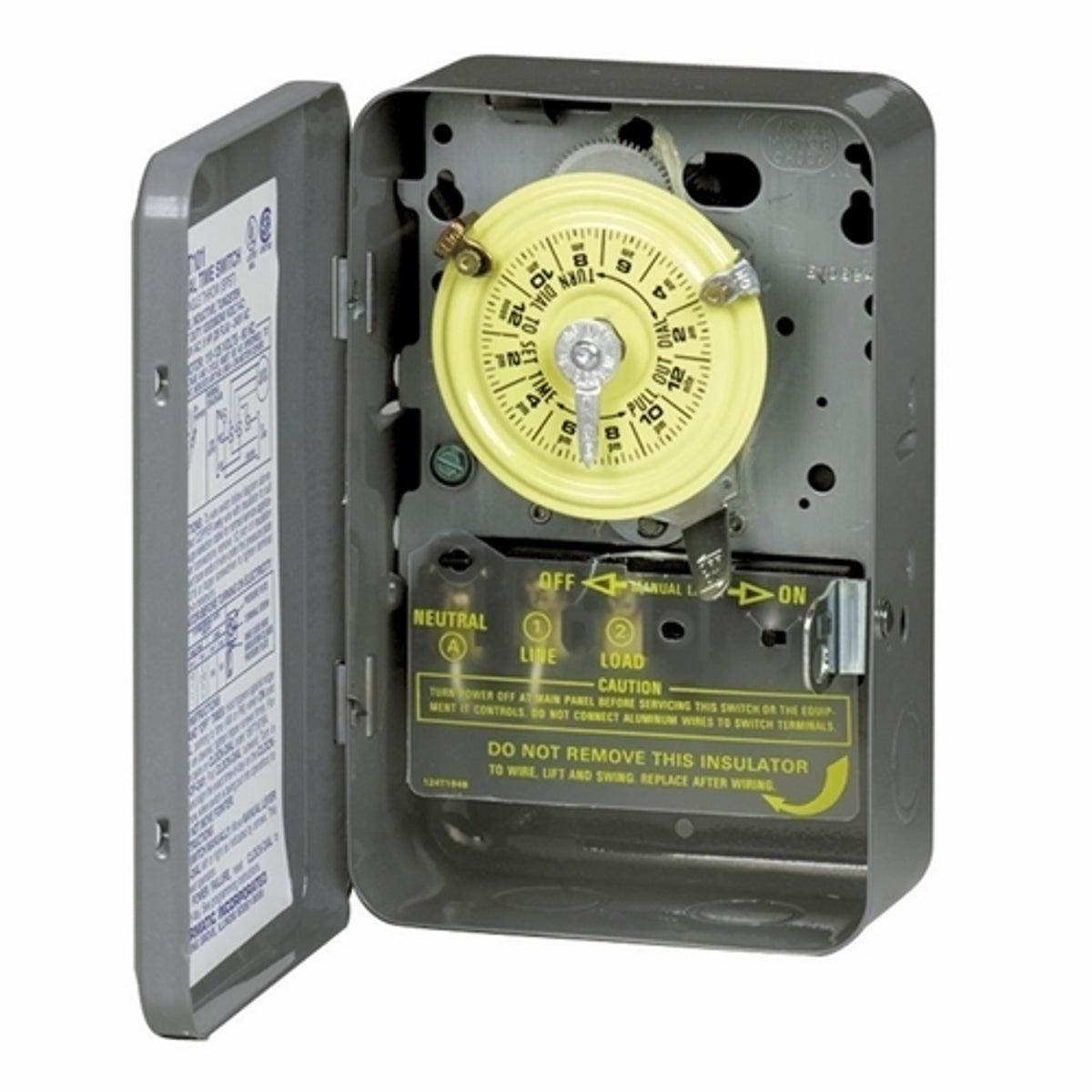

Intermatic T102 24-hour Mechanical Time Switch 208-277V SPST NEMA 1

Product Description

The Intermatic T102 is a 24-hour mechanical time switch designed for various applications. It supports a voltage range of 208 to 277 volts and is rated for 40 amps, suitable for industrial and commercial use. The product features a single pole, single throw (SPST) contact configuration. Ideal for controlling various electrical loads, this switch offers up to twelve on/off settings each day, with a minimum setting time of one hour. A manual override adds convenience for users needing immediate control.

• NEMA 1 enclosure offers protection from dust and dirt.
• Direct control of lighting, ventilation, and irrigation systems.
• Reliable construction for long-lasting service.

Product Highlights

This electromechanical time switch is crafted for both indoor and outdoor use, making it versatile for HVAC applications as well. Its high amperage capacity ensures it can handle significant electrical loads while providing dependable time settings.

Product Information

Standard Information

• Manufacturer: Intermatic
• Part Number: T102

Technical Specifications

• Voltage: 208 - 277 VAC
• Amperage: 40 A
• Horsepower Rating: 5 hp
• Temperature Rating: -40 to +130 degrees F
• Contact Configuration: SPST - 1 NO
• Dimensions: 5 x 3 x 7.75 inches
• Mounting Type: Wall Mount
• Enclosure: NEMA 1
