Intermatic T101R201 Time Switch 125 VAC 60 Hz 40 Amp SPST

Product Description

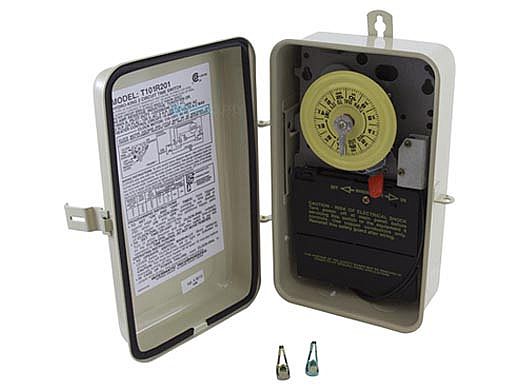

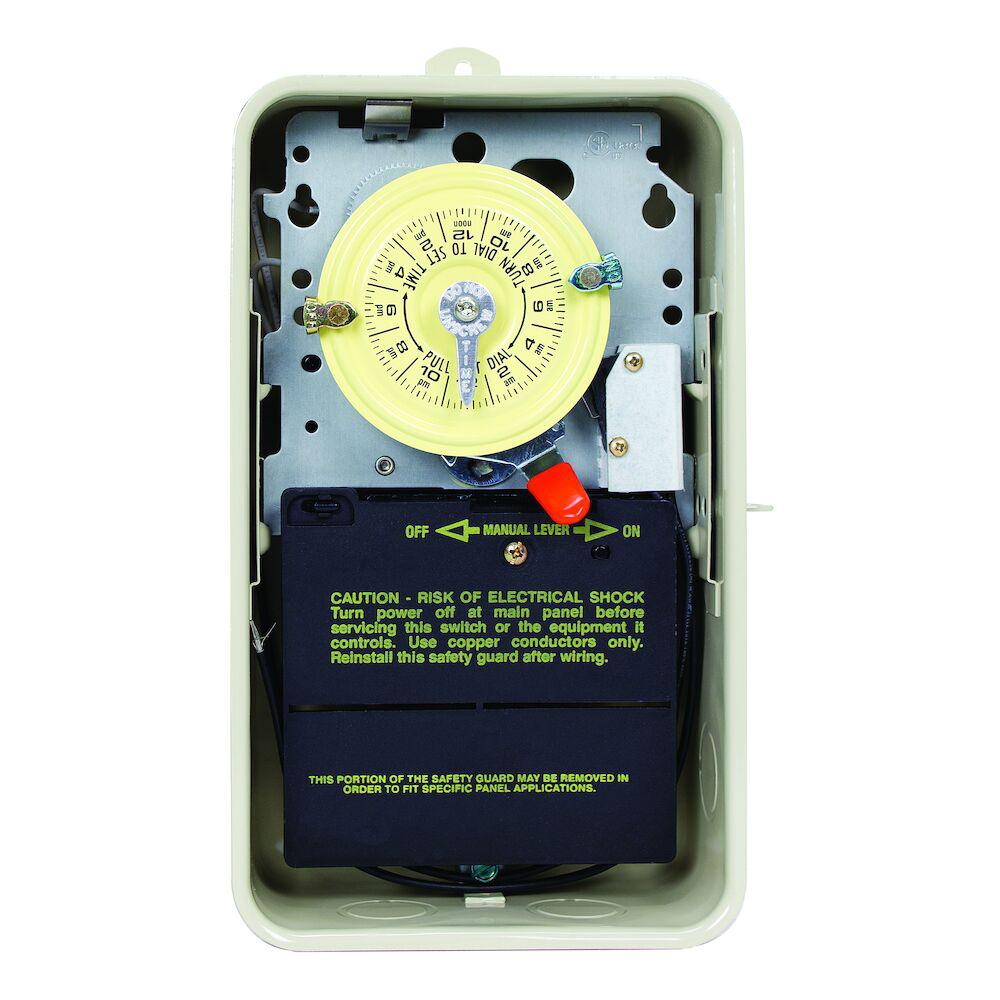

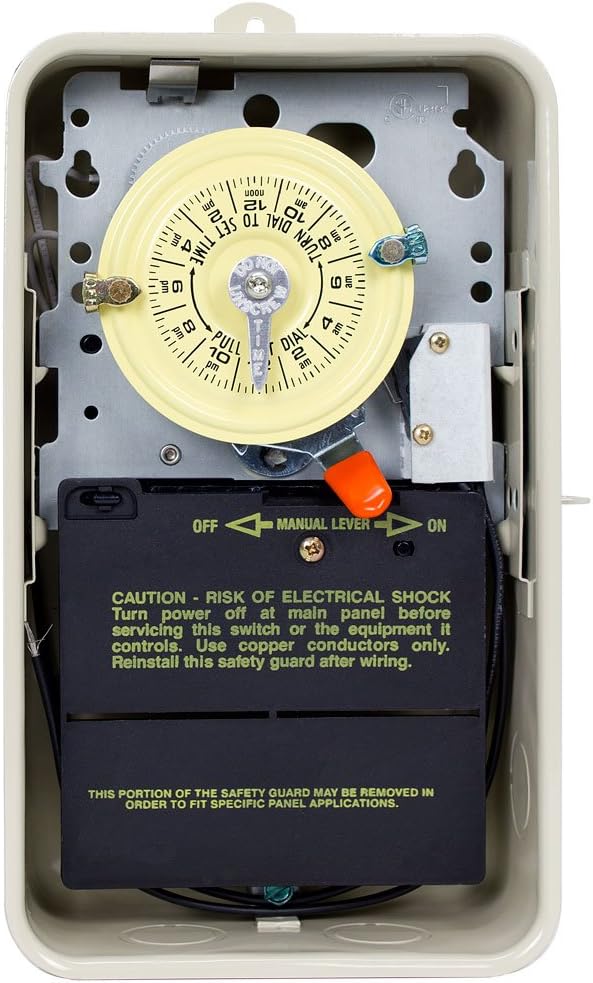

Intermatic T101R201 Time Switch is designed for various applications, including commercial, industrial, and residential. This mechanical time switch is housed in a NEMA 3R steel case and operates at 125 VAC, 60 Hz with a 40 Amp SPST rating.

• Heavy-duty mechanical time switches control a single load
• Provides up to 12 ON/OFF operations per day
• Comes with ON and OFF trippers

Product Highlights

This time switch is perfect for controlling motors, pumps, heaters, and lighting systems. Its rugged design and high motor load ratings make it suitable for challenging environments.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico
• Warranty Length: 1 year

Technical Specifications

• Type: Mechanical
• Voltage: 120 Volt
• Depth: 3-5/8 inches
• Width: 6.5 inches
• Height: 10-1/8 inches
• Action: SPST
• Frequency: 60 Hz
• Enclosure: NEMA 3R Steel
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
• Applications: Heater Thermostat Control, Motor Control, Pump Control
• Mounting Type: Wall Mount
• Operating Temperature: -40 to 130 degrees F
• Power Consumption: 3 W
• Number of Circuits: 1
• Contact Configuration: 1 NO
