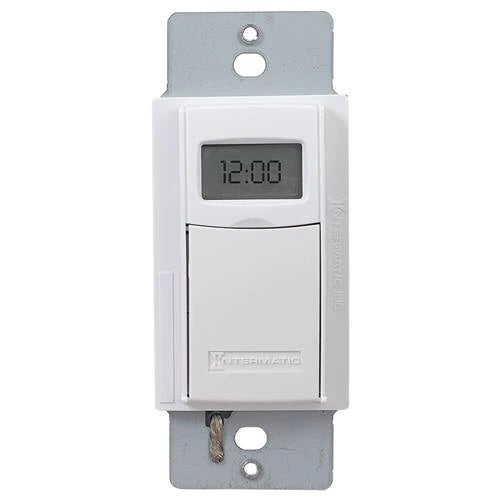

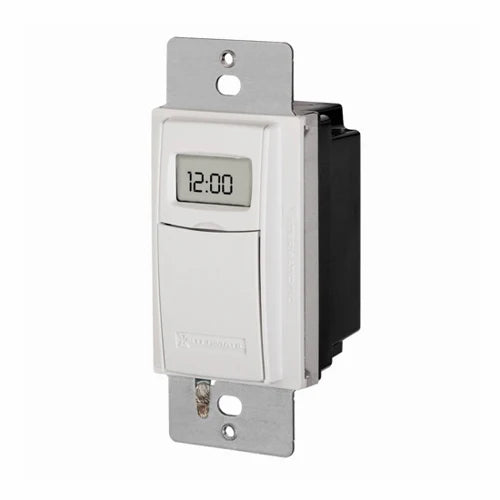

Intermatic ST01 1-Pole In-Wall Timer, 7 Day Setting, 120/277 VAC, 1 hp

Product Description

Intermatic ST01 is a digital in-wall timer that operates at 120/277 VAC and supports 1 horsepower. This timer is user-friendly and designed for programmable scheduling, providing efficient control over lighting and equipment. The ST01 timer can handle up to forty ON/OFF events weekly and features an astronomic option for sunrise and sunset activation.

• Programmable for up to 40 ON/OFF events per week
• No neutral wire connection needed, simplifying installation
• Automatic Daylight Saving Time adjustment

Product Highlights

The Intermatic ST01 timer is suitable for various applications, including HVACR, landscape lighting, and indoor lighting control.

Product Information

Standard Information

• Brand: Intermatic
• Model: ST01

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Horsepower: 1 hp
• Mounting Type: Wall
• Temperature Rating: 32 to 122 deg F
• Contact Form: 3-Way/SP
• Battery Type: CR2 Lithium
• Dimensions: 4-1/8 in H x 1-3/4 in W x 1-13/16 in D
