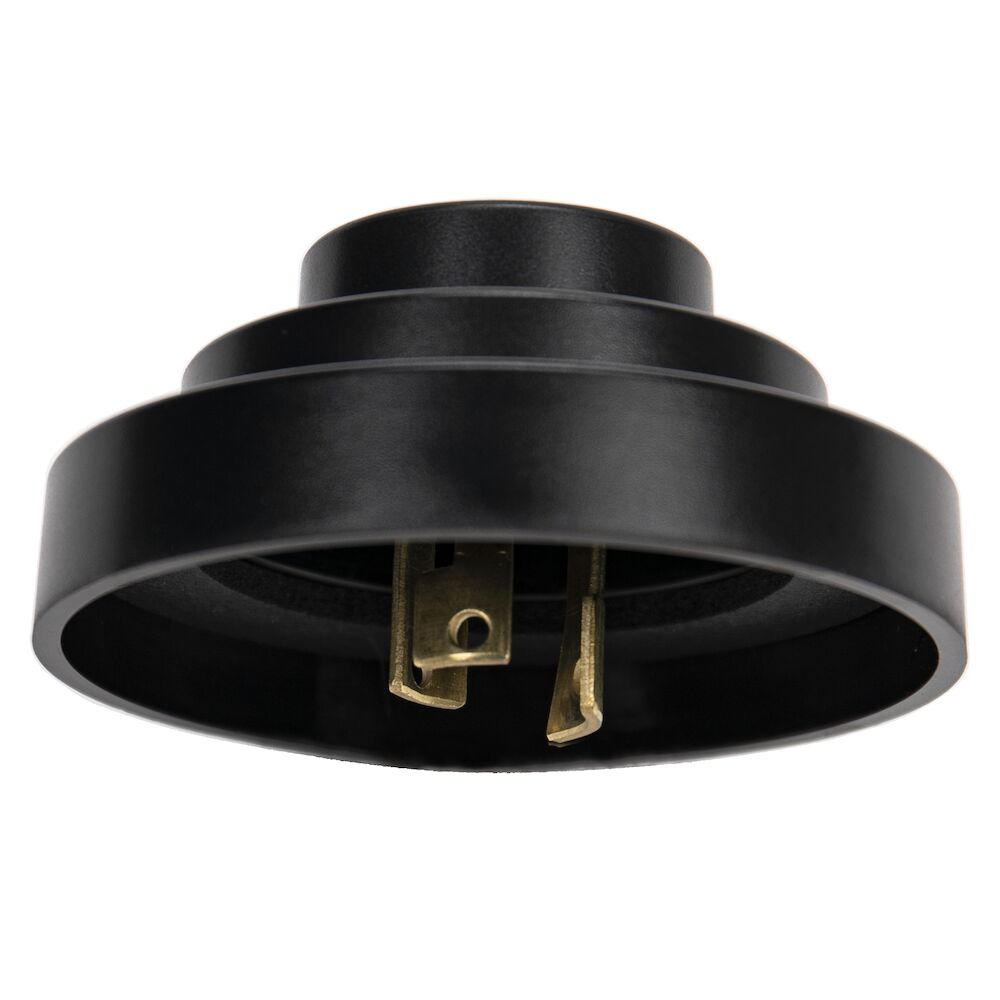

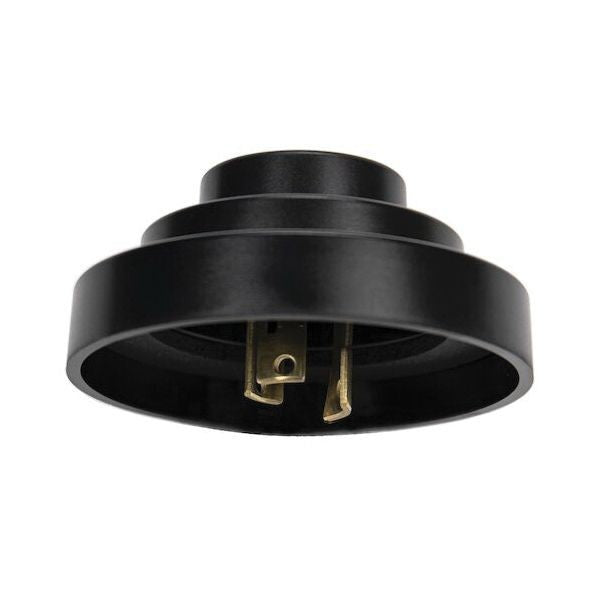

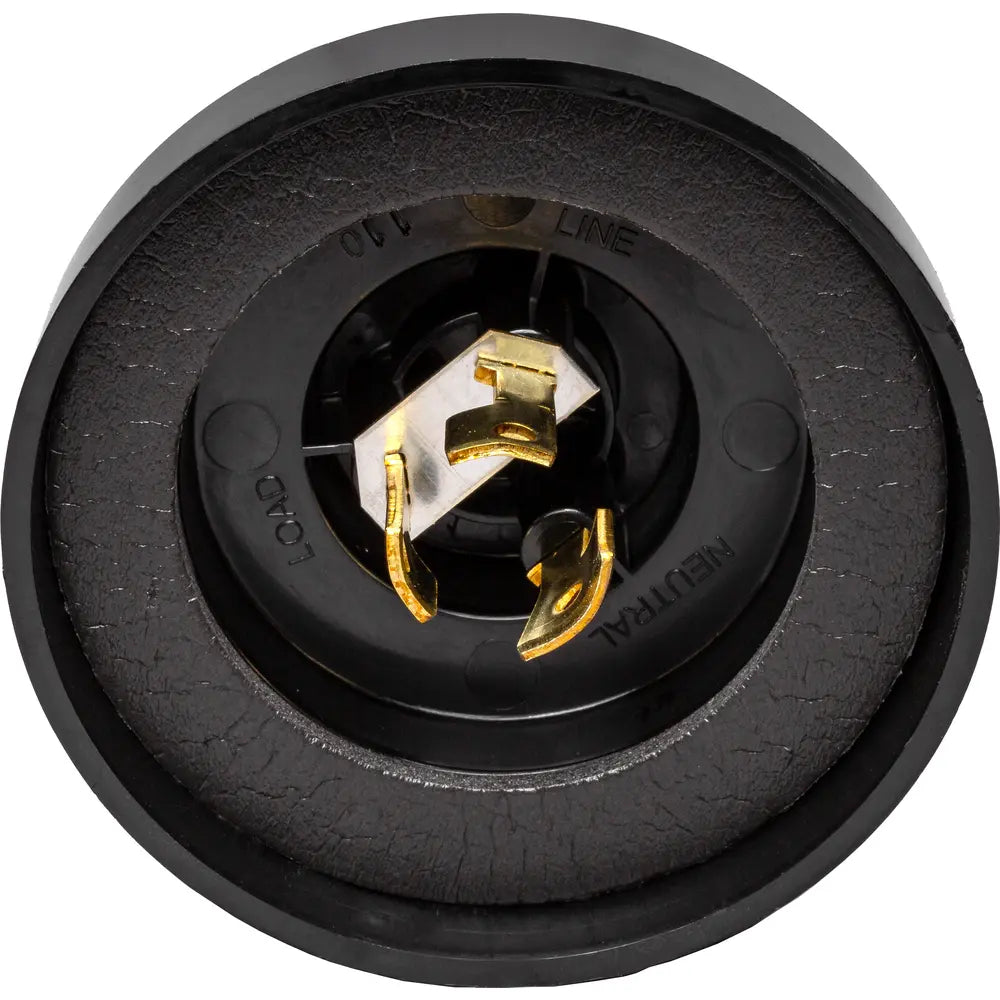

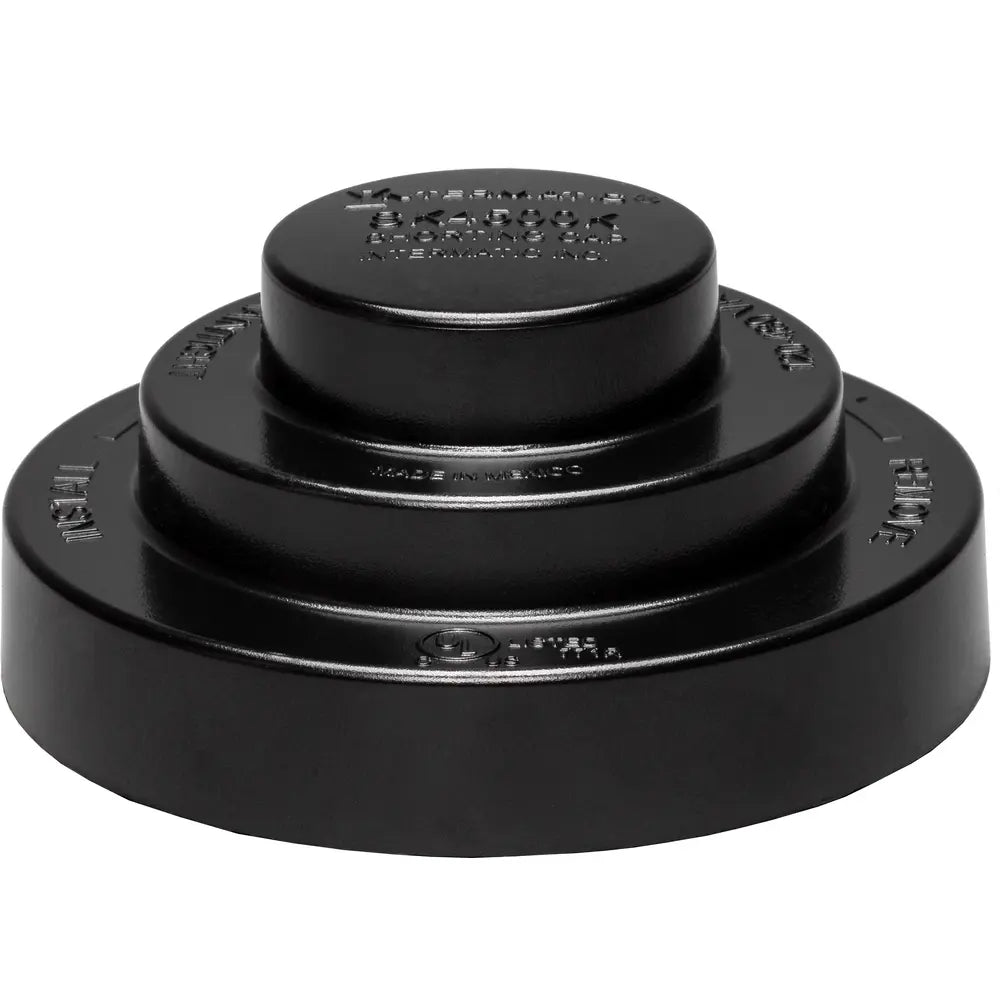

Intermatic SK4500K Cap Shorting 3-1/4 in Dia x 1-1/2 in H Replaces K4500

Product Description

The INTERMATIC SK4500K Shorting Cap is a low profile, locking type photocontrol cap designed for use with locking type receptacles. Constructed from polycarbonate, this cap closes the receptacle connectors of individual fixtures. It allows a series of lights to perform as a collective unit, ensuring they remain permanently ON, while also protecting the receptacle from outdoor elements. This cap is suitable for various lighting control applications.

• Fits standard locking-type receptacles
• Constructed with polycarbonate housing
• Keeps lights permanently ON

Product Highlights

Low profile design protects locking type receptacles from outdoor elements, ensuring continuous light operation.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: SK4500K
• Country of Origin: Mexico

Technical Specifications

• MPN: SK4500K
• Brand: INTERMATIC
• Category: Turn-Lock Shorting & Non Shorting Caps
• Type: Low Profile Photocontrol
• Suitable For Use With: Locking Type Receptacles
• Operating Temperature: -40 to 158 deg F
• Material: Polycarbonate
• Sensor Type: Non-Sensing
• Mounting Type: Twist Lock
• Certifications: cULus, ANSI C136.10, RoHS, PROP65
• Connection Type: NEMA 3-Pin
• Input Voltage: 480 VAC
• Frequency: 50/60 Hz
• Power Consumption: 0 Watts
• Environmental Rating: Wet/Dry Location
• Amperage: 15 Amp
• Used With: Lock Photo Controls
• Application: Power Extension, Traffic Control, Outdoor Lighting Control
• Item Type: Locking
• Color: Black
