Product Description

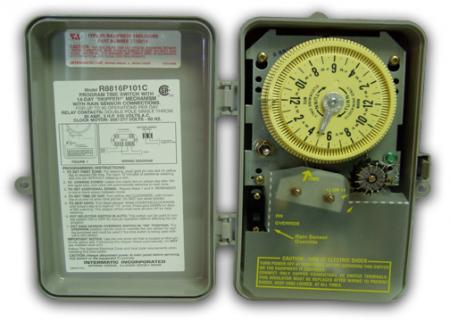

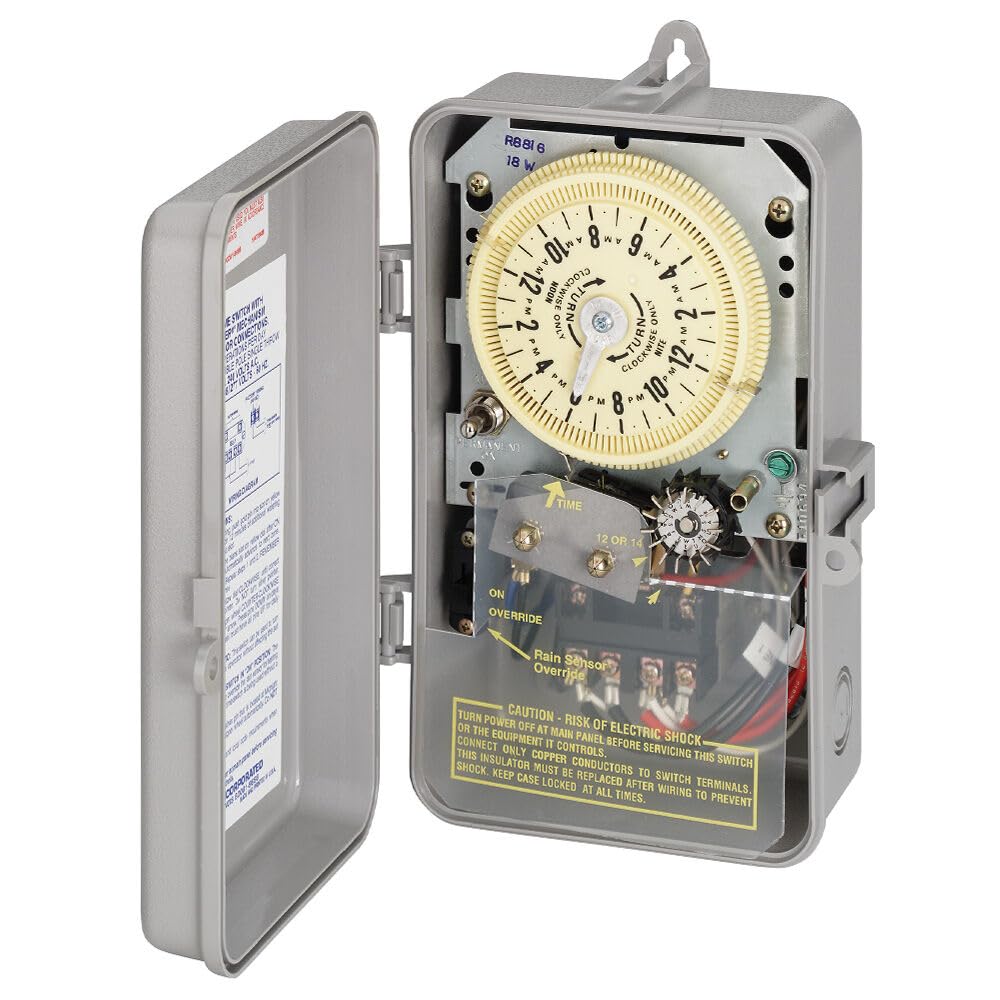

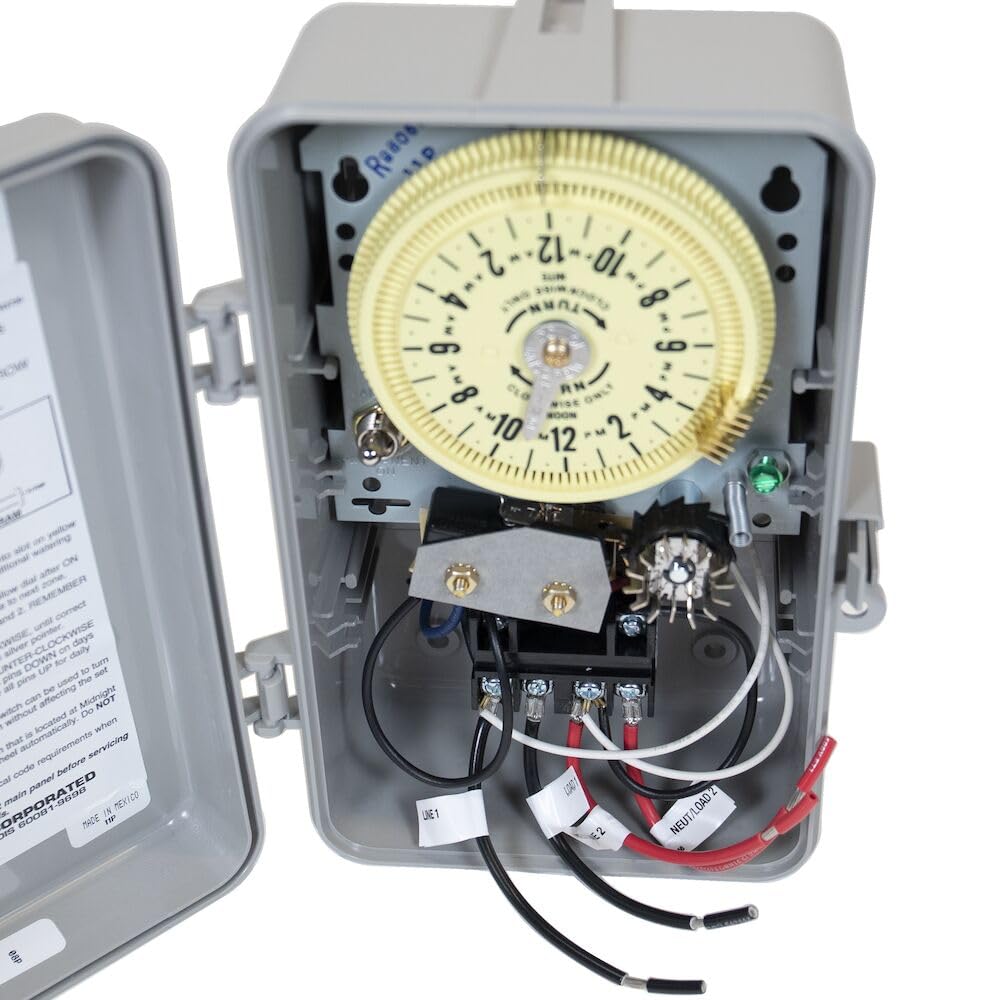

The INTERMATIC R8816P101C is a sprinkler and irrigation electromechanical timer designed to permit one to 44 "ON" operations every 24 hours. It provides watering increments down to 12 minutes or up to 20 hours and 45 minutes. This timer allows for biweekly scheduling with a 14-day skipper for water conservation and odd/even day compliance.
- Up to 44 ON/OFF settings per day
- Water metering increments from 12 minutes to 20 hours and 45 minutes
- 14-Day skipper enables irrigation to be omitted on selected day(s)
Product Highlights
This electromechanical timer is ideal for agriculture feeders, greenhouse misting control, and landscape water control.
Product Information
Standard Information
-
Brand: INTERMATIC
-
Manufacturer Part Number: R8816P101C
-
Country of Origin: Mexico
Technical Specifications
-
Type: Sprinkler and Irrigation Electromechanical
-
Brand: Intermatic
-
Depth: 4 Inch
-
Width: 6.5 in
-
Action: DPST
-
Height: 10 Inch
-
Voltage: 208-277 VAC
-
Amperage: 25 Amp
-
Standard: CCSAus Certified
-
Enclosure: NEMA 3R Plastic
-
Frequency: 60 Hz
-
Switch Type: DPST
-
Applications: Agriculture Feeders,Greenhouse Misting Control,Landscape Water Control
-
Input Voltage: 208/277 V
-
Mounting Type: Bracket Mount
-
Number of Poles: 2 Pole
-
Contact Configuration: 2 NO
-
Operating Temperature: -40 To 130 degrees F
-
Max Operating Temperature: 130 degrees F
-
Catalog Number: R8816P101C
-
Manufacturer: Intermatic
-
Amperage Rating: 25 A
-
Application: Irrigation/Sprinkler Pump Control
-
Mounting: Bracket Mount
-
Special Features: Features: On/Off Automatic Switch Enables Shutdown During Rainy Days and Extended Watering During Dry Periods Without Disturbing the Cycle Set on Dial
-
Item Type: Sprinkler and Irrigation Electromechanical
-
Timing Range: 12 MIN - 20 HR and 45 MIN/14 DAYS
-
Voltage Rating: 208 to 277 VAC
-
Display Type: Analog
-
Horsepower: 3 hp
-
Panel Mounting: Panel
-
Series: R8800
-
Temperature Rating: -40 to 130 deg F
-
Time Setting: 12 min to 20 hr, 45 min, 14 days
-
Mechanical: Mechanical
-
Input Voltage Range(s): 240 VAC, 60 Hz
-
MaximumOnOffOperations: 44
-
Mechanism Type: Analog/Mechanical
-
Enclosure Type: Indoor/outdoor type 3R plastic
-
Minimum ON/OFF Times: 12 min
-
Maximum ON/OFF Times: 20 hours, 45 minutes
-
Amps Per Pole: 30 A
-
Clock Motor Voltage: 208/277 VAC, 60 Hz
-
HP: 3
-
Knockout Dimensions Back: (1) combination 1/2" - 3/4"
-
Knockout Dimensions Bottom: (2) combination 1/2" - 3/4"
-
Load Voltage: 240 VAC, 60 Hz
-
Motor Load Ratings (Ranges): 3 HP @ 240 VAC, 60 Hz
-
Number of Trippers Included: 12
-
Tripper Actuating Time: 12 min
-
Operating Temperature Max (°C): 54
-
Operating Temperature Max (°F): 130
-
Operating Temperature Min (°C): -40
-
Operating Temperature Min (°F): -40
-
Product Depth (in): 4
-
Product Height (in): 10
-
Product Width (in): 6.5
-
Product Type: Mechanical Timer
-
Ratings and Certifications: CSA
-
Housing: Plastic
-
NEMA: 3R
-
Set Points: 1 to 60 On Every 24 Hrs.
-
Sold Separately: Additional Trippers and Pins
