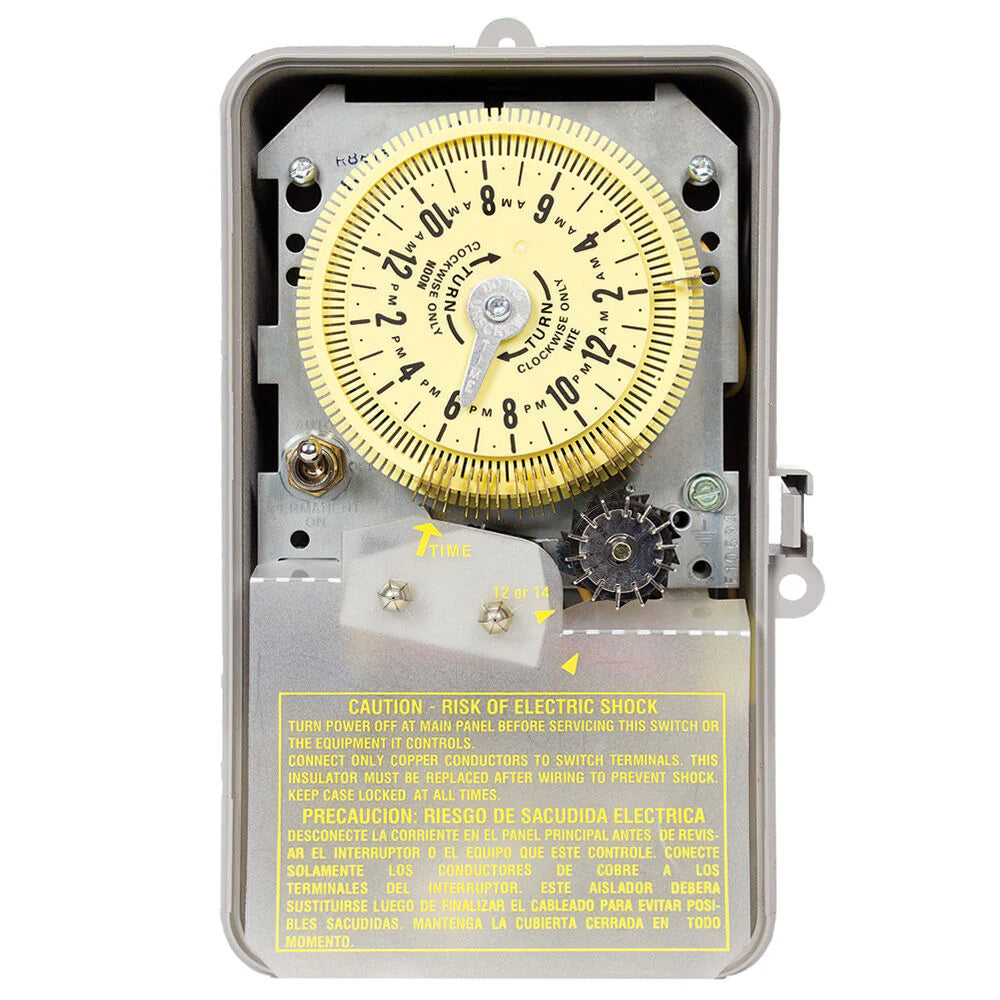

Intermatic R8815P101C Nema 3R Plastic Case 125 Vac 60 Hz 25 Amp DPST Electromechanical Time Switch with Rain Sensor Terminal

Product Description

The Intermatic R8815P101C is a time switch designed to control irrigation systems. This device operates at one hundred twenty volts alternating current and supports a maximum current of twenty-five amps. It features a double pole single throw (DPST) configuration, allowing for efficient water management. The unit is capable of up to forty-four ON and OFF settings each day, which helps manage water distribution effectively.

• Features a rain sensor terminal.
• Offers watering increments ranging from twelve minutes to twenty hours and forty-five minutes.
• Constructed with a NEMA 3R plastic enclosure for outdoor durability.

Product Highlights

This product supports alternate-day scheduling and can skip watering on selected days, promoting water conservation.

Product Information

Standard Information

• Catalog Number: R8815P101C
• Brand: Intermatic

Technical Specifications

• Voltage: 120 Volt
• Amperage: 25 Amp
• Operating Temperature: -40 to 130 degrees Fahrenheit
• Enclosure: NEMA 3R Plastic
• Action: DPST
• Frequency: 60 Hz
• Applications: Sprinkler and irrigation control
• Warranty Length: 1 year
