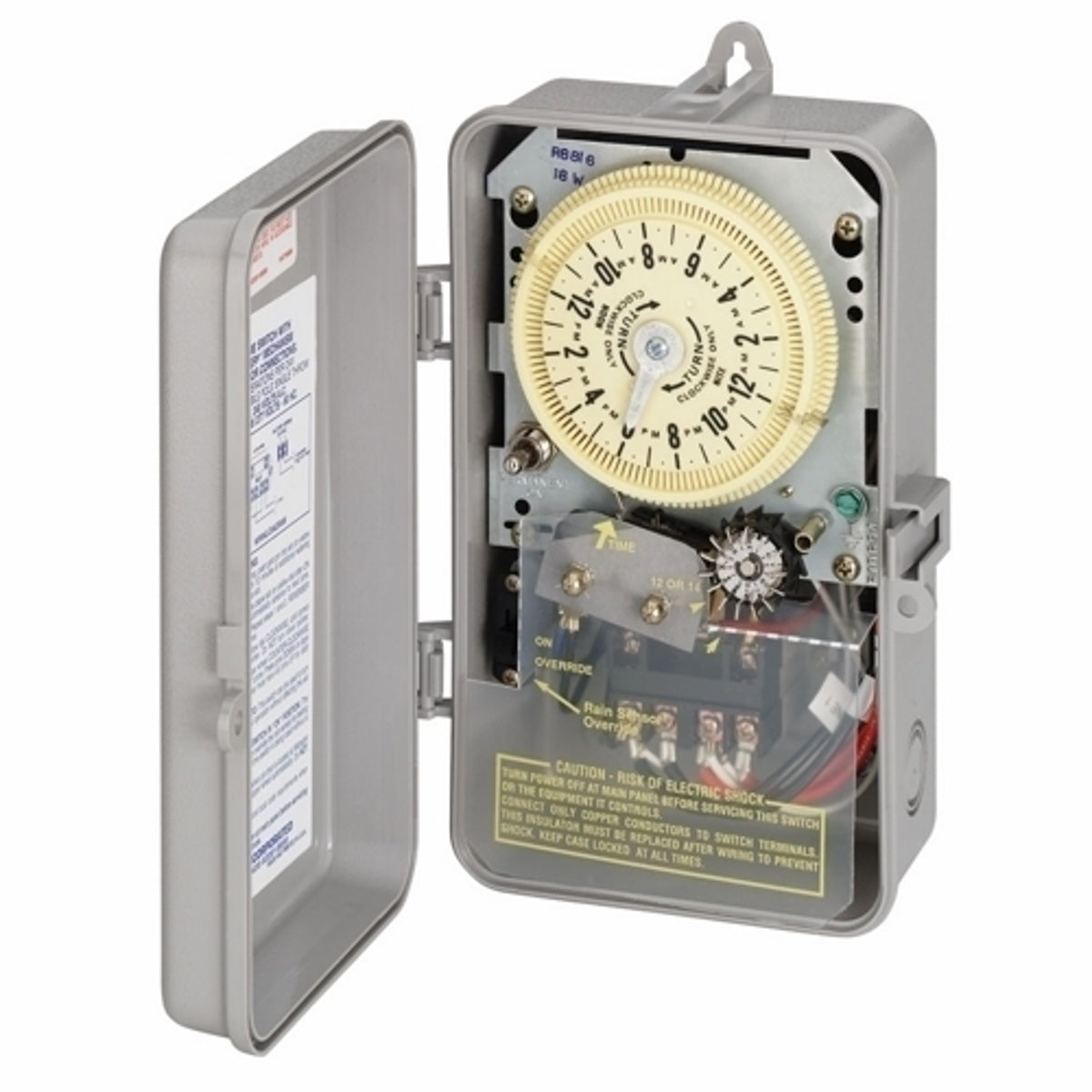

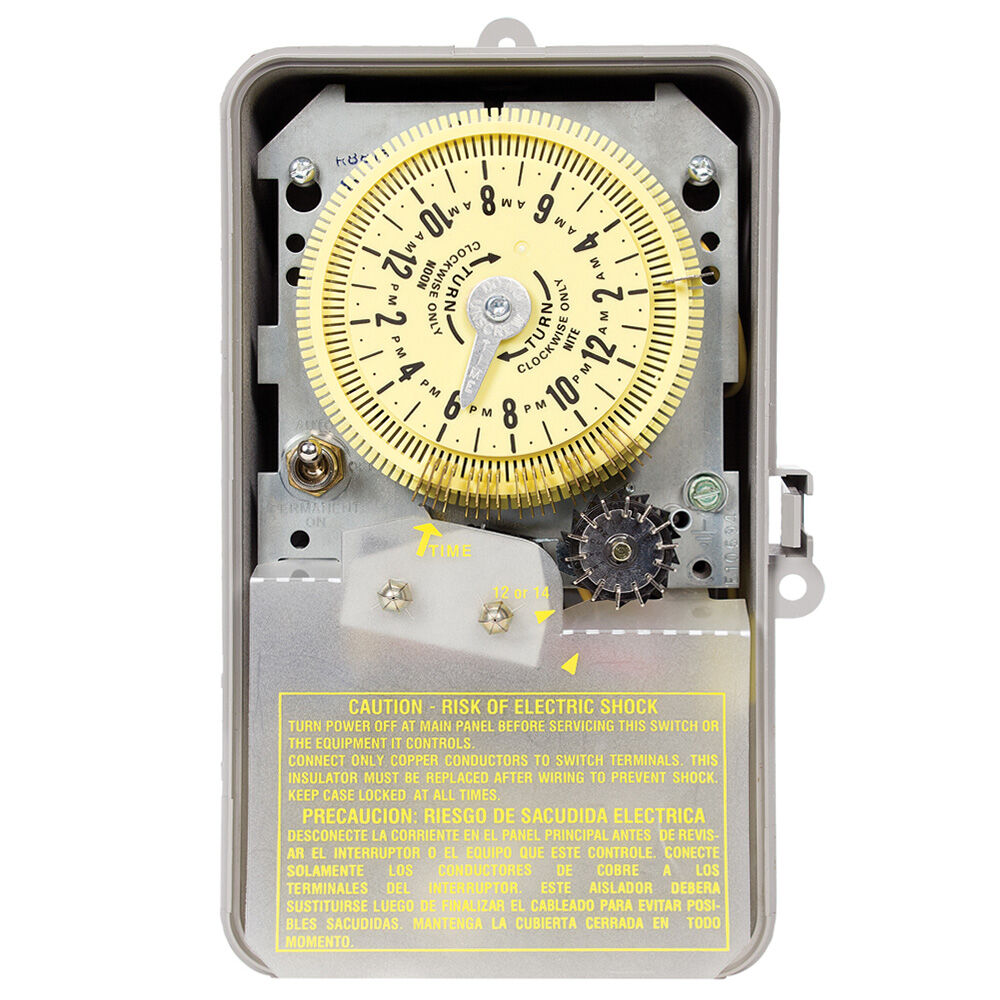

Intermatic R8806P101C NEMA 3R Plastic Case 208 to 277 VAC 60 Hz 25 Amp DPST Electromechanical Time Switch

Product Description

The Intermatic R8806P101C is a time switch designed for irrigation control. It operates on a voltage range of 208 to 277 VAC, making it suitable for various applications. The device allows for up to 44 ON operations every day and can set watering increments from twelve minutes to twenty hours and forty-five minutes. This model also offers a biweekly scheduling option through its 14-day skipper feature, promoting water conservation and compliance with odd/even day watering regulations.

• Up to 44 ON/OFF settings per day
• Water metering increments from twelve minutes to twenty hours and forty-five minutes
• 14-Day skipper enables irrigation to be omitted on selected day(s)

Product Highlights

The R8806P101C includes features for efficient irrigation management. It has an ON/OFF/AUTO switch for easy operation during changing weather conditions.

Product Information

Standard Information

• Brand: Intermatic
• MPN: R8806P101C

Technical Specifications

• Voltage: 208-277 VAC
• Amperage: 25 Amp
• Type: DPST
• Dimensions: Four inches deep, six point five inches wide, ten inches tall
• Enclosure: NEMA 3R Plastic
• Operating Temperature: -40 to 130 degrees F
• Frequency: 60 Hz
• Warranty Length: One year
