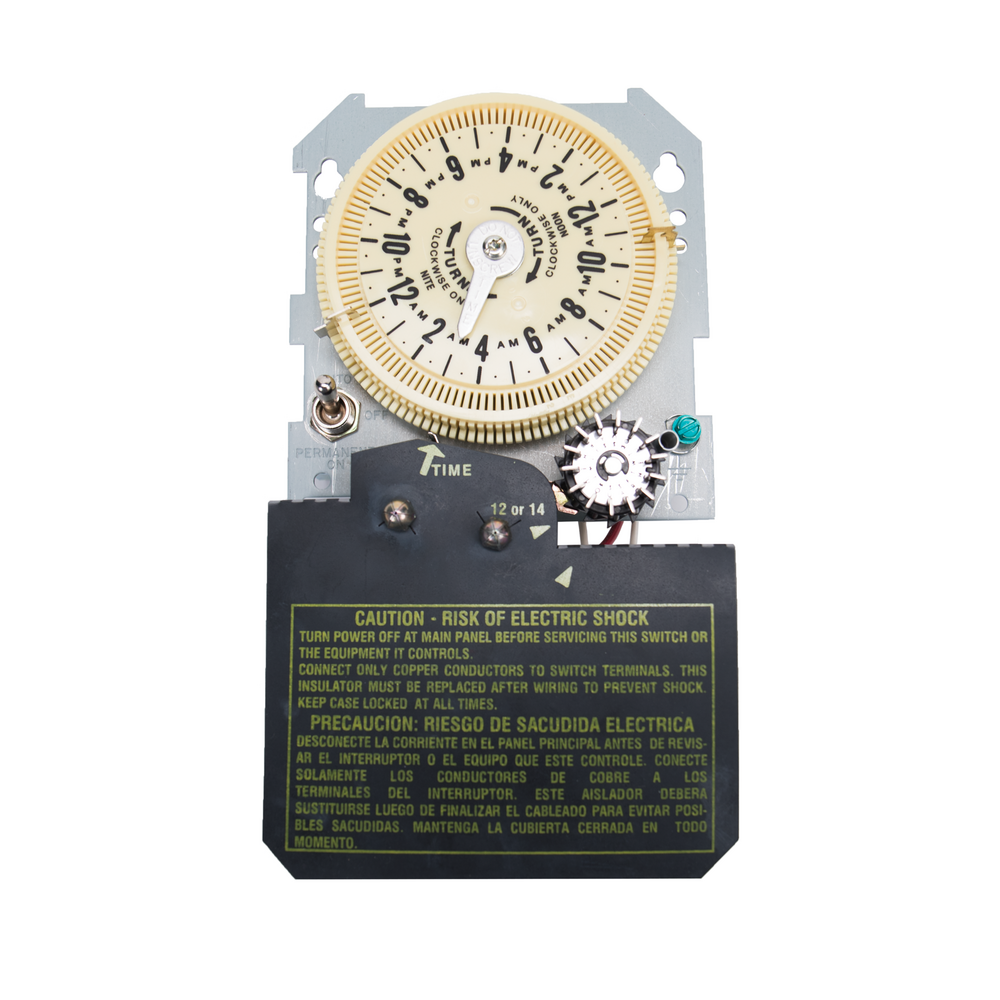

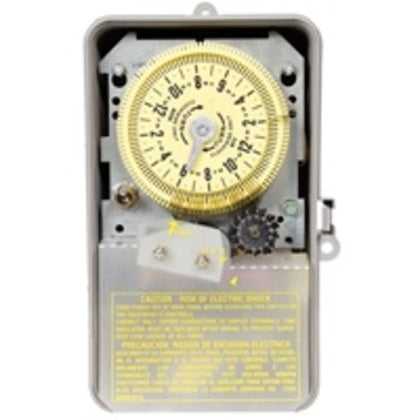

Intermatic R8806-M101C Sprinkler/Irrigation Time Switch with 14-Day Skipper - Mechanism Only

Product Description

The INTERMATIC R8806-M101C sprinkler/irrigation timer is designed to permit one to 44 "ON" operations every 24 hours. It provides watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper.

• Up to 44 ON/OFF settings per day
• Water metering increments from 12 minutes to 20 hours and 45 minutes
• 14-Day skipper enables irrigation to be omitted on selected day(s)

Product Highlights

Ideal for agriculture feeders and greenhouse misting control, this timer allows for alternate-day scheduling and features an ON/OFF/AUTO switch for easy control.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: R8806-M101C
• Country of Origin: MEXICO

Technical Specifications

• Minimum ON/OFF Times: 12 min
• Maximum ON/OFF Times: 20 hours, 45 minutes
• Mechanism Type: Analog/Mechanical
• Switch Type: DPST
• Amperage: 30 A
• Clock Motor Voltage: 240 VAC, 60 Hz
• Country of Origin (Intermatic): MEXICO
• CSA Certification: cCSAus
• HP: 2
• Load Voltage: 240 VAC, 60 Hz
• Number of Trippers Included: 12
• Off Events: 60
• On Events: 60
• Total Events: 120
• Tripper Actuating Time: 12 min
• Operating Temperature Max (°C): 54
• Operating Temperature Max (°F): 130
• Operating Temperature Min (°C): -40
• Operating Temperature Min (°F): -40
• Product Depth (in): 4
• Product Height (in): 10
• Product Width (in): 6.5
• Input Voltage Range(s): 240 VAC, 60 Hz
• Maximum ON/OFF Operations: 44
• Amps Per Pole: 30 A
• Horsepower: 2
• Brand: Intermatic
• Manufacturer Part Number: R8806M101C
