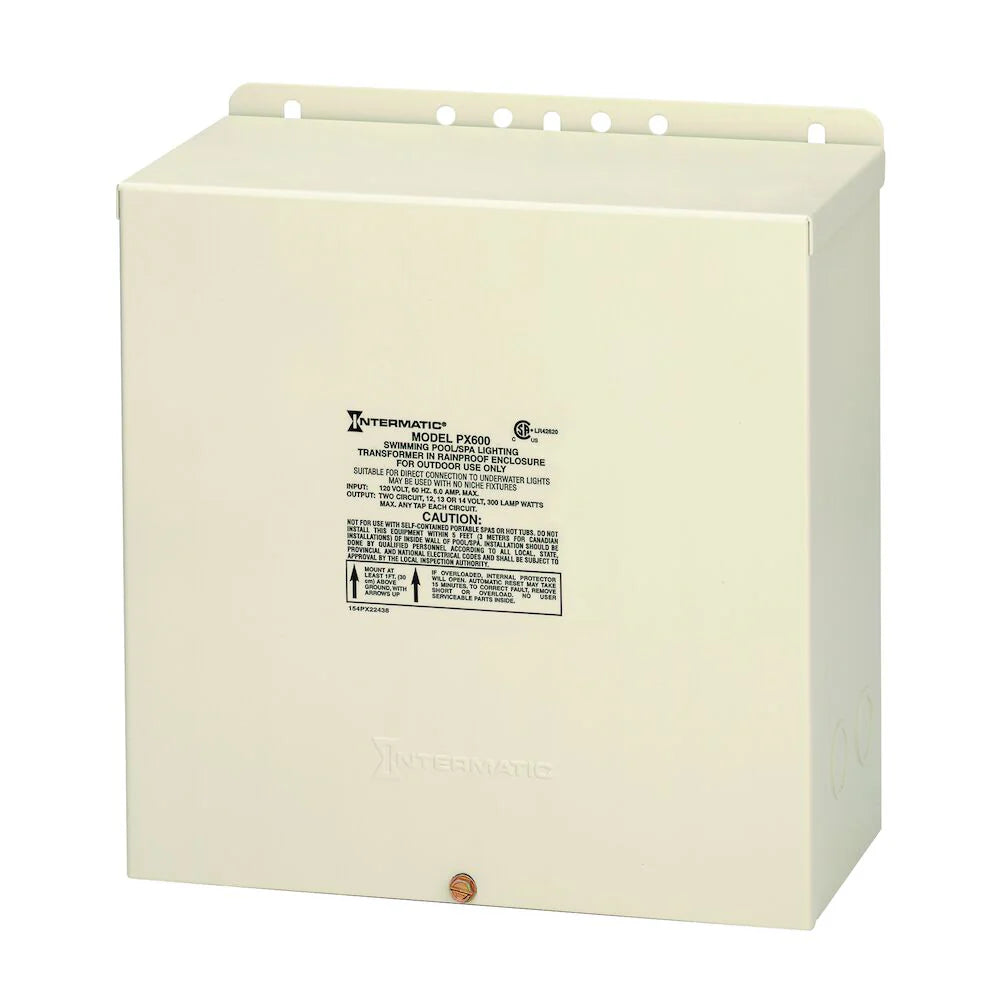

Intermatic PX600 120 VAC 6 Amp Primary 14 VAC Secondary 600 W Safety Transformer

Product Description

The Intermatic PX600 is a safety transformer designed for use in pool and spa lighting applications. This transformer operates on 120 VAC input and provides a safe and reliable output of 12 to 14 VAC. With a grounded shield between primary and secondary windings, it ensures safe operation. The built-in circuit protection disconnects power in case of overload, preventing potential hazards.

• Input Voltage: 120 VAC
• Output Voltage: Selectable 12 VAC, 13 VAC, or 14 VAC
• Wattage: 600 Watt

Product Highlights

This transformer is compliant with NEC Code 680.23 requirements for underwater luminaries. It's designed with a Type 3R steel enclosure and is suitable for various outdoor applications, including garden lighting and fountains.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• MPN: PX600
• Frequency: 60 Hz
• Current Rating: 6 AMP
• Dimensions: 10 inches Height x 10 inches Width x 5 inches Depth
• Enclosure Type: Type 3R Steel
• Safety Certification: cCSAus Certified
• Applications: Pool or Garden Lighting, Spa Lighting, Fountain Lighting
• Country of Origin: Mexico
