Intermatic PJBX52100 COMBOConnect Junction Box with 100W Transformer

Product Description

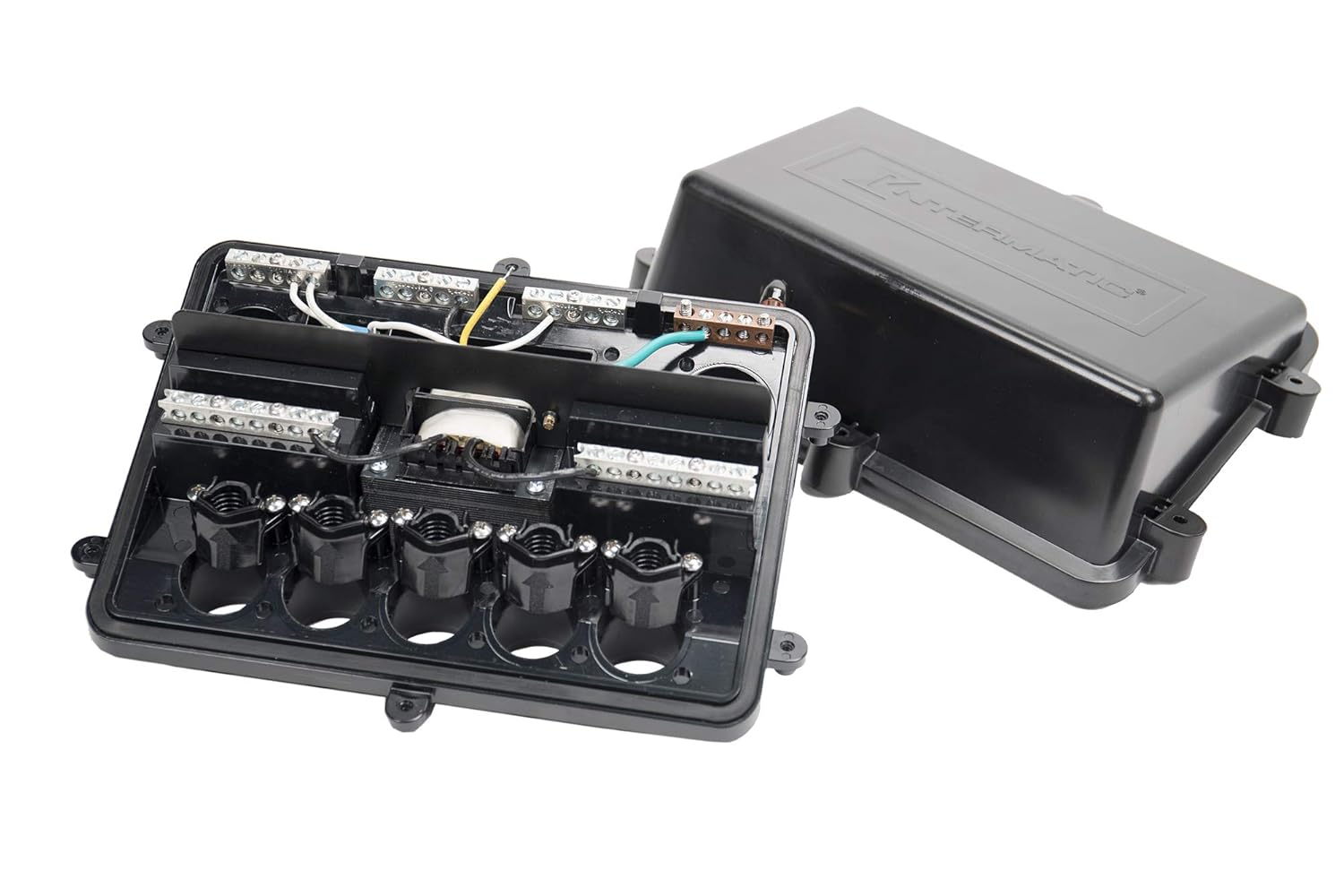

The Intermatic PJBX52100 is a versatile combination of a standard junction box and a low-voltage transformer, specifically designed for pool and spa applications. This product is compact and efficient, fulfilling multiple electrical needs in one unit.

• Patented design merging junction box and transformer
• Two high-voltage and five low-voltage openings
• Built-in electronic noise reduction

Product Highlights

This junction box transformer hybrid features a compact design that saves space and makes it suitable for restricted access areas. With voltage options of 12 or 13 volts, it can handle various applications including nicheless low-voltage lights, landscape lighting, and fountain lighting. The unit is built with a focus on easy access to connection points and noise reduction to enhance LED performance.

Product Information

Standard Information

• Brand: Intermatic
• MPN: PJBX52100
• Dimensions: 11-3/4 inches L x 8-1/2 inches W x 4-1/4 inches H
• Weight: 6.1 pounds

Technical Specifications

• Input Voltage: 120 VAC
• Output Voltage: 12/13 VAC
• Amperage Rating: 1 A
• Wattage: 100 W
• Frequency Rating: 60 Hz
• Mounting Type: Post/Rod/Wall
• Application: In-Ground Pools, Spas, Landscape Lighting, Fountain Lighting
• Country of Origin: Mexico
• UPC: 078275149380
• Compliance: NEC Code 680.24 and NEC 411
• Special Features: Built-in safety transformer, electronic noise reduction, easily accessible connections
