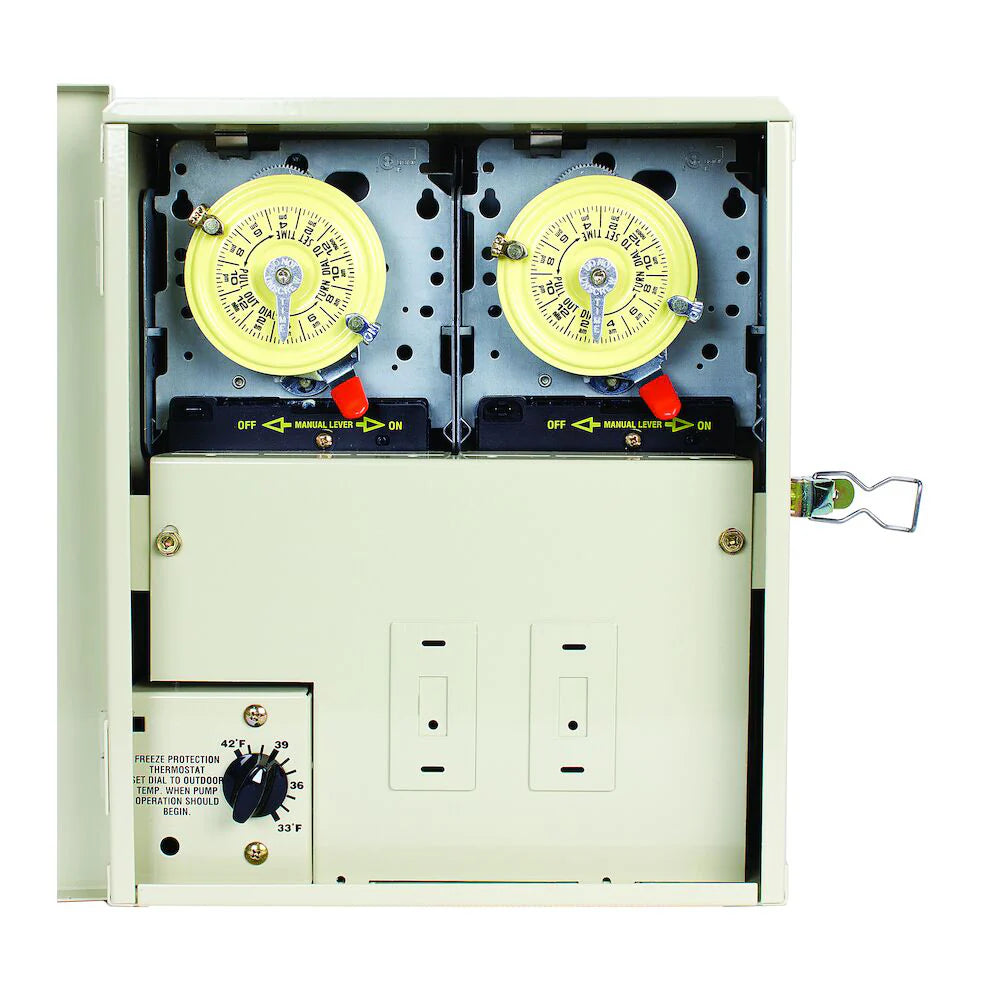

Intermatic PF1202T Freeze Protection Control for Pools with Cleaner Requires 2 Time Switch

Product Description

The Intermatic PF1202T serves as a freeze protection control for pools. This device operates at a voltage of 240 VAC and is designed to protect pool and spa equipment from freezing temperatures. It includes two time switches to manage operations based on environmental conditions. When the outdoor temperature falls below the user-adjustable thermostat setting, the control activates, turning on the pump and heater to prevent damage.

• Protects pool/spa equipment against freeze damage.
• Features GFCI and switch mounting capabilities.
• Equipped with heavy-duty Type 3R metal indoor/outdoor enclosure.

Product Highlights

The Intermatic PF1202T is crucial for maintaining pool equipment in colder conditions. It ensures reliable operation during low temperatures and prevents potential freeze damage.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PF1202T
• Voltage: 240 VAC
• Amperage: 92 (Per Leg), 168 Max AMP
• Contact Rating: 30 AMP @ 120/208/240 VAC
• Dimensions: 12 inches H x 12.875 inches W x 4.25 inches D
• Height: 12 inches
• Width: 12.875 inches
• Depth: 4.25 inches
