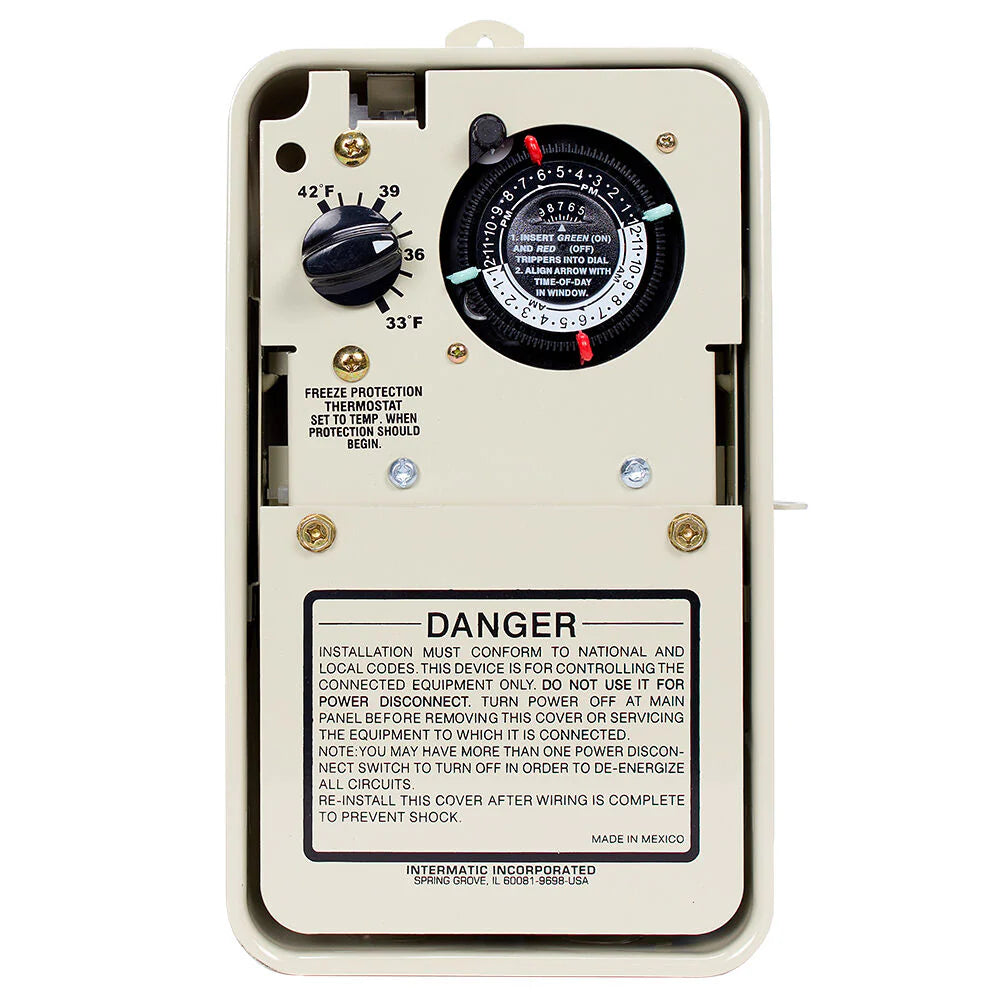

Intermatic PF1102T Timer Mechanism Installation Timer with Thermostat

Product Description

The Intermatic PF1102T Timer Mechanism with Thermostat is designed to protect pool and spa equipment from freeze damage. This 240 Volt installation timer ensures the pump and heater activate when the temperature drops below the set point.

• Prevents freeze damage to pool and spa equipment.
• Activates pump and heater when temperatures are low.
• Includes thermostat for temperature control.

Product Highlights

The Intermatic PF1102T offers reliable freeze protection for pool and spa equipment. Its adjustable thermostat activates the pump and heater when outdoor temperatures drop. Housed in a rainproof steel enclosure, it is suitable for a variety of water feature applications.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc
• Country of Origin: Mexico
• Warranty: 1 year

Technical Specifications

• Voltage: 240 VAC
• Power Rating: 3 hp
• Enclosure: Type 3R Steel
• Dimensions: 9-5/8 in height, 5-1/4 in width, 3-5/8 in depth
• Applications: Pool/Spa Control, Pump Control
• Contact Configuration: 2 NO
• Operating Temperature: 42 degrees F
