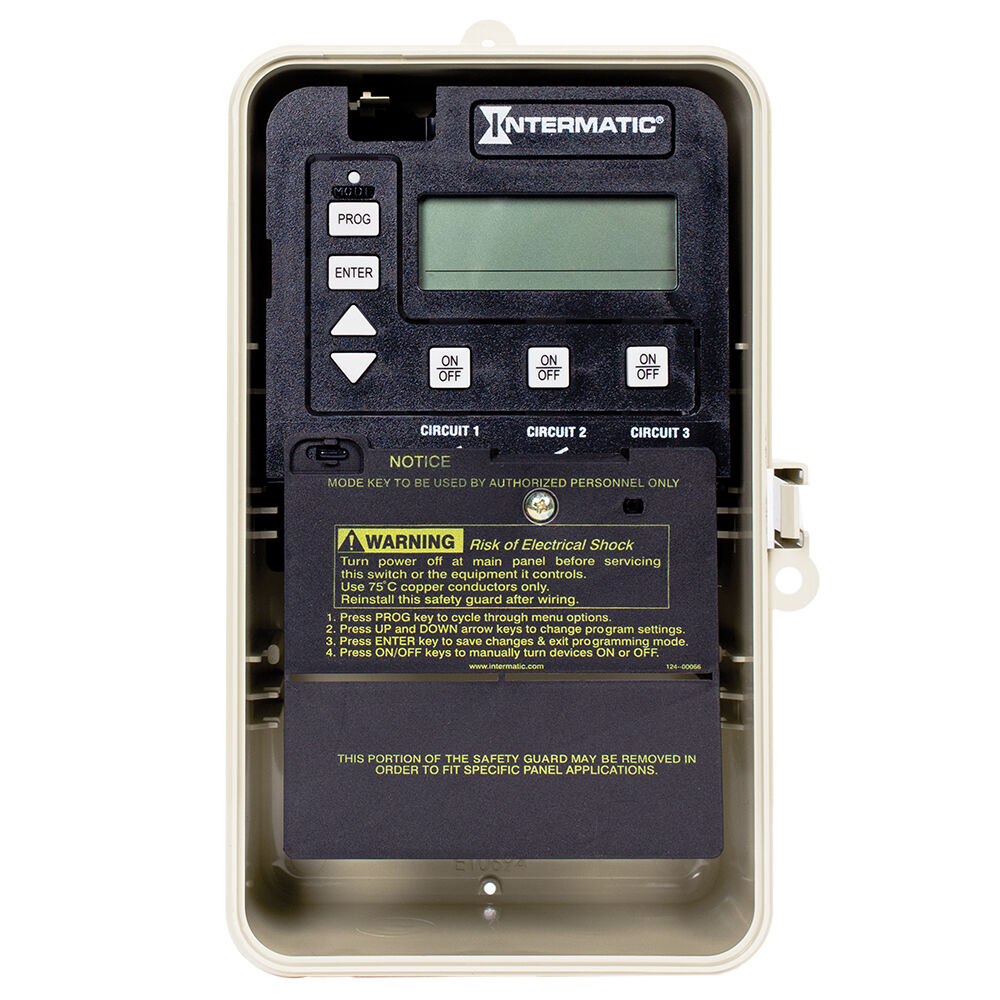

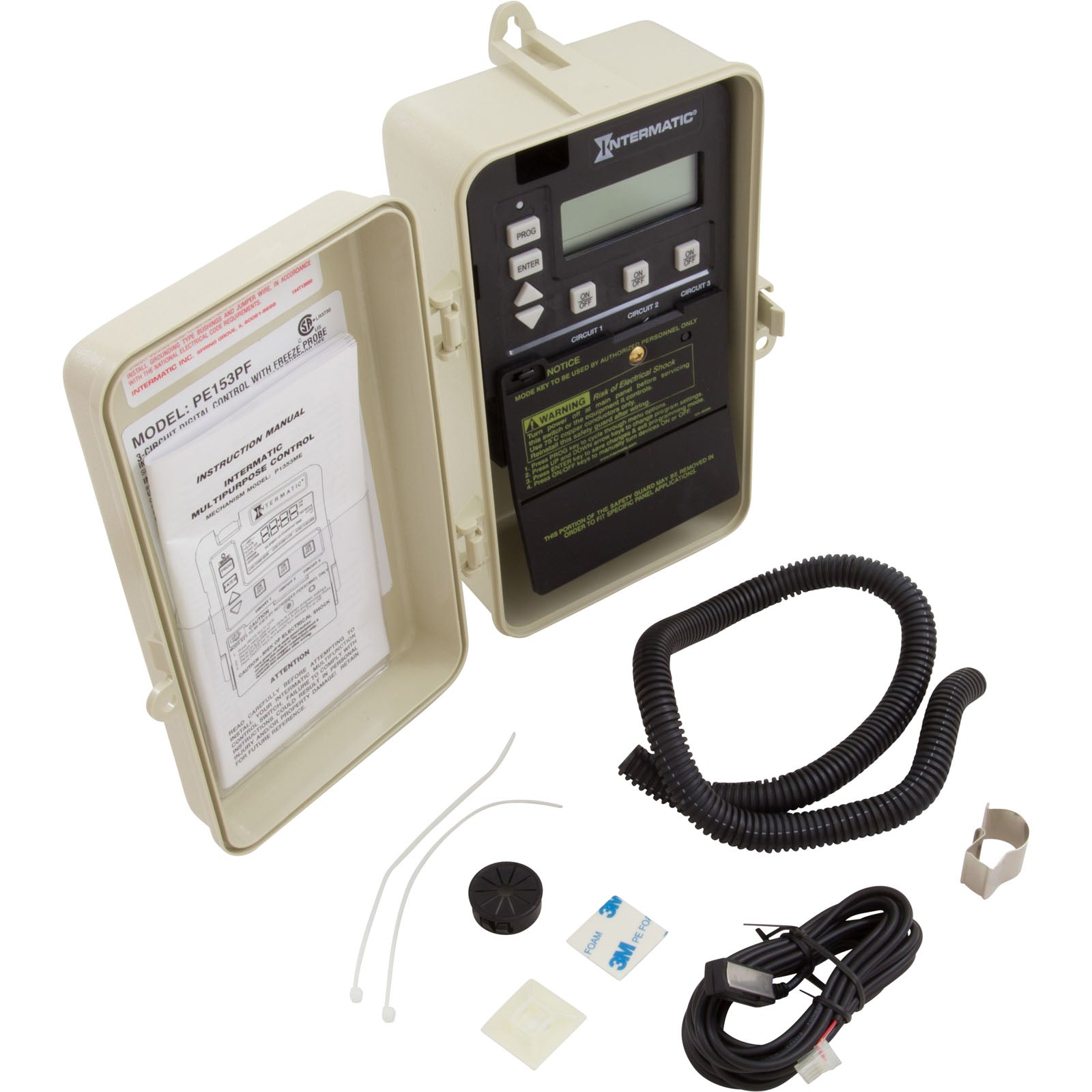

Intermatic PE153PF 24-Hour Electronic Time Control 3 Circuit Freeze Protection

Product Description

The Intermatic PE153PF is a 24-hour electronic time control designed for versatile applications. This timer can switch loads automatically based on a daily schedule, making it ideal for managing equipment like single- and two-speed pumps and cleaner/booster pumps. The device enables up to three ON/OFF events per circuit each day, ensuring efficient operation.

• Controls single- and two-speed pumps and cleaner/booster pumps.
• Supports three ON/OFF events per circuit every day.
• Equipped with seven preprogrammed modes and additional functionalities.

Product Highlights

This timer includes freeze and heater protection, an LCD readout, and accommodates multivolt input and output. Countdown and override features allow for temporary changes without reprogramming.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Canada

Technical Specifications

• MPN: PE153PF
• Voltage: 120/240 VAC
• Number of Circuits: 3
• Mounting Type: Wall Mount
• Action: SPDT
• Enclosure Material: Type 3R Plastic
• Contact Rating: 17 AMP @ 120/240 VAC
• Operating Temperature: -20 to +130 degrees F
