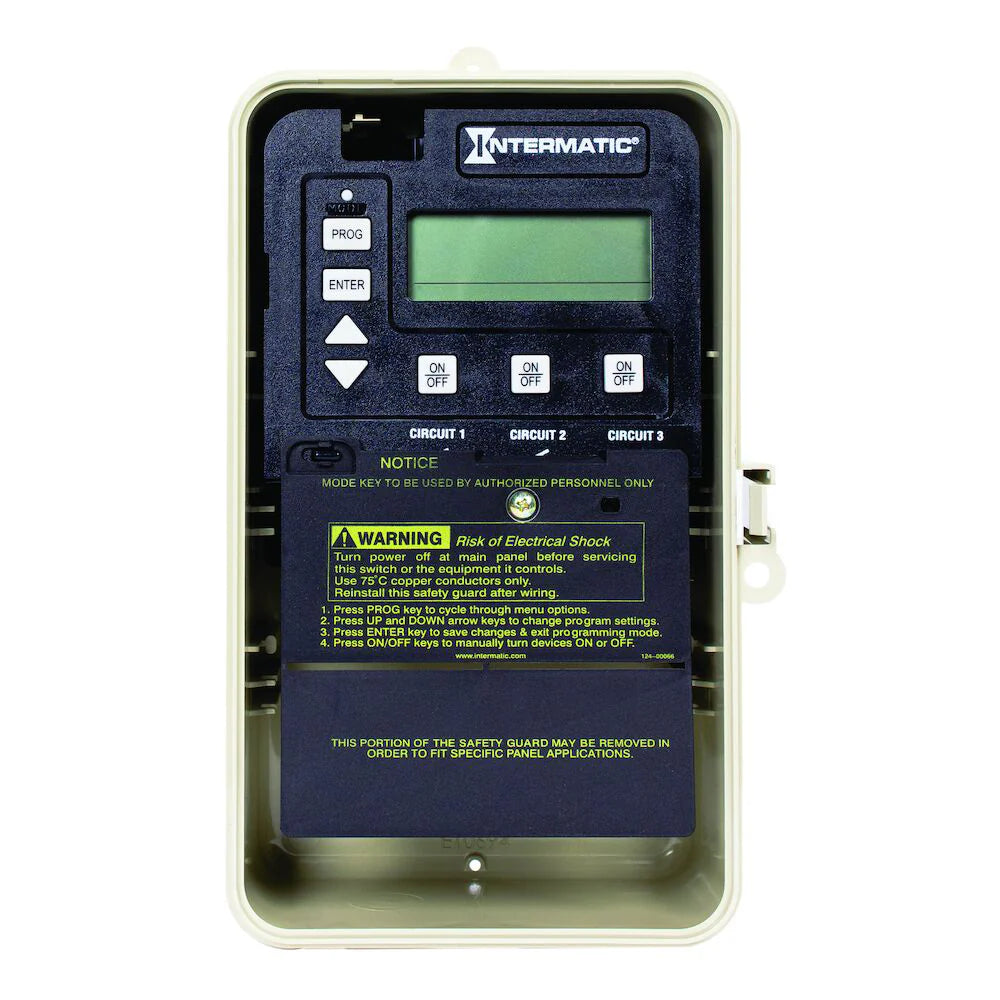

Intermatic PE153P NEMA 3 Plastic Case 120/240 VAC 50/60 Hz 17 Amp Digital 3-Circuit Time Switch

Product Description

The Intermatic PE153P is a digital 3-circuit time switch designed for controlling pumps and appliances on a preset schedule. It supports both single and two-speed pumps as well as cleaner and booster pumps. This versatile control can automate up to three ON/OFF events per circuit per day, making it ideal for pool and spa applications.

• Controls multiple pump types including single and two-speed pumps.
• Programmable for three ON/OFF events per circuit daily.
• Equipped with freeze and heater protection features.

Product Highlights

This device is compliant with the cCSAus standard and is Title 20 compliant, ensuring safety and reliability in environmental controls.

Product Information

Standard Information

• Brand: Intermatic
• MPN: PE153P

Technical Specifications

• Catalog Number: PE153P
• Voltage: 120/240 VAC
• Amperage Rating: 17 AMP
• Contact Rating: 17 AMP @ 120/240 VAC (Resistive), 5 AMP @ 120/240 VAC (Tungsten)
• Enclosure Type: Type 3R Plastic
• Dimensions: 9-3/8 inches x 5-1/2 inches x 3-5/8 inches
• Operating Temperature: -20 to 130 degrees F
• Mounting Type: Wall Mount
• Number of Circuits: 3
• Applications: Pump Control, Motor Control
• Frequency: 50/60 Hz
• Warranty Length: 1 year
