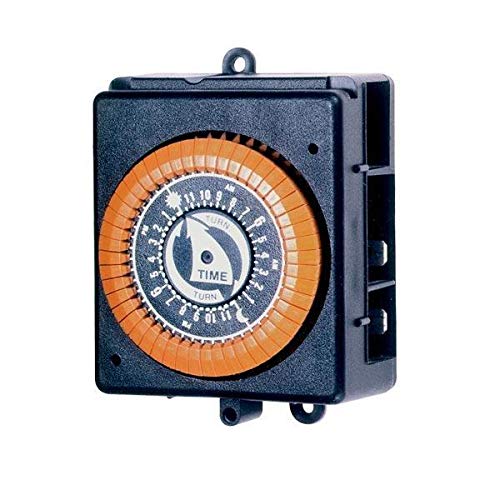

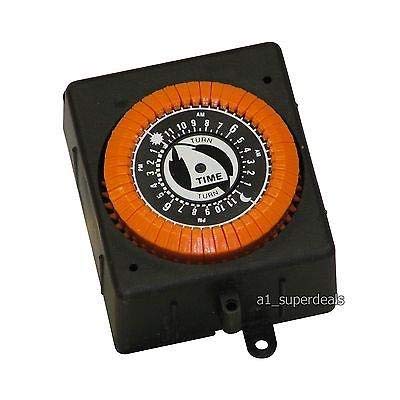

Intermatic PB914N Timer 20A Panel Mount 24HR 208-277V

Product Description

The Intermatic PB914N is a mechanical timer designed for controlling pumps, cleaners, and various electrical loads. This timer operates efficiently at a voltage range of 208 to 277 VAC and can handle a current rating of twenty amps. It features a panel mount design, allowing for easy installation in various settings.

• Voltage rating of 208 to 277 VAC
• SPST contact configuration
• Includes quick connect terminals for installation

Product Highlights

This timer is suitable for applications including filter pumps, booster pumps, sprinkler systems, heating systems, and lighting controls.

Product Information

Standard Information

• Catalog Number: PB914N
• Manufacturer: Intermatic

Technical Specifications

• Contact Rating: 20 AMP @ 120 - 277 VAC (Resistive), 1250 W @ 125 VAC (Tungsten)
• Mounting Type: Panel Mount
• Dimensions: 3-1/3 inches height x 2-13/16 inches width x 1-61/64 inches depth
• Number of Poles: 1
• Timing Range: 24 HR
• Special Features: Offers three different mounting methods
• Country of Origin: Mexico
• Standards/Approval: CSA, UL Listed, cCSAus Certified
