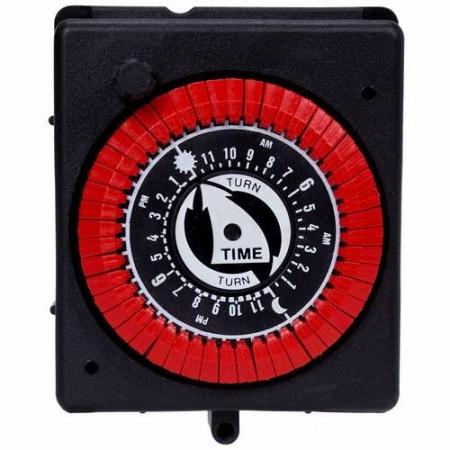

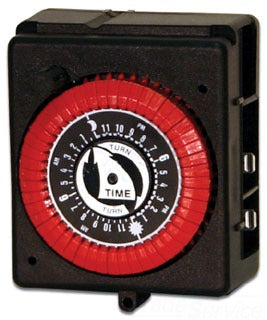

Intermatic PB913N66 Panel Mount Timer 120V SPST 24hr

Product Description

The Intermatic PB913N66 is a versatile panel mount timer designed for various automation tasks. With its 120V SPST configuration, this 24-hour timer ensures efficient control for different applications.

• Automation control for pumps and cleaners
• Quick connect terminals
• Three-way mounting options

Product Highlights

This timer provides automated control for a range of loads. It features quick connect terminals for easy installation and offers three mounting options: flush in round opening, raised in rectangular opening, or on base.

Product Information

Standard Information

• Brand: Intermatic
• Model: PB913N66
• Manufacturer: Intermatic, Inc
• Country of Origin: Mexico

Technical Specifications

• Voltage Rating: 120V
• Contact Configuration: SPST
• Contact Rating: 20 AMP @ 120 - 277 VAC (Resistive), 1250 WTT @ 125 VAC (Tungsten)
• Timing Range: 24 HR
• Mounting: Panel Mount
• Special Features: Automated Control, 3 Different Mounting Methods
• Dimensions: 3-1/3 inches H x 2-13/16 inches W x 1-61/64 inches D
• Standards: CSA, UL Listed, cCSAus Certified, UL Recognized
