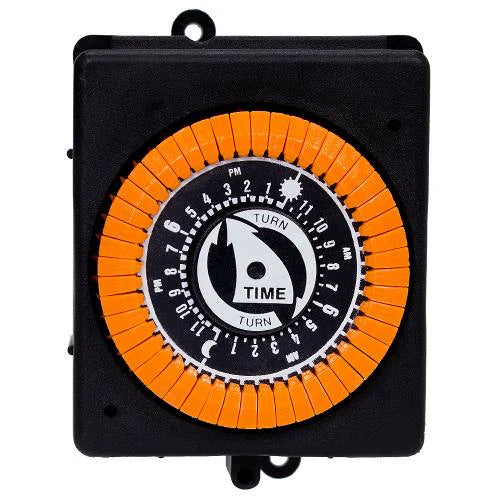

Intermatic PB913N 24 Hour 120 VAC 60 Hz 20 Amp SPST Panel Mount Timer

Product Description

The Intermatic PB913N is a 24-hour panel mount timer designed for controlling pumps, cleaners, and various other loads. This timer is suitable for users looking for reliable automatic control solutions in residential and commercial applications. Its design is suitable for three different types of mounting: flush in a round opening, raised in a rectangular opening, or on a base. The quick connect terminals simplify installation processes, making it an efficient choice.

• Automated control for various loads
• Compatible with multiple mounting methods
• Quick connect terminals for easy setup

Product Highlights

The PB913N supports both 24-hour and 7-day timing cycles, allowing flexibility in operation. It is CCSAus certified and UL listed, ensuring it meets safety standards.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage: 120 VAC
• Wattage: 1250 Watt
• Horsepower: 1 hp
• Action: SPST
• Frequency: 60 Hz
• Contact Rating: 20 AMP @ 120-277 VAC
• Number of Poles: 1
• Size: 3-1/3 inches height x 2-13/16 inches width x 1-61/64 inches depth
