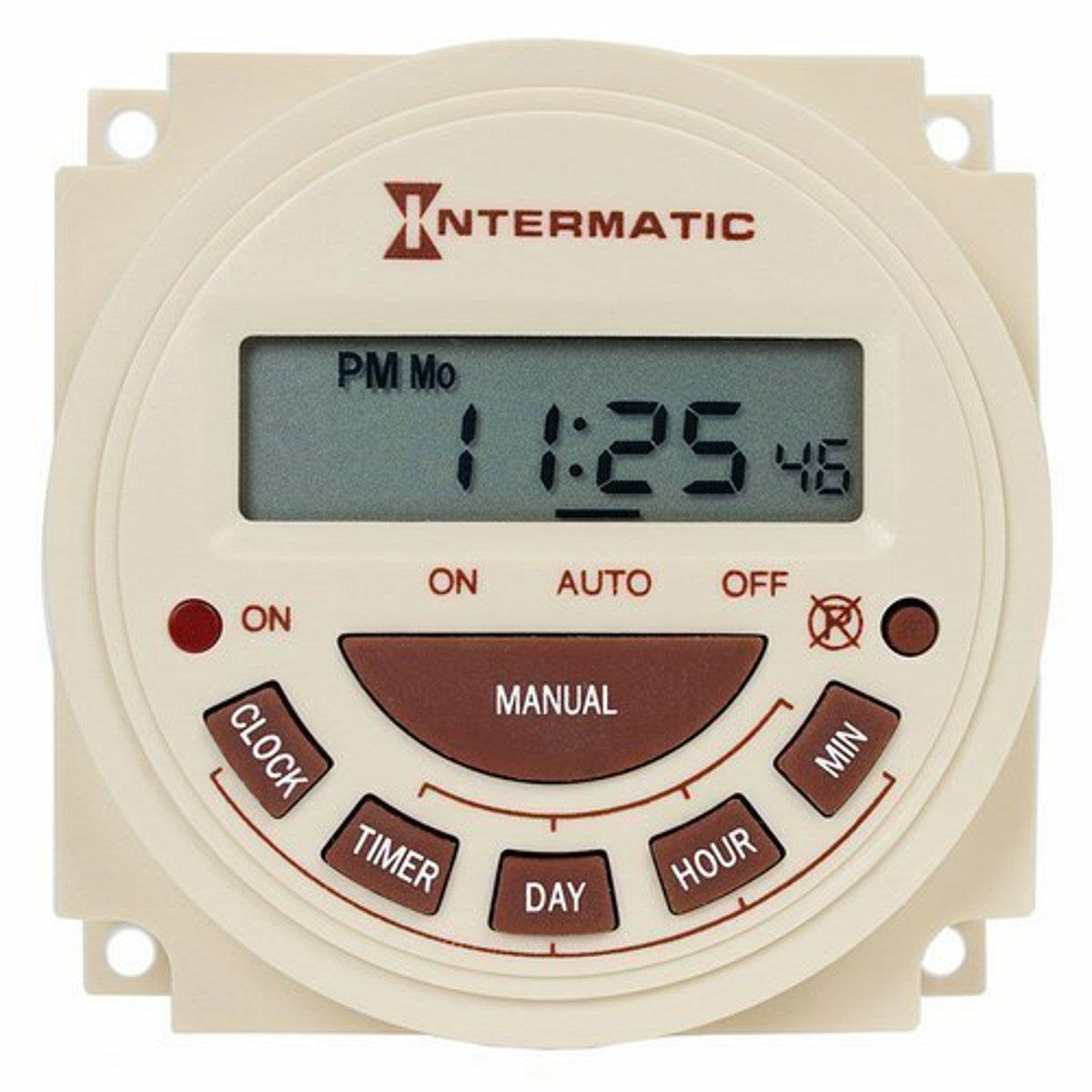

Intermatic PB374E 7-Day 240V Electronic Panel Mount Timer

Product Description

The Intermatic PB374E is a seven-day electronic panel mount timer designed for use in various applications requiring precise ON/OFF control. This timer can cycle equipment up to eight times daily. It features a robust design capable of withstanding humidity and temperature variations, making it suitable for outdoor and indoor settings.

• Cycles equipment up to eight times per day
• Suitable for pool and spa control, lighting, and heating systems
• UL Listed for safety and reliability

Product Highlights

This timer includes an indicator light to show when it is ON and allows various settings including continuous ON, OFF, or automatic operation.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: PB374E
• Manufacturer Part Number: PB374E
• Voltage Rating: 240 VAC
• Amperage Rating: 20 A
• Horsepower: 2 HP
• Mounting Type: Panel Mount
• Operation Mode: 7 Days
• Contact Form: 1 NO/SPST
• Dimensions: 2-3/8 inches H x 2-3/8 inches W x 1-1/185 inches D
• Battery Type: Lithium
• Special Features: Select feature for ON/OFF/AUTO modes; rugged construction; 5-year service life battery
• Standard: UL Listed
• Application: Pool/Spa Control, Filter Pumps, Booster Pumps, Heating Systems, Lights, Security Systems
