Product Description

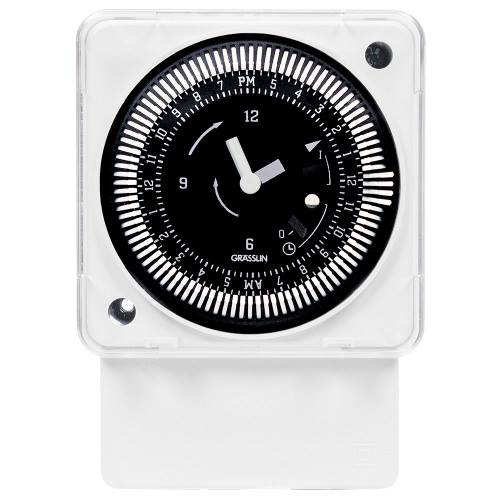

The Intermatic MIL72AQTUZH-120 is a highly efficient 24-hour electromechanical time switch, designed for precise timing and control of a variety of applications. This model is perfectly suited for surface/DIN rail or flush panel mounting within a control panel.
- Supports 120 Volt, 21 Amp applications
- Inclusive of a reliable SPDT switch
- 15-minute intervals for accurate time management
Product Highlights
This multi-functional time switch is trusted by professionals for its reliability in programming and controlling lighting, HVACR systems, and more.
Product Information
Standard Information
-
Voltage: 120 VAC
-
Switch Type: SPDT
-
Enclosure Type: NEMA 3R
Temperature Rating: Operates between -4 and 131 degrees FMounting Type: Optimized for both Surface and DIN Rail Mount
Technical Specifications
-
Dimensions: 2.83 in Length x 2.06 in Width x 4 in Height
-
Max Wire Size: 12 AWG
-
Power Consumption: 0.1 VA @ 24 VAC, 0.5 VA @ 120 VAC, 1.0 VA @ 240 VAC
-
Operating Temperature: -4 to 131 degrees F
-
Input Voltage: 120 V
