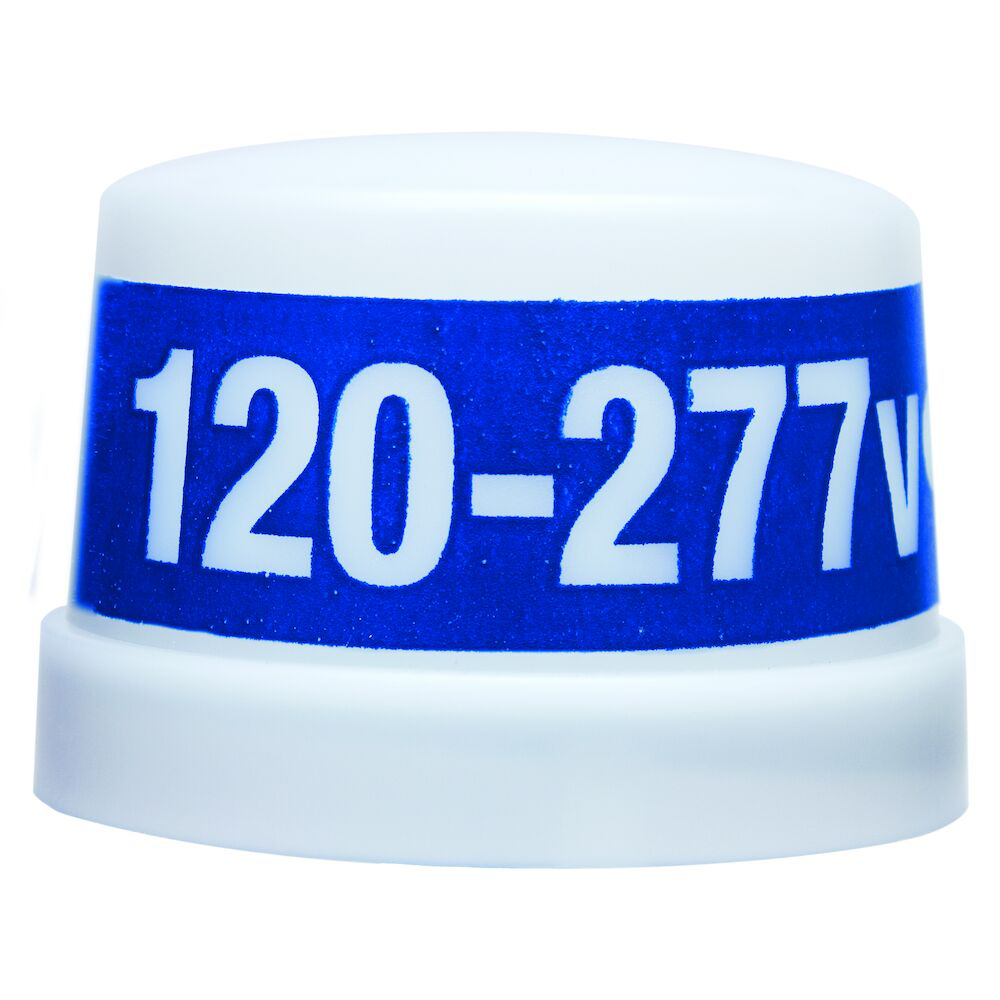

Intermatic LED4536SC 105 to 305 VAC 50/60 Hz 1000 W Locking Type Mount Electronic Photocontrol

Product Description

The Intermatic LED4536SC is a locking type mount electronic photocontrol designed for use with LED and induction fixtures. It operates between 105 and 305 VAC and is rated for 1000 W. This photocontrol is specifically engineered for a lifespan of twenty years, ensuring reliability in outdoor lighting control.

• Ideal for dusk-to-dawn lighting control
• DC relay with zero-crossing circuitry for longevity
• Non-drift silicon light sensor with IR filter

Product Highlights

This photocontrol is suitable for single or multi-fixture installations, and can handle up to 2,220 W at 277 VAC.

Product Information

Standard Information

• Catalog Number: LED4536SC
• Brand: Intermatic

Technical Specifications

• Amperage Rating: 8 A
• Ballast Load: 1800 VA
• Dimensions: 2.97 inches diameter x 2.721 inches height
• Enclosure Type: NEMA 4/10
• Environmental Conditions: -40 to 158 degrees F
• Frequency Rating: 50/60 Hz
• Operating Cycles: 15,000
• Sensor Type: Solid State Photo Sensor (Silicon IR Filter)
