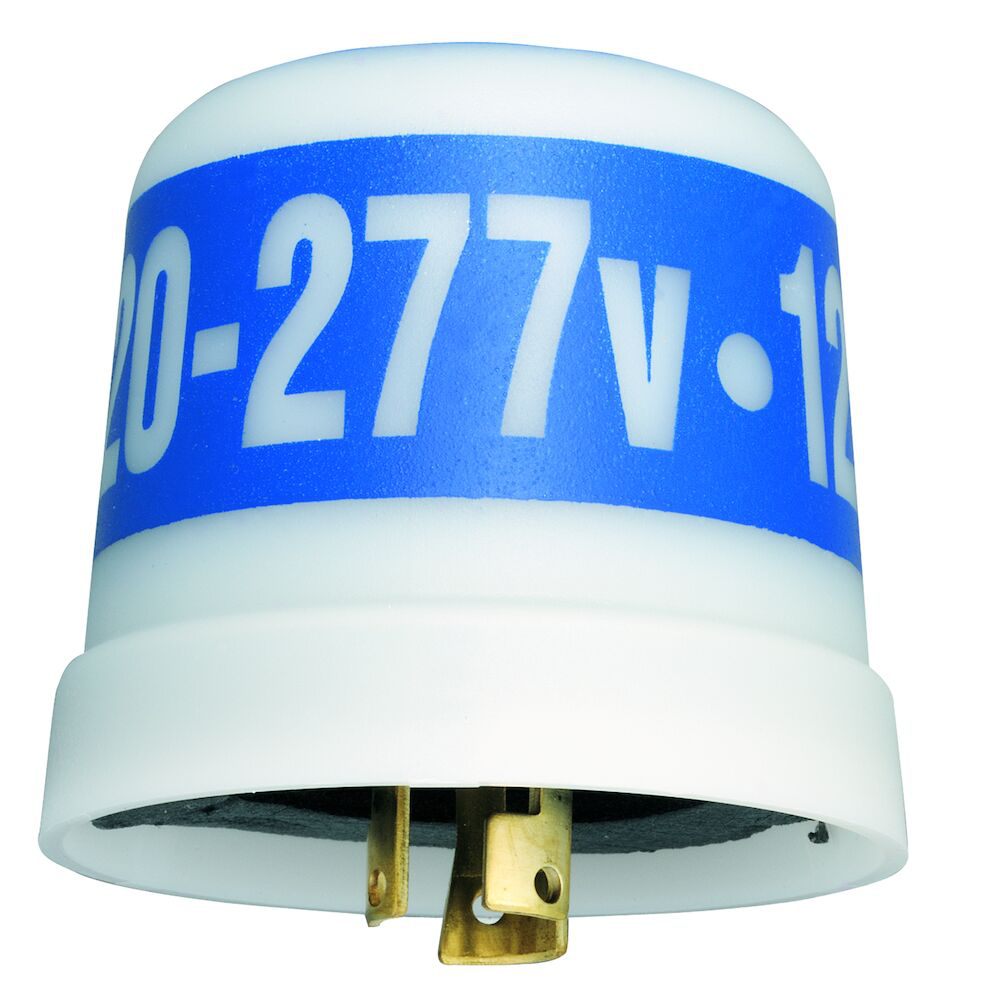

Intermatic LC4536LAC Twist-Lock Thermal Photocontrol 120 to 277 VAC

Product Description

The Intermatic LC4536LAC is a twist-lock thermal photocontrol designed for use with light fixtures equipped with ANSI C136.10 NEMA receptacles. It operates at voltages ranging from one hundred twenty to two hundred seventy-seven volts and can handle a power range of one thousand eight hundred to four thousand one hundred fifty-five watts.

• Compatible with ANSI C136.10 NEMA receptacles for street lighting.
• Features a locking design for quick and reliable installation.
• Includes a surge arrestor for added protection against voltage spikes.

Product Highlights

This unit provides dusk-to-dawn lighting control, ensuring efficient operation in outdoor settings. The delay feature prevents unintended shutoffs due to temporary light sources.

Product Information

Standard Information

• Brand: Intermatic
• MPN: LC4536LAC

Technical Specifications

• Voltage: 120 to 277 VAC
• Amperage: 15 Amp
• Power Rating: 1800 - 4155 W
• Mounting Type: Twistlock
• Frequency: 50/60 Hz
• Operating Temperature: -20 to 104 degrees F
• Material: Polypropylene
• Country of Origin: Mexico
