Intermatic LC4536C Thermal Photocontrol, 120 to 277 VAC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Twist-Lock Mount

Product Description

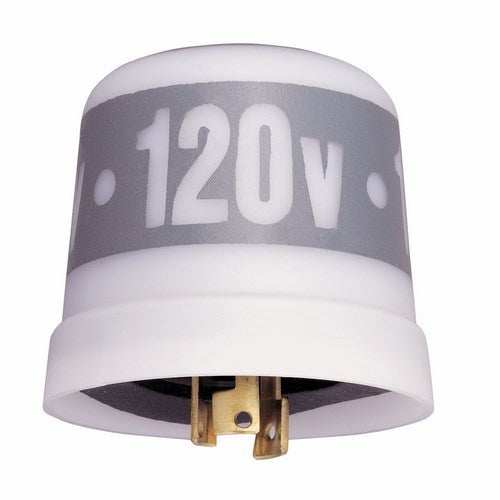

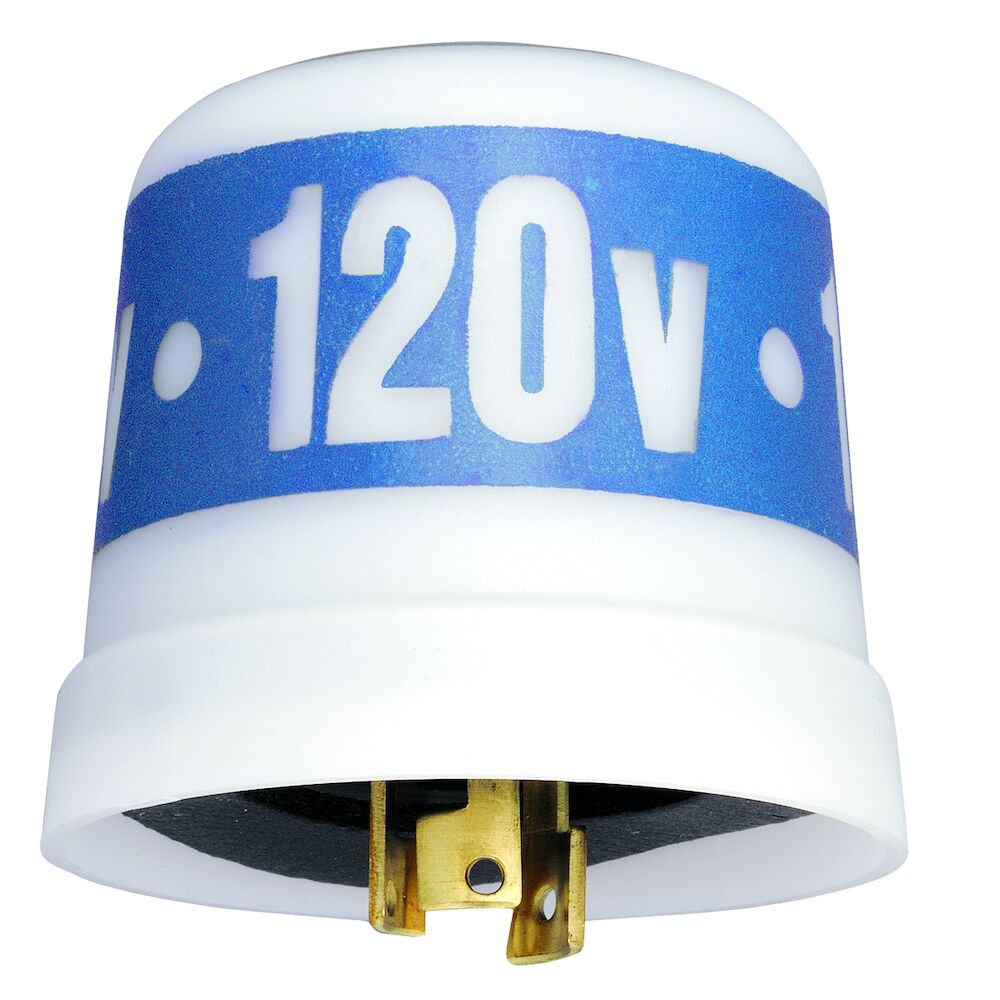

The Intermatic LC4536C thermal photocontrol operates on 120 to 277 VAC and can handle up to 15 amps. This twist-lock mounting device is suitable for various outdoor lighting applications, including street and pathway lighting. The locking design ensures quick installation and replacement.

• Rated voltage: 120 to 277 VAC
• Maximum amperage: 15 A
• Durable housing material: polypropylene

Product Highlights

This thermal photocontrol features a cadmium sulfide photocell for reliable dusk-to-dawn operation.

Product Information

Standard Information

• Type: Locking Mounting
• Color: Blue/White

Technical Specifications

• Catalog Number: LC4536C
• Amperage Rating: 15 A
• Voltage Rating: 120 to 277 VAC
• Tungsten Rating: 1800 to 4155 W
• Ballast Load: 1000 to 2290 VA
• Contact Form: SPST
• Operating Cycles: 3650
• Environmental Conditions: -20 to 104 deg F
• Sensitivity: 0.5 FC ON, 15 FC OFF
• Frequency Rating: 50/60 Hz
• Timing Range: 30 to 90 s
