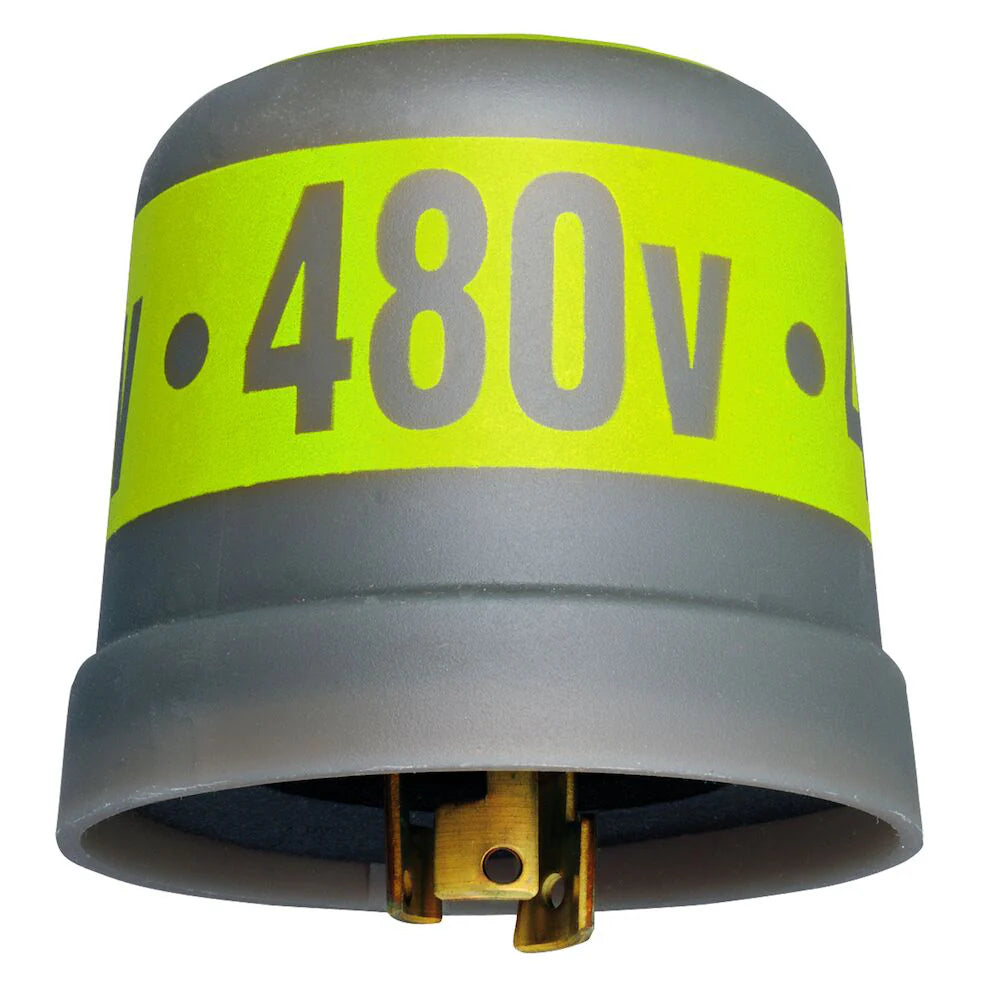

Intermatic LC4535LA 480 VAC 50/60 Hz 7200 W Twist-Lock Thermal Photocontrol with Surge Arrestor

Product Description

The Intermatic LC4535LA is a thermal photocontrol designed for use with lighting fixtures that have ANSI C136.10 NEMA receptacles, typically found in street lighting applications. This product features a twist-lock design for fast installation and replacement. It operates at 480 VAC and is suitable for both 50 Hz and 60 Hz applications.

• Installation compatible with ANSI C136.10 NEMA receptacles.
• Supports a power rating of 7200 W for tungsten loads.
• Cadmium sulfide sensor for reliable dusk-to-dawn performance.

Product Highlights

This photocontrol is designed to provide automatic switching based on natural light levels, ensuring efficient lighting control throughout the day and night. The locking type plug allows for easy setup and maintenance in outdoor settings.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc.

Technical Specifications

• Catalog Number: LC4535LA
• Voltage Rating: 480 VAC
• Operating Temperature: -29 to +40 degrees C
• Mounting Type: Twistlock Mount
• Weight: 0.2 lb
• Frequency Rating: 50/60 Hz
• Power Consumption: 1 W
• Height: 2-3/4 Inches
• Applications: Dusk to Dawn Lighting Control
