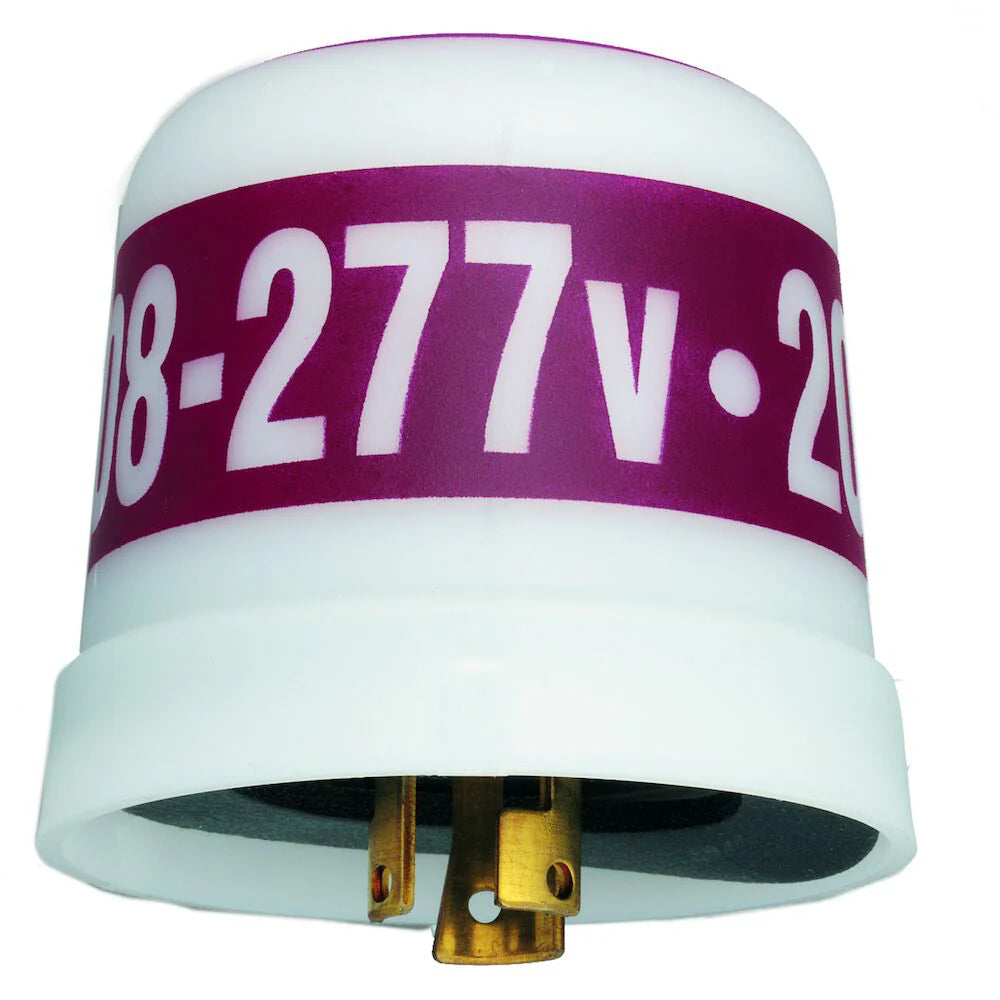

Intermatic LC4523LA Twist-Lock Thermal Photocontrol 208 to 277 VAC 50/60 Hz

Product Description

Intermatic offers the LC4523LA, a twist-lock thermal photocontrol designed for use with light fixtures featuring ANSI C136.10 NEMA receptacles, especially common in street lighting. This photocontrol simplifies the installation and replacement process with its locking type design, ensuring secure connections.

• Works with 208 to 277 VAC and 50/60 Hz
• Features a cadmium sulfide photocell for better light sensitivity
• Built for outdoor lighting control with a delay feature to avoid false switching

Product Highlights

Ideal for street lighting and outdoor applications, this thermal photocontrol regulates lighting based on ambient light levels while providing a durable locking mechanism.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LC4523LA
• Power Consumption: 1 W
• Operating Temperature: -20 to 104 degrees F
• Dimensions: 3 diameter x 2-3/4 height inches
• Mounting Type: Twistlock Mount
• Sensor Type: Cadmium Sulfide
• Frequency Rating: 50/60 Hz
• Max Operating Temperature: 158 degrees F
• Min Operating Temperature: -40 degrees C
