Intermatic LC4523 Photocontrol 208 to 277 VAC 15A

Product Description

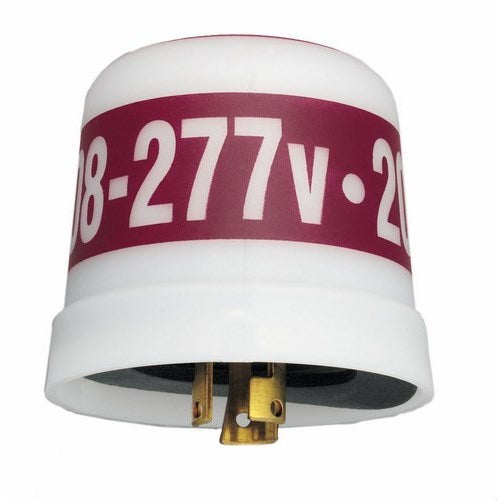

The Intermatic LC4523 is a thermal photocontrol designed for voltage ranges from two hundred eight volts to two hundred seventy-seven volts. It is suitable for use with street lighting and fixtures requiring ANSI C136.10 NEMA receptacles. This unit has a locking type design for easy installation and replacement.

• Voltage Rating: 208 to 277 VAC
• Amperage Rating: 15 A
• Operating Temperature: -20 to 104 degrees Fahrenheit

Product Highlights

This photocontrol offers dusk-to-dawn lighting control with reliability and durability.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: LC4523

Technical Specifications

• Type: Locking Mounting
• Color: Maroon/White
• Contact Form: SPST
• Cadmium Sulfide Sensor: Yes
• Timing Range: 30 to 90 seconds
• Sensitivity: 0.5 FC ON, 15 FC OFF
• Environmental Conditions: Operates from -20 to 104 degrees Fahrenheit
• Cycles: 3650 Operating Cycles
