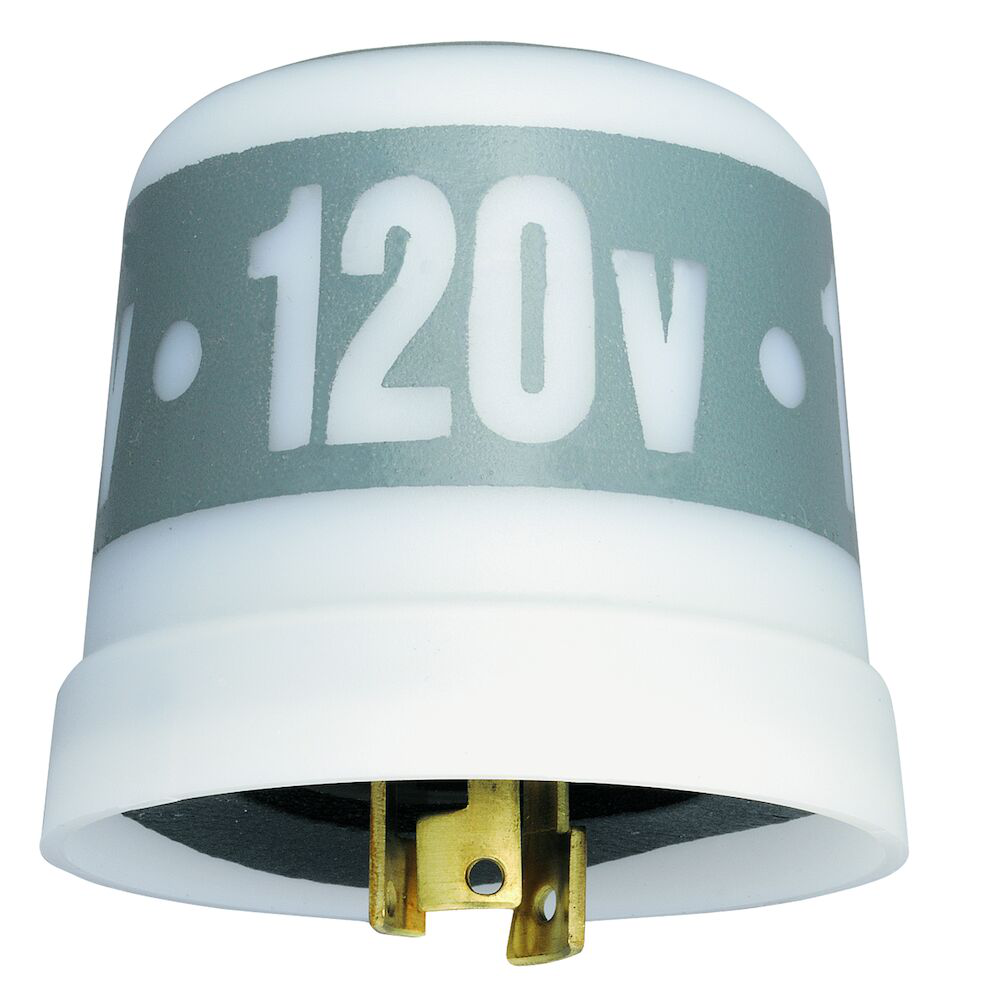

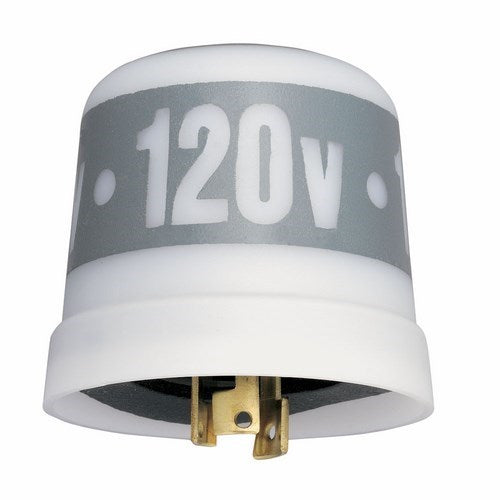

Intermatic LC4521LA Twist-Lock Thermal Photocontrol 120 VAC

Product Description

The Intermatic LC4521LA is a twist-lock thermal photocontrol designed for use with light fixtures that have ANSI C136.10 NEMA receptacles. This product is suitable for dusk to dawn lighting control and features a locking design for easy installation and replacement.

• Automatic switching with a cadmium sulfide sensor for precise operation
• Durable polypropylene housing resists moisture and environmental stress
• Tested for 3,650 ON/OFF cycles ensuring reliable performance

Product Highlights

This photocontrol can handle a power rating of 1800 watts for tungsten loads, making it ideal for street lighting and outdoor applications.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part Number: LC4521LA

Technical Specifications

• Supply Voltage: 120 VAC
• Frequency Rating: 50/60 Hz
• Operating Temperature: -20 to 104 degrees F
• Dimensions: 3 diameter x 2-3/4 height inches
• Weight: 0.251 lb
• Amperage Rating: 15 A Tungsten
• Special Features: Spark gap arrester, locking type connection
• Country of Origin: Mexico
