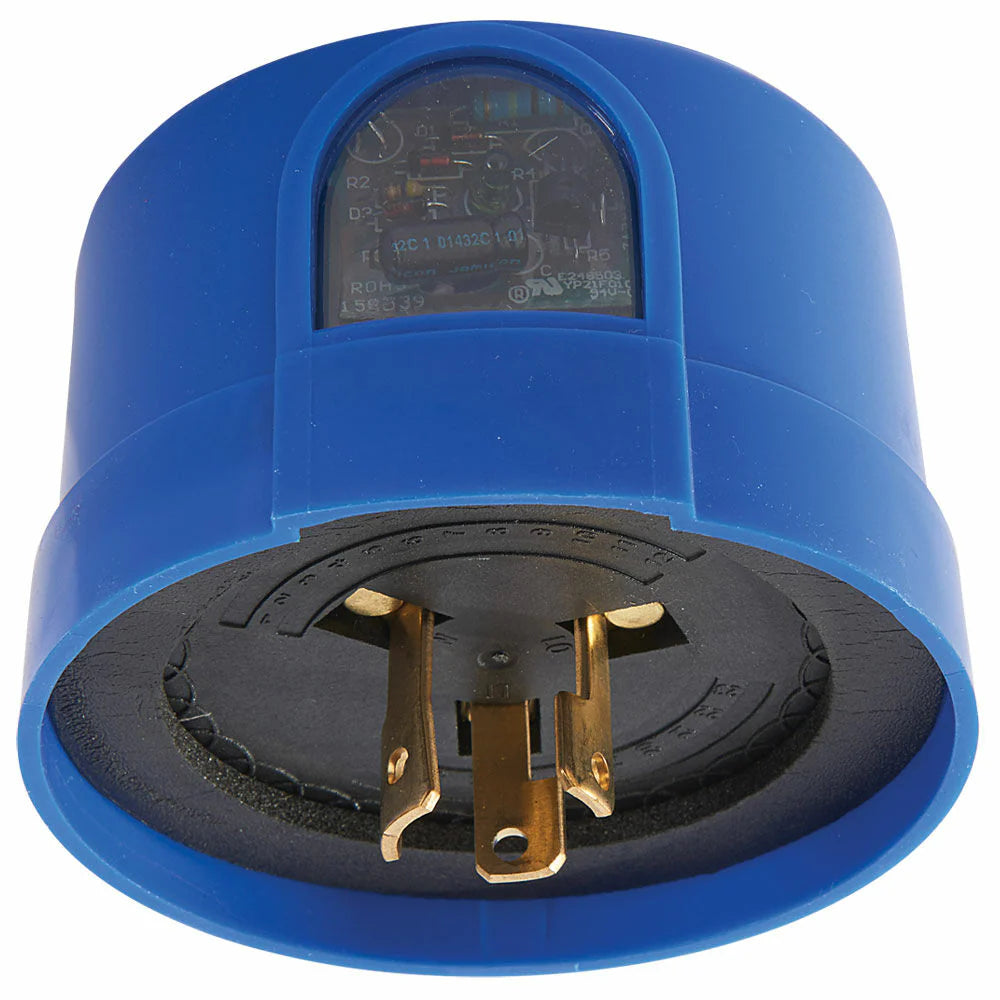

Intermatic LC2100 120 to 277 VAC 1800 W Twist-Lock Thermal Photocontrol

Product Description

The Intermatic LC2100 is a twist-lock thermal photocontrol designed for use in lighting systems that operate within a voltage range of 120 to 277 VAC. This model combines a silicon diode photosensing element with a thermal switch, making it suitable for a variety of applications including outdoor lighting controls. It is reliable, efficient, and built to withstand diverse environmental conditions.

• Mechanical bimetal switch with silicon diode photocell
• Multivoltage capability covering 120 to 277 VAC applications
• Complies with ANSI C136.10 standards

Product Highlights

The Intermatic LC2100 photocontrol is ideal for dusk to dawn lighting control, ensuring your outdoor lighting systems operate efficiently. Its durable plastic exterior is built for outdoor use and can endure temperature variations from -40 to 158 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: LC2100

Technical Specifications

• Voltage Rating: 120-277 VAC
• Power Rating: 400 mW
• Enclosure: Plastic Outdoor
• Mounting Type: Twist-Lock
• Operating Temperature: -40 Degrees F to 158 Degrees F
• Operating Cycles: 3650 cycles
• Sensor Type: Silicon
• Dimensions: 3.15 Dia x 2.60 H Inches
