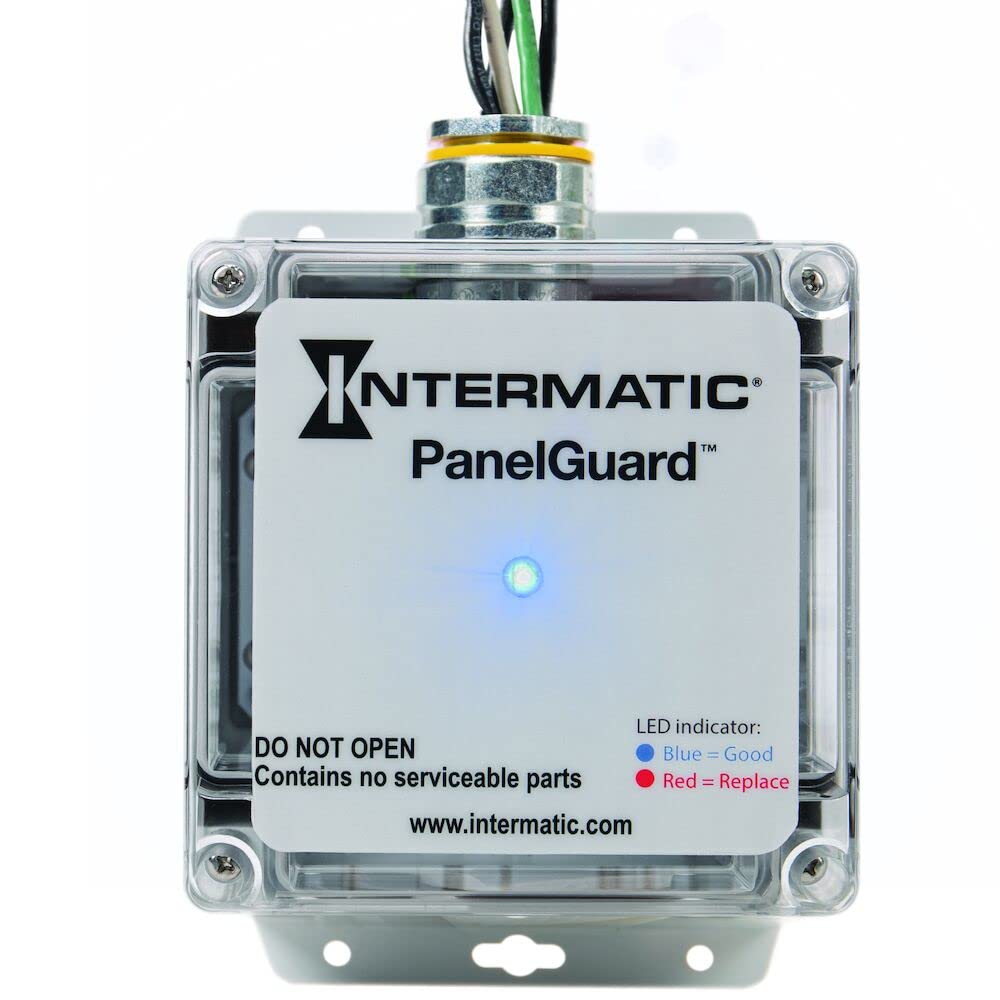

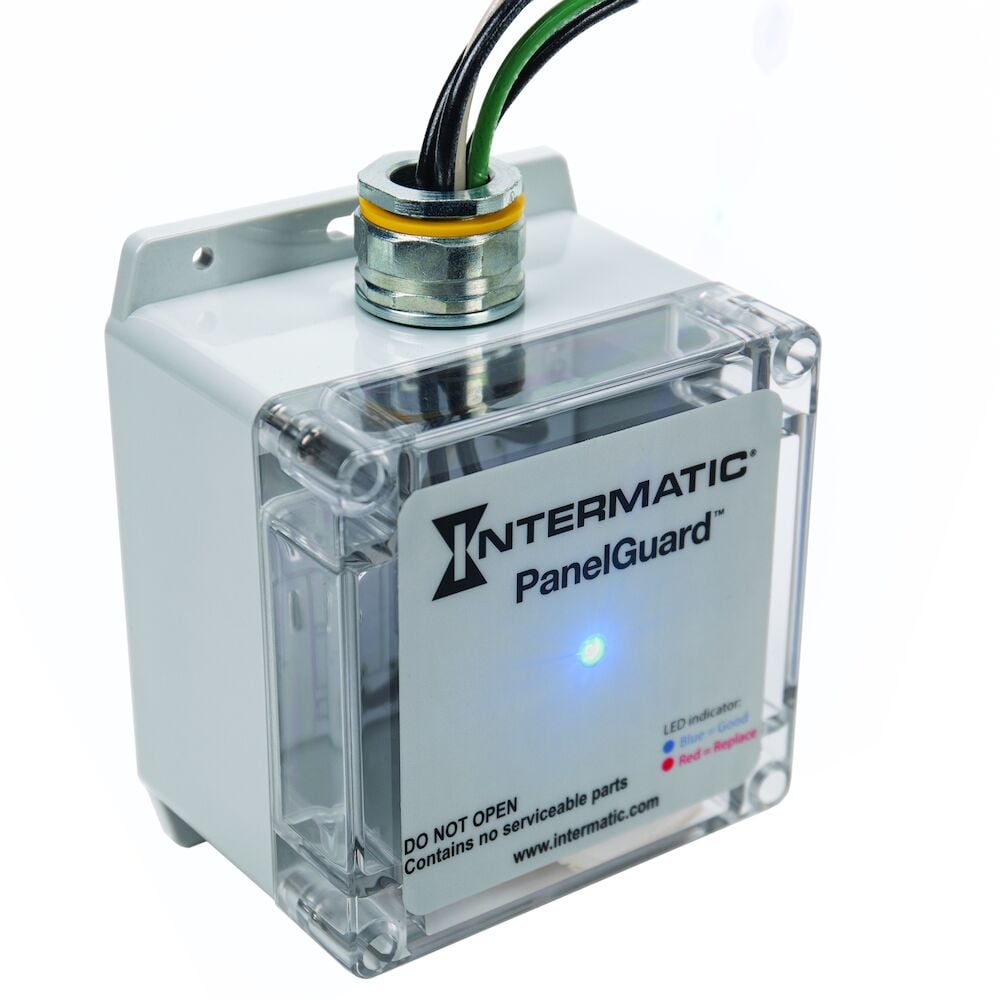

Intermatic L5F13Y1DG2 surge protective device 120/208 VAC 3Ph Y 50kA

Product Description

The Intermatic L5F13Y1DG2 Surge Protective Device is designed to quickly eliminate surges, providing optimal protection for downstream equipment. This PANELGUARD industrial/commercial-grade series is a parallel-connected device, suitable for 120/208 VAC 3-Phase Y systems. It features 4-mode operation, a 50kA surge current rating, and a NEMA 4X enclosure, making it ideal for distribution panels and service entrance locations.

• Type 1 surge protection with 4 modes of operation.
• NEMA 4X enclosure for versatile indoor or outdoor installation.
• Features an optional audible alarm and dry relay contacts for status indication.

Product Highlights

The Intermatic L5F13Y1DG2 provides robust surge protection for industrial and commercial applications, featuring a 50kA surge current rating and a durable NEMA 4X/IP65 enclosure.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: L5F13Y1DG2
• Country of Origin: USA

Technical Specifications

• Manufacturer: Intermatic, Inc
• Applications: Distribution Panel, Service Entrance
• Operating Temperature Max: 176 degrees F (80 degrees C)
• Operating Temperature Min: -40 degrees F (-40 degrees C)
• Product Type: Surge Protective Device
• Voltage Configuration: 120/208 VAC 3-Phase Y
• Protection Type: Type 1
• Surge Current Rating: 50 kA
• Operating Mode: 4-Mode
• Alarm Type: Audible Alarm
• Contact Type: Form C Contact
• Color: Gray
• Series: L5 Series
• Terminal Type: Lead Wire
• Enclosure Type: NEMA 4X/IP65
• Indicator Type: Blue/Red LED
• Number of Wires: 4+G
• Clamping Voltage: 150 V (L-N)/150 V (L-G)/300 V (L-L)/150 V (N-G)
• Frequency Rating: 50/60 Hz
• Nominal Discharge Current: 20 kA
• Short Circuit Current Rating: 200 kA
• UL Standard: ANSI/UL 1449 4th edition
• Surge Protection Technology: Individually integrated thermal disconnect technology TPMOV
• Wire Size Max: #10 AWG
• Other Certifications: 2020 National Electric Code, Article 242 (previously NEC, Art. 285), 700.10 & 708.20, ANSI/IEEE C62.72-2016, ANSI/IEEE C62.41.1, C62.41.2-2002, C62.45-2002, ANSI/IEEE C62.62-2010 environments: Categories: A, B & C, Green Energy
• RoHS Certification: Y
• Voltage Protection Rating L-G: 1200
• Voltage Protection Rating L-L: 1200
• Voltage Protection Rating L-N: 600
• Voltage Protection Rating N-G: 600
• Wire Lead Length: 18"
