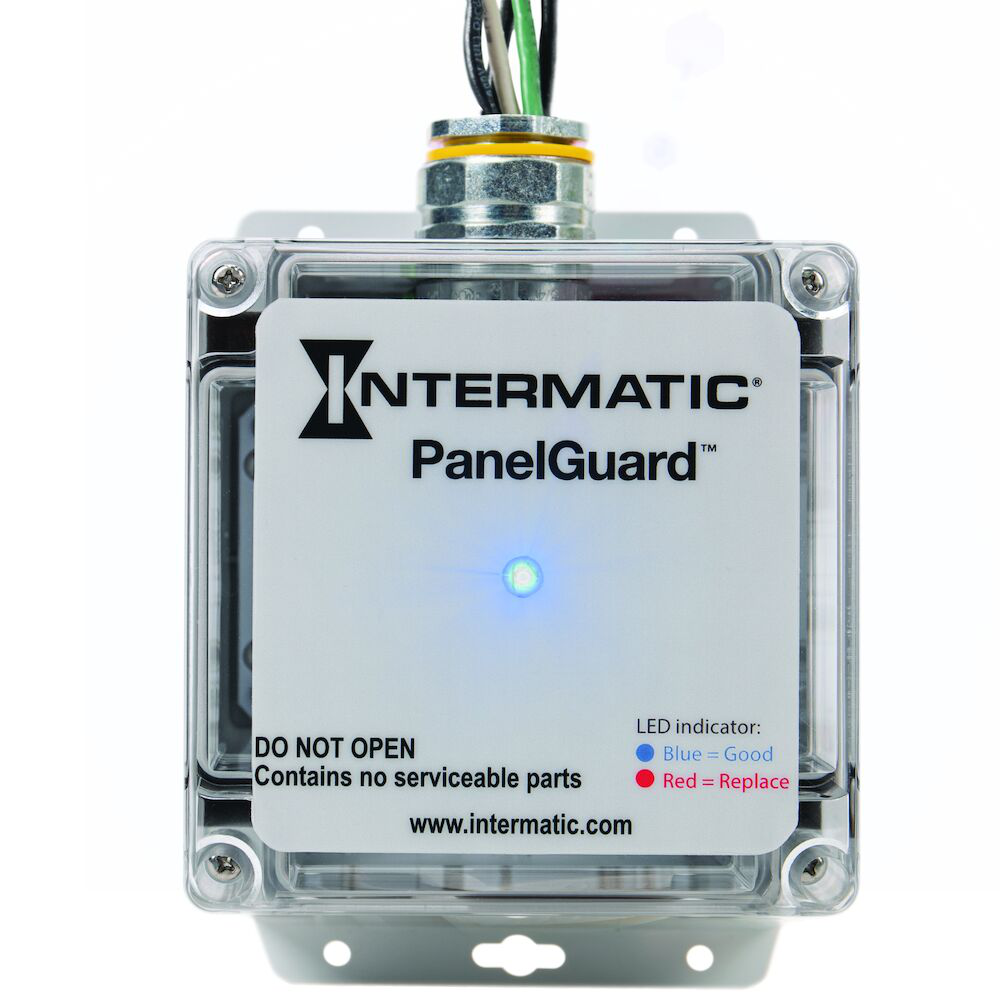

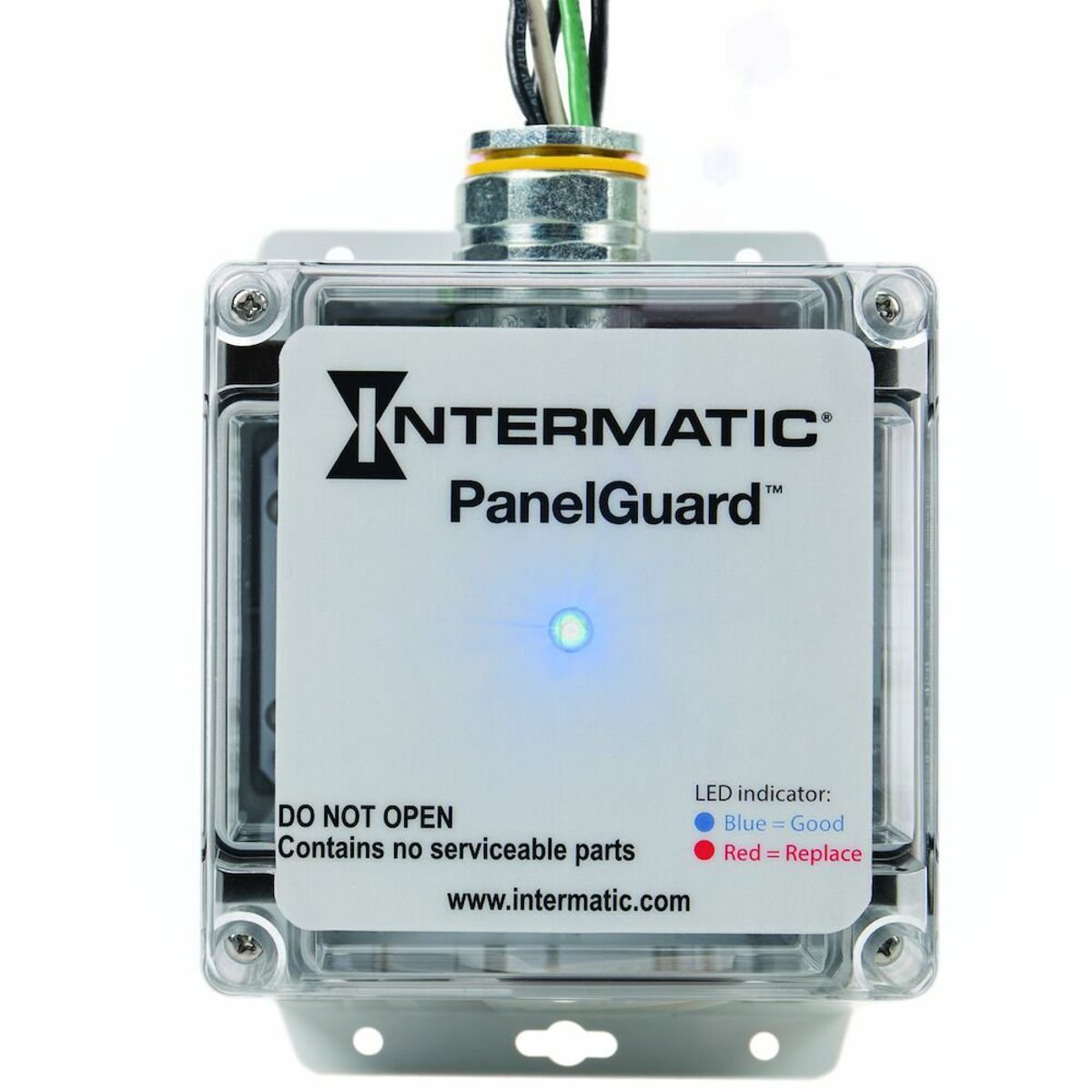

Intermatic L5F13Y1DG1 DEVICE PROT SRG 120/208 WYE V 50/60HZ 3

Product Description

The Intermatic Surge Protective Device, MPN: L5F13Y1DG1, offers essential protection for electrical systems against surges. This device is suitable for commercial and industrial applications, protecting equipment from potentially harmful voltage spikes. It features a three-phase configuration operating with a voltage rating of 120/208 and is compliant with various safety standards.

• Type 1 surge protection
• Built to withstand extreme environmental conditions
• Four modes of protection including L-N, L-G, L-L, and N-G

Product Highlights

The device delivers reliable surge protection with a peak surge current of fifty kA and a short circuit rating of two hundred kA. It is designed for use in electrical distribution panels, motor control systems, and as service entrance protection for HVAC equipment.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: L5F13Y1DG1

Technical Specifications

• Electrical Ratings: 120/208 Wye V
• Frequency Rating: 50/60 Hz
• Clamping Voltage: 150 V (L-N)/150 V (L-G)/300 V (L-L)/150 V (N-G)
• Nominal Discharge Current: 20 kA
• Peak Surge Current: 50 kA
• Short Circuit Current Rating: 200 kA
• Environmental Conditions: -40 to 176 deg F
• Dimensions: 4.81 in W x 3.54 in D x 6.46 in H
• Number of Wires: 4+G
• Indicator Type: Blue/Red LED
