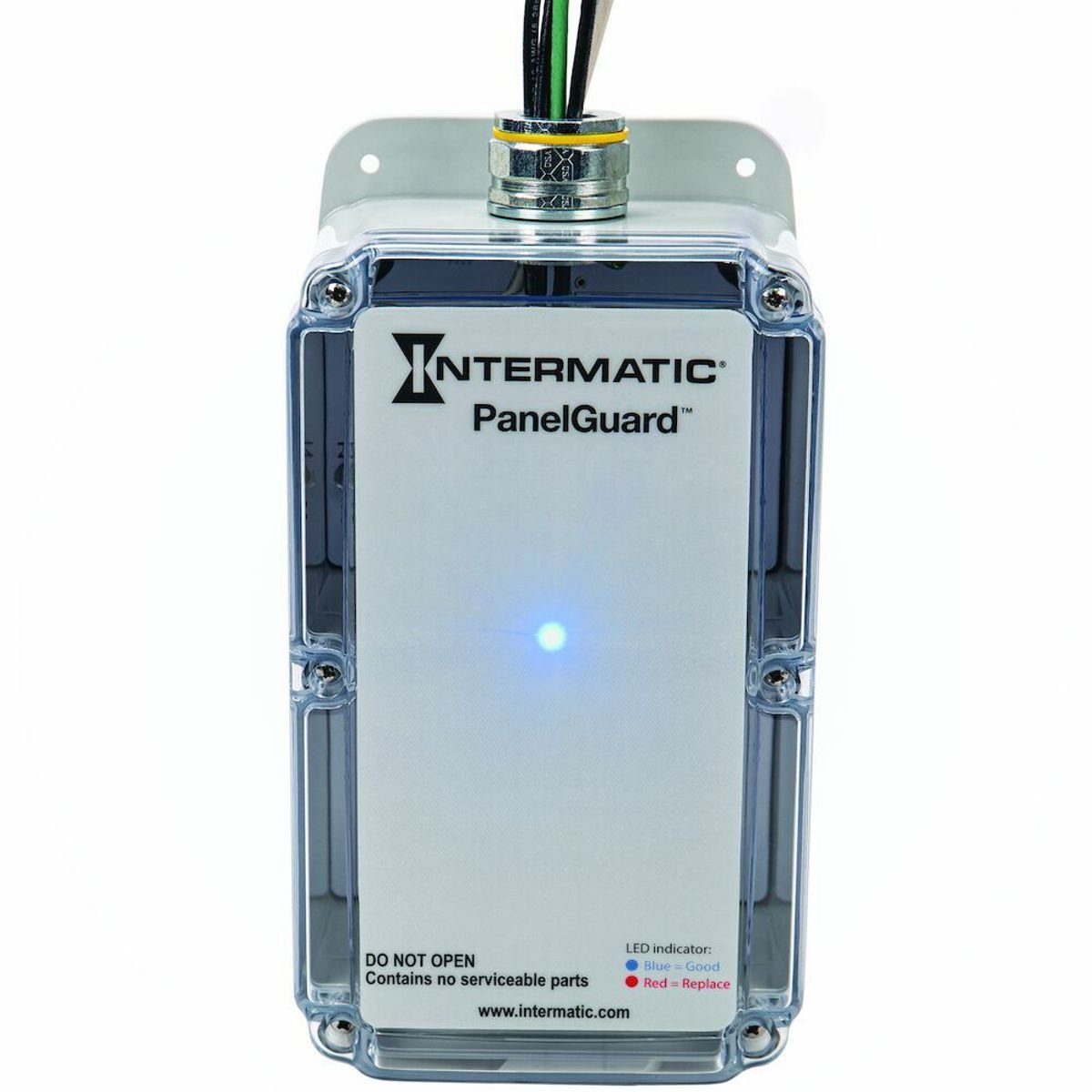

Intermatic L10F13Y1DG1 DEVICE PROT SRG 120/208 WYE V 50/60HZ 3

Product Description

The Intermatic L10F13Y1DG1 is a reliable surge protective device designed for commercial and industrial use. This unit provides essential surge protection for electrical distribution systems and equipment operating at one hundred twenty to two hundred eight volts. It features a clamping voltage of one hundred fifty volts and a peak surge current capacity of one hundred kA.

• Type 1 surge protection
• NEMA 4X/IP65 rated enclosure
• Optional audible alarm with relay contacts

Product Highlights

This surge protector is capable of managing four modes of protection, making it suitable for various applications. Its environmental rating of negative forty to one hundred seventy-six degrees Fahrenheit allows for use in adverse conditions.

Product Information

Standard Information

• Manufacturer: INTERMATIC
• Part Number: L10F13Y1DG1

Technical Specifications

• Electrical Ratings: 120/208 Wye V
• Frequency Rating: 50/60 Hz
• Clamping Voltage: 150 V (L-N)/150 V (L-G)/300 V (L-L)/150 V (N-G)
• Modes of Protection: L-G/L-L/L-N/N-G
• Short Circuit Rating: 200 kA
• Peak Surge Current: 100 kA
• Dimensions: 5.25 in W x 3.29 in D x 10.59 in H
• Environmental Conditions: -40 to 176 deg F
• Enclosure Type: NEMA 4X/IP65
• Lead Terminal Type: Lead Wire
