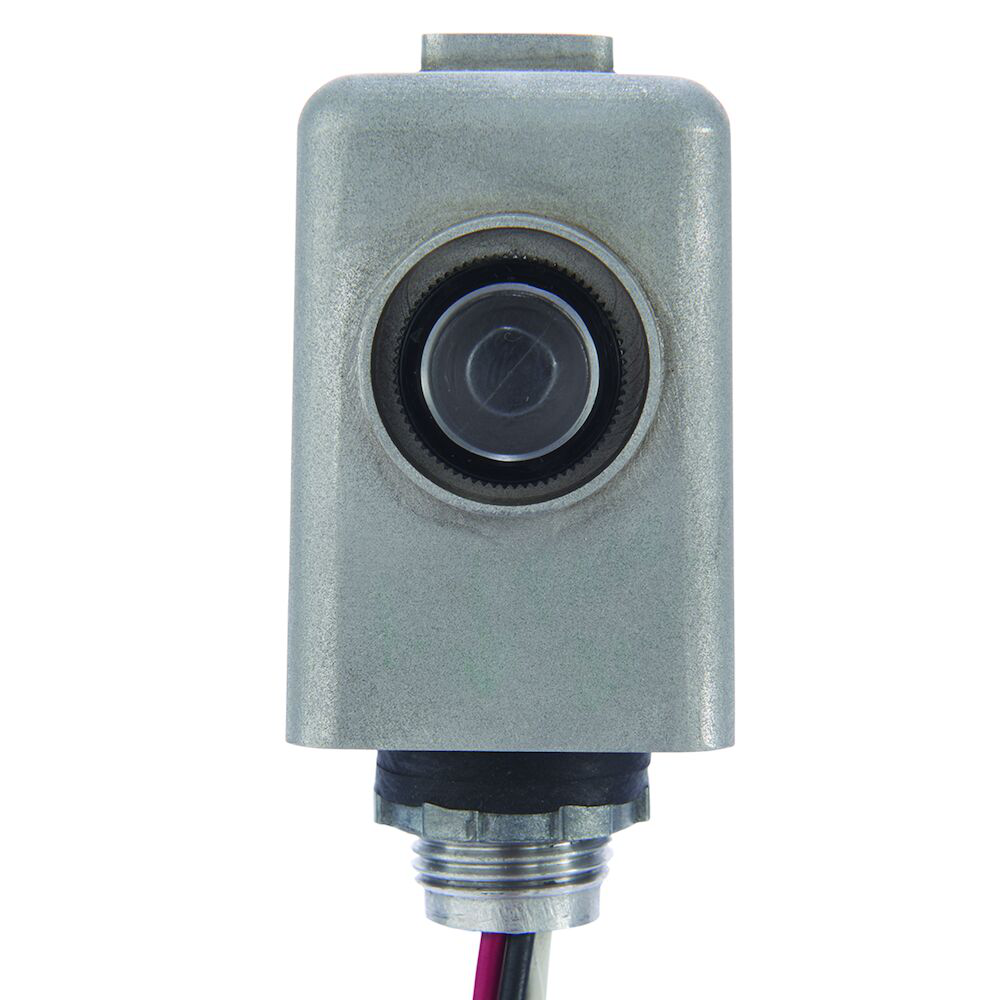

Intermatic K4423M 208 to 277 VAC 50/60 Hz 3100 to 4150 W Stem Mount Thermal Photocontrol

Product Description

The Intermatic K4423M is a thermal photocontrol for outdoor lighting. It operates at 208 to 277 VAC and is designed to control dusk-to-dawn lighting operations. This product mounts easily on standard outdoor light fixtures and electrical boxes with a one-half inch NPSM threaded stem or seven-eighths inch punch-out holes.

• Durable die-cast metal housing
• Delay feature to prevent unwanted ON/OFF switching
• Suitable for applications including street lighting and landscape lighting

Product Highlights

This product provides reliable control of outdoor lighting, using a cadmium sulfide photocell to detect ambient light levels for effective usage.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: K4423M
• Voltage Rating: 208 - 277 VAC
• Amperage Rating: 15/8.3 A
• Power Consumption: 1 W
• Wire Length: 9 inches
• Operating Temperature: -40 to +158 degrees F
• Weight: 0.439 lb
• Mounting Type: Stem Mount
• Connection Type: Color Coded Lead
• Sensor Type: Thermal Type Photo Control
• Approval: UL Recognized, CSA
