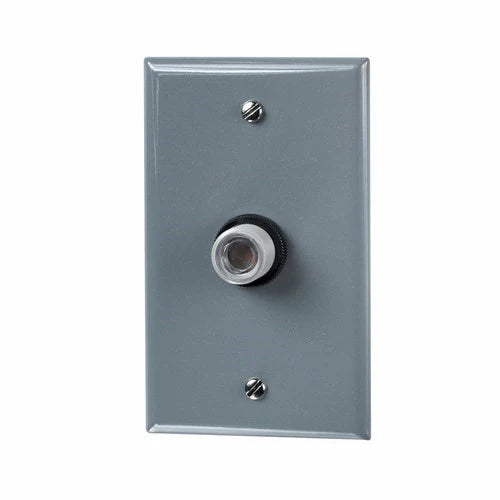

Intermatic K4321C Photocontrol Thrm 120VAC 1800W 1000VA

Product Description

The Intermatic K4321C Photocontrol is designed for automatic switching in wall-mounted applications. This thermal photocontrol operates at 120 volts and is rated for up to 1800 watts of tungsten or 1000 VA for ballasts. The product includes a fixed mounting design compatible with outdoor lighting fixtures for reliable dusk-to-dawn operation.

• Designed for wall-mounted installations.
• Durable polycarbonate housing with weatherproof wall plate.
• Cadmium sulfide photocell ensures consistent performance.

Product Highlights

This photocontrol features a delay function that prevents unwanted switching due to transient light sources such as vehicle headlights or lightning, making it ideal for outdoor lighting controls.

Product Information

Standard Information

• MPN: K4321C
• Brand: Intermatic

Technical Specifications

• Type: Automatic Switching In-Wall
• Color: Gray
• Series: K4000
• Voltage Rating: 120 VAC
• Amperage Rating: 8.3 A
• Tungsten Rating: 1800 W
• Ballast Load: 1000 VA
• Dimensions: 1-13/16 in L x 1-5/16 in W x 1-9/16 in D
• Enclosure Type: NEMA 3R
• Operating Temperature: -40 to 158 degrees F
• Sensitivity: 1-5 FC On / 3-15 FC Off
• Wire Size: 18 AWG
• Weight: 0.36 lb
